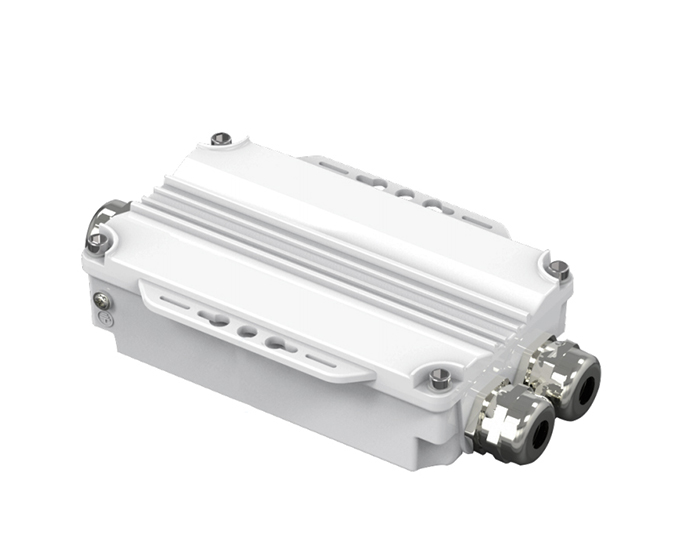

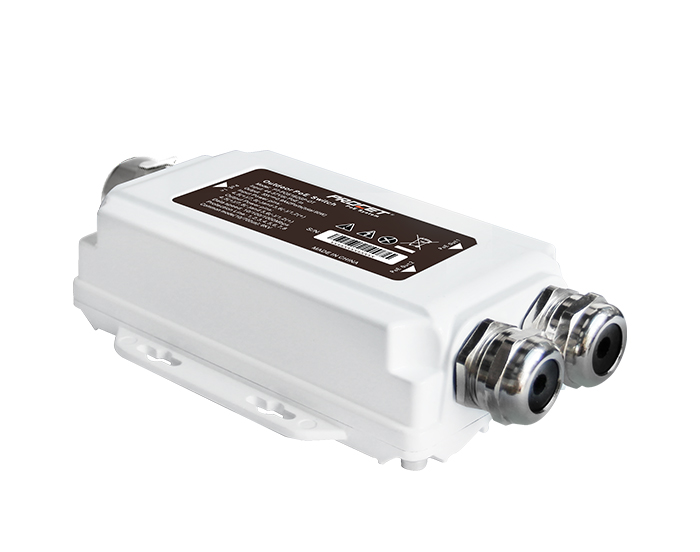

PT-PSE108GBR-OT-DE is an outdoor rated PoE injector/midspan specially designed for exterior, complex back_x0002_haul and networking applications. Enclosed in an IP67 Reflective Aluminum alloy case with a sealing that gasket passes tension, bearing, corrosion,and aging test for IP67 applications
After negotiating 802.3bt standard PD, the single PoE output port delivers 55Vdc, 1.75A up to 95W power with 6KV surge protection for remote PDs over full 4 Pair at 10/100/1000Mbps data rates. It works with a wide input voltage of 12-55Vdc and operates under -40℃ to +65℃. It fully complies with IEEE802.3bt and backward compatible to IEEE 802.3af/at PoE standard, such as IP Cameras, wireless APs, Microwave radio, IoT application and other PoE++ power PoE devices.

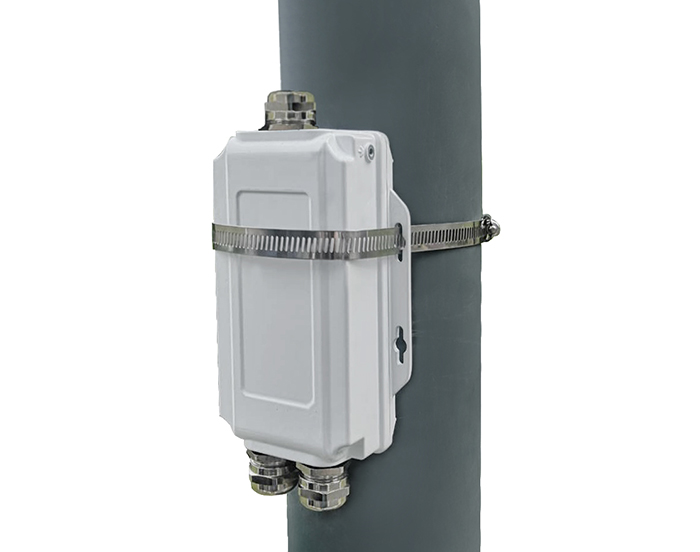

For planning purposes, the effective distance is 100 meters over Cat5e/Cat6 cables. Easily to install with mounting holes, no need to open the equipment. With Stainless Steel Cable ties can be fixed on a Pole.
Specifications
| Parameter | Description |
| Key Features | Outdoor PoE Midspan/Injector 12-55Vdc input make it possible for solar application Fixed 55Vdc output Boost PoE Surge Protection for PoE Port Gigabit data rates Waterproof Aluminum Alloy housing,IP67 Extend temperature from -40℃ to 65℃ Diagnostic LEDs Equipped 802.3bt detecting chip |
| Part Number | PT-PSE108GBR-OT-DE |
| Ports condition | LAN Input Port*1, AC Input Port*1, PoE Output Port*1 |
| Regulatory Compliance | IEEE802.3bt RoHS Compliance WEEE Compliance |
| Pass Through Data Rates | 10/100/1000 Mbps |
| Output | Pin Assignment and Polarity: 4/5(+), 7/8(-) and 3/6(+),1/2(-) Output Power Voltage: 55Vdc User Port Power: 95W Guaranteen |
| Input | DC Input Voltage: 12 to 55Vdc DC Input Current: 8.0A |
| Working Environment | Operating Temperature: -40℃ to 65℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -40℃ to 85℃ Storage Humidity: 10% to 95%, non-condensation Operating Altitude: up to 5000meters |
| PoE Surge Protection | Protected line: 1,2,3,4,5,6,7,8 Common mode surge protection(10/700us): 6KV Differential mode surge protection (10/700us): 1.5KV |
| Mechanical Characteristics | Case: Aluminum Alloy Color: White Mounting:Wall-mounted/Pole-mounted IP Rated: IP67 Connectors: Shielded RJ-45*2 Size: 187 X 104.79 X 45mm Weight:565g（1.25lb） |
