PT-PSE118GBR-OT-10 IP67 Waterproof 10G AC to 802.3bt PoE++ Injector for outdoor application

Durable PoE Injector for Outdoor Applications

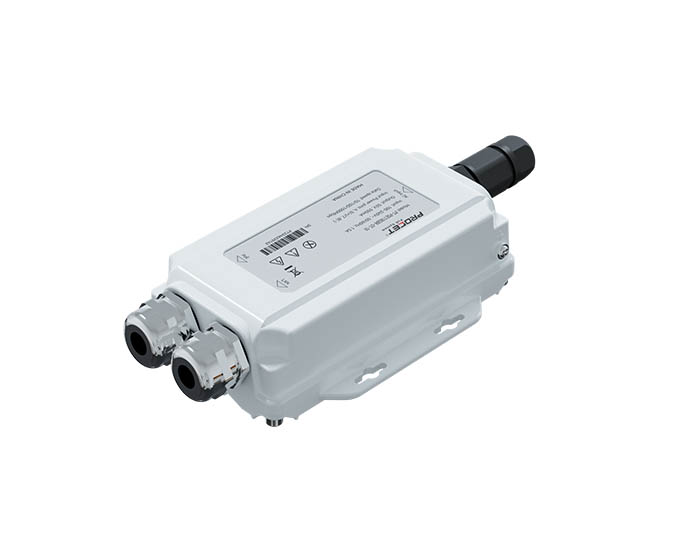

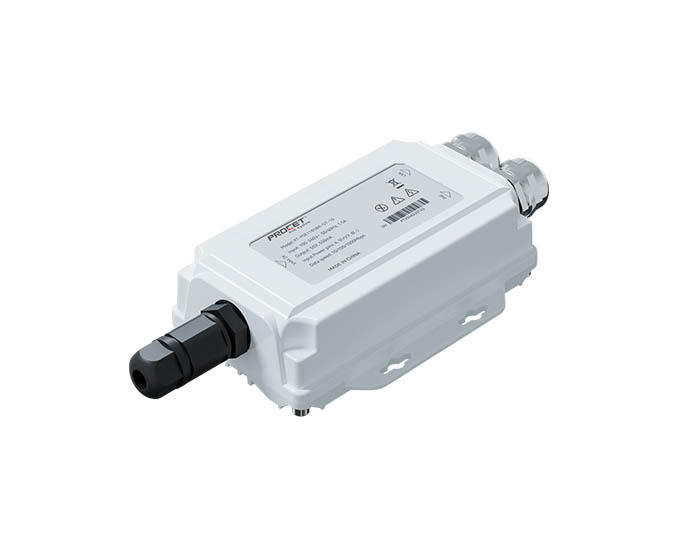

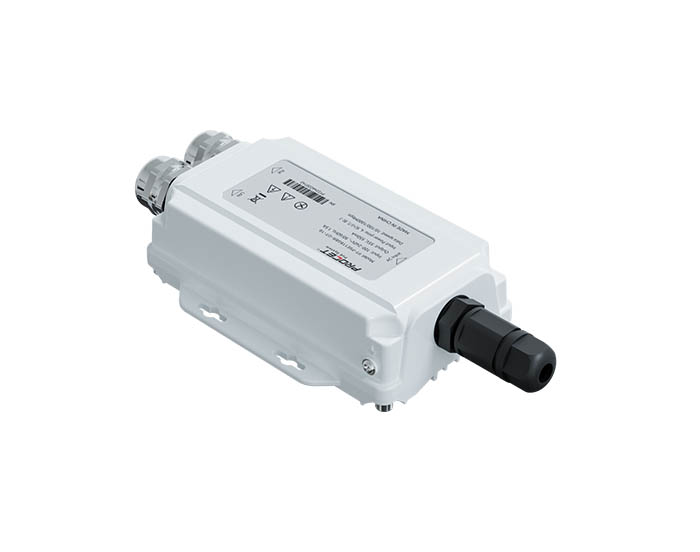

The PT-PSE118GBR-OT-10 is a rugged outdoor PoE injector designed for demanding environments. Its IP67-rated aluminum alloy housing with waterproof metal cable glands ensures exceptional protection against water, dust, and corrosion. With reliable operation in a wide temperature range of -40°C to 50°C, it is built to deliver consistent performance even in extreme weather conditions.


60W PoE Power with 802.3bt Standard

Compliant with the IEEE802.3bt standard, this model provides up to 60W of high-power output at 55VDC and 1100mA, making it ideal for powering high-consumption devices such as PTZ cameras, digital displays, and wireless access points. Supporting 2.5G/5G/10G data speeds, it ensures seamless connectivity and efficient power delivery over distances of up to 100 meters.


Advanced Surge and EMC Protection

The PT-PSE118GBR-OT-10 is equipped with 6KV common mode and 1.5KV differential mode surge protection, safeguarding connected devices against voltage spikes and surges. Its compliance with EN55032 EMC standards guarantees strong electromagnetic immunity, ensuring safe and stable operation for outdoor network installations.


  • Specifications
  • Support & Dowload
  • Gallery
  • Test Results
  • Standing Stock

Specifications

Key FeaturesIP67 Waterproof and Dustproof: Durable aluminum alloy housing with metal cable glands for outdoor use.
Wide Temperature Range: Reliable performance from -40°C to 50°C, with full-load startup at -40°C.
High-Speed Data Transmission: Supports 1G/2.5G/5G/10GbE
PoE Power Compatibility: Provides up to 30W output for IEEE802.3bt PD devices like wireless access points, PTZ cameras, and digital displays.
Advanced Surge Protection: 6KV common mode and 1.5KV differential mode surge protection for stable operation.

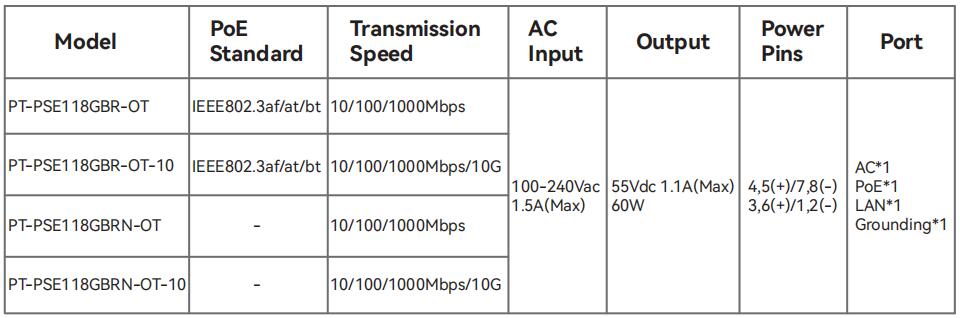

Part NumberPT-PSE118GBR-OT-10
Ports conditionPoE Port*1, AC Input Screw Terminal Connector *1, LAN Port *1
Regulatory ComplianceIEEE802.3bt
RoHS Compliance
WEEE Compliance
Pass Through Data Rates 10/100/1000 Mbps & 2.5/5/10GbE
OutputPin Assignment and Polarity:
4/5 (+), 7/8 (–) & 3/6(+),1/2(-)
Output Power Voltage: 55Vdc/1.1A
User Port Power: 60W Guaranteen
InputAC Input Voltage:100 to 240Vac 1.5A
Frequency: 50/60Hz Typ
Working EnvironmentOperating Temperature:  55Vdc  1.1A(Max)  60W     @50℃
                                    55Vdc  0.82A        45W     @55℃
                                    55Vdc  0.55A        30W     @65℃
Operating Humidity: 20% to 90%, non-condensation
Storage Temperature: -40℃ to 85℃
Storage Humidity: 10% to 95%, non-condensation
Operating Altitude: up to 2000meters
PoE Surge ProtectionProtected line: 1,2,3,4,5,6,7,8
Common mode surge protection(10/700us): 6KV
Differential mode surge protection (10/700us): 1.5KV
AC Surge ProtectionLine-Earth 1.2/50us (8/20us): 6KV
Line-Line 1.2/50us (8/20us): 4KV

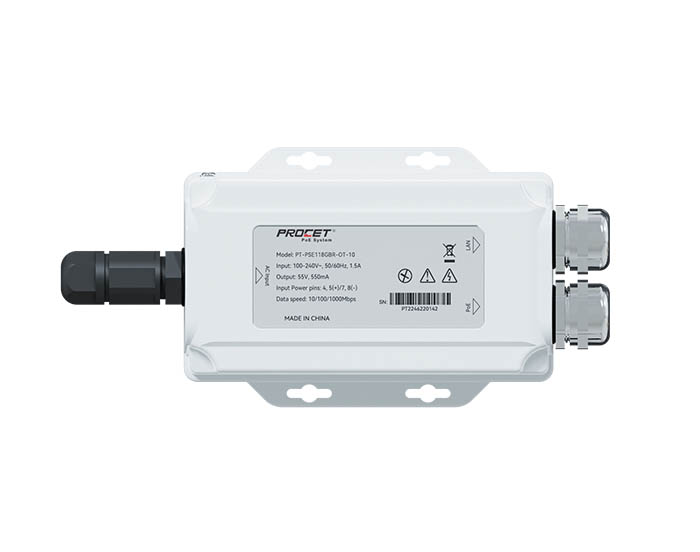

Mechanical CharacteristicsCase: Aluminum Alloy
Color: White
Mounting: Pole Mounted/Wall Mounted
IP Rated: IP67
Connectors: Shielded RJ-45*2
Size: 211mm X 101mm X 42mm
Weight: 0.625kg(1.38lb)
Safety ApprovalsCE, FCC
