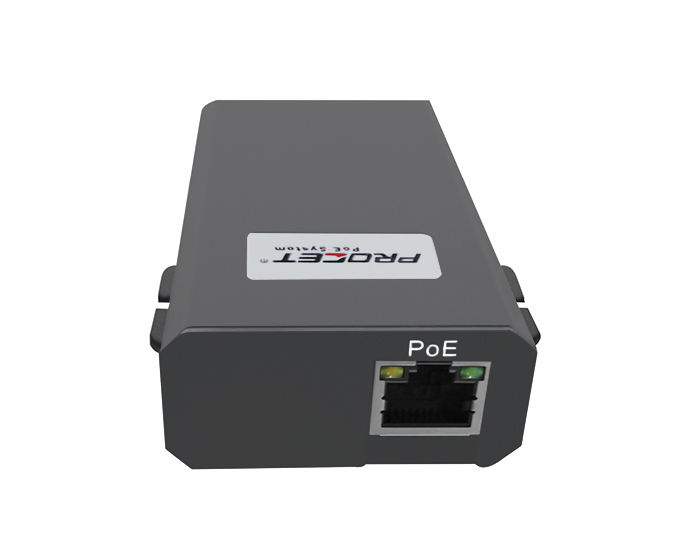

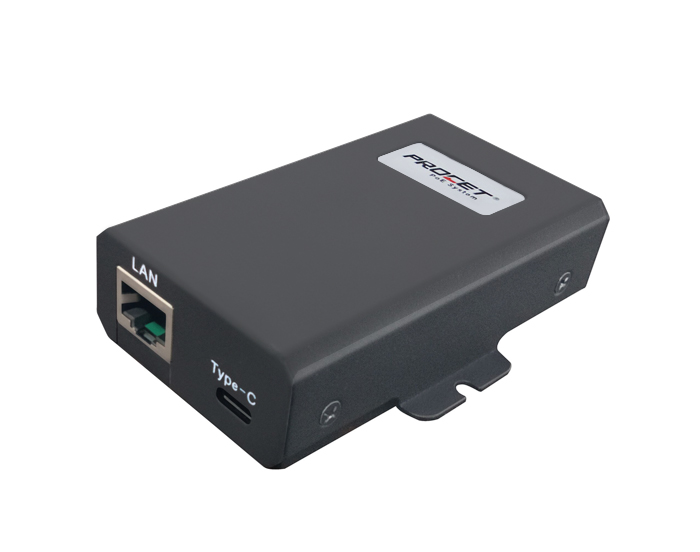

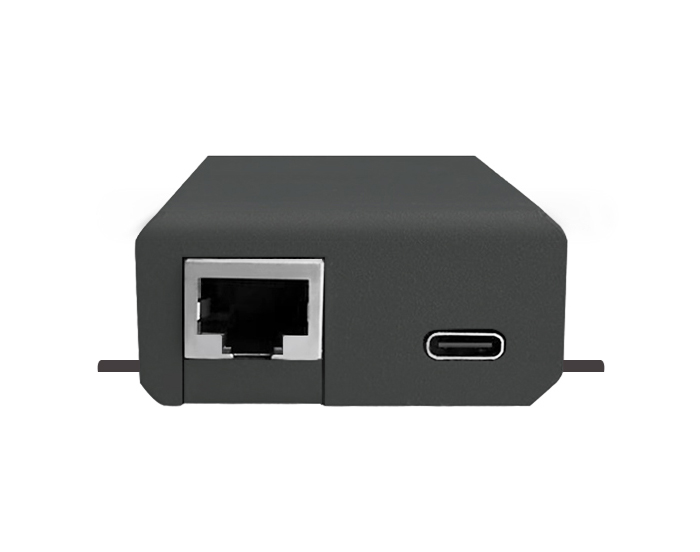

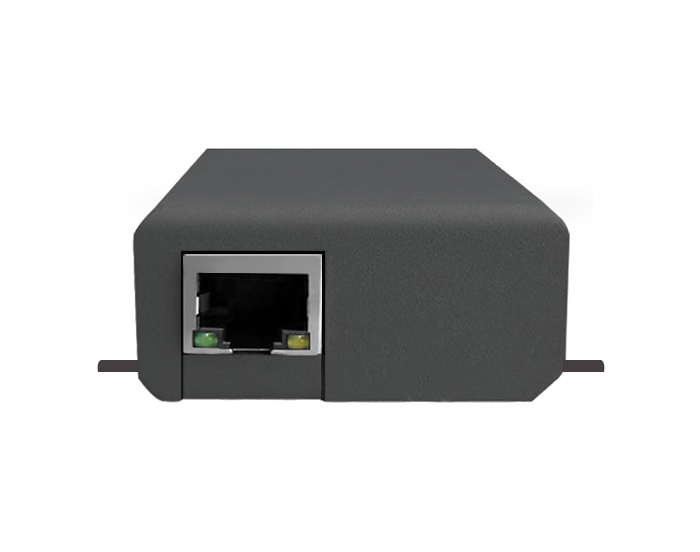

PT-PTC-BT is an USB-C PoE Splitter rated networking converter, special convert power&data from PoE to USB-C devices.It is with 1 PoE port for 802.3bt standard input and 1 USB-C port for power output and 1 RJ45 port for data output.
Designed only works for indoor environment, The dataspeed is 10/100/1000Mbps (Gigabit).This converter ouput total 50W for USB-C PDs, and the voltage output from 5V-20V base on the required of your USB-C PDs. It is designed with OVP,OCP, SCP, then worked safty for the USB-C PDs, such as computers, IPad,Macbook, Google Wifi etc.
Enclosed in an IP40 reflective metal case, designed to be powered from the IEEE802.3bt PoE switch or PoE injector. The standard effective distance is 100m from PoE switch or injector to USB-C converter over Cat5/5e/6 cables. with small size, bright, and easy to pair with nearly everything else.
Specifications
| Parameter | Description |
| Key Features | USB-C PoE Splitter（USB C PoE adapter)for USB-C devices |
| Part Number | PT-PTC-BT |
| Ports condition | PoE input port*1, RJ45 Data output port*1, USBC power output port*1 |
| Regulatory Compliance | IEEE802.3af/at/bt RoHS Compliance WEEE Compliance |
| Pass Through Data Rates | 10/100/1000 Mbps |
| Output | Pin Assignment and Polarity: 3/6(+), 1/2(-), 4/5(+), 7/8(-) Output Power Voltage: 5V-20V User Port Power total:60W |
| Input | 44-57Vdc IEEE802.3bt |
| Working Environment | Operating Temperature: 0℃ to 40℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -20℃ to 70℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 2000meters |
| Mechanical Characteristics | Case: Metal Color: Black IP Rated: IP40 Size: 91 X 51.11 X 24.11mm Weight: 142g（0.31lb） |
| LED Indicator | PoE input indicator: Green USB-C output indicator: Yellow |
Certificates | CE |
Install Video
Standing Stock
| Product Order Info.(Model) | PT-PTC-BT |
| Stock Quantity | 100PCS |
| Warehouse Location | Dongguan China |
| Sample Delivery Time | Within 24H |
| Bulk Stock Delivery Time | Within 48H |
| Shipping Way | DHL,UPS,FedEx,TNT, By SEA/AIR Customer Nominated Forwarder |
| Packing Size | Qty: 20pcs/carton Volume: 0.031 m³ Packing: Export Carton Pallet size: 110 x 110cm |
