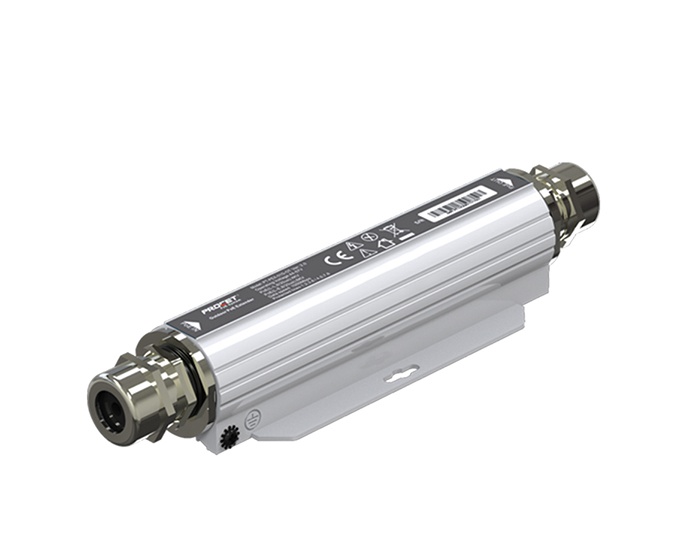

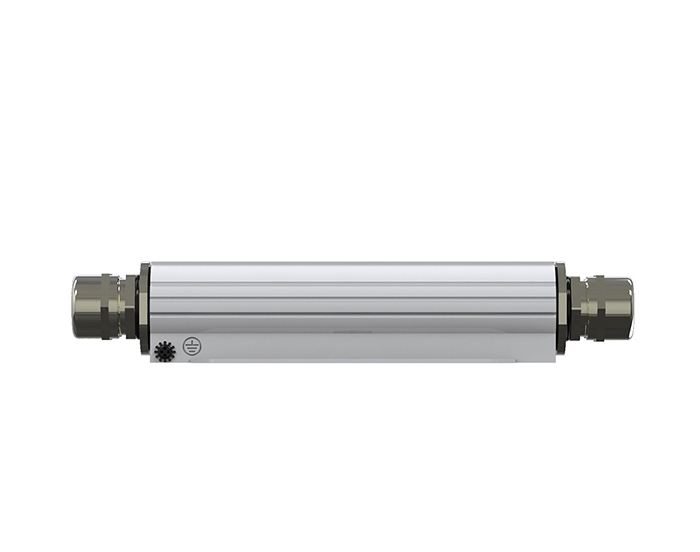

PT-PR01G-OT Outdoor Gigabit 60W PoE Surge Protector

PT-PR01G-OT is a single-port PoE surge protector designed for exterior complex backhaul and networking applications with an IP67 rated Aluminum alloy shell. It supports 8 lines network signals and provides surge protection for PoE wires. 10KV surge protection and four Level protection for SPD technology. Peak Surge Current up to 20KA. It supports10/100/1000Mbps of data rates. Ideal for 60W(max) PoE wires and well protects your devices against surge damage.


PT-PR01G-OT operates from -40℃ to +65℃ and works with voltage of 44-57Vdc. PoE In port should always be connected to device which you want it to be protected.


Both RJ45 ports connect to network over Cat5e/Cat6 cables which is very conveniently and tightly. It can be easily installed with 2 mounting holes.

  • Specifications
  • Support & Dowload
  • Gallery
  • Test Results
  • Standing Stock

Specifications

ParameterDescription
Key FeaturesWall-mounted
Part NumberPT-PR01G-OT
Ports conditionPoE Port*2
Regulatory ComplianceIEEE802.3bt
RoHS Compliance
WEEE Compliance
Pass Through Data Rates10/100/1000 Mbps
OutputPin Assignment and Polarity:
4/5(+), 7/8(-) and 3/6(+),1/2(-)
Maximum Operating DC Current :0.68A for 2 pairs,
                                                     1.36A for 4 pairs
User Port Power: 60W (Max.)
InputOperating Voltage :44-57Vdc (Max 60Vdc)
Working EnvironmentOperating Temperature: -40℃ to 65℃
Operating Humidity: 20% to 80%, non-condensation
Storage Temperature: -40℃ to 85℃
Storage Humidity: 10% to 90%, non-condensation
Operating Altitude: up to 5000meters
PoE Surge ProtectionMax Discharge Current: 20KA(8/20us,2.5KA per line)
Protected Line: 1,2,3,4,5,6,7,8
Common Mode Protection Level(10/700us): 10KV
Differential Mode Protection Level(10/700us): 6KV
Clamping Voltage(Line to GND): 300V
Clamping Voltage(Line to Line): 10V
Insertion Loss @10MHz/100MHz:-1db
Return Loss @10MHz/100MHz: -20db
Response Time:5ns
Mechanical CharacteristicsCase: Alumininum alloy
Color: White
Mounting: Wall-mounted
IP Rated: IP67
Connectors: Shielded RJ-45*2
Size: 209mmX 53mmX 37.5mm
Weight: 380g
Safety ApprovalsCE/UKCA


Install Video

None

Standing Stock

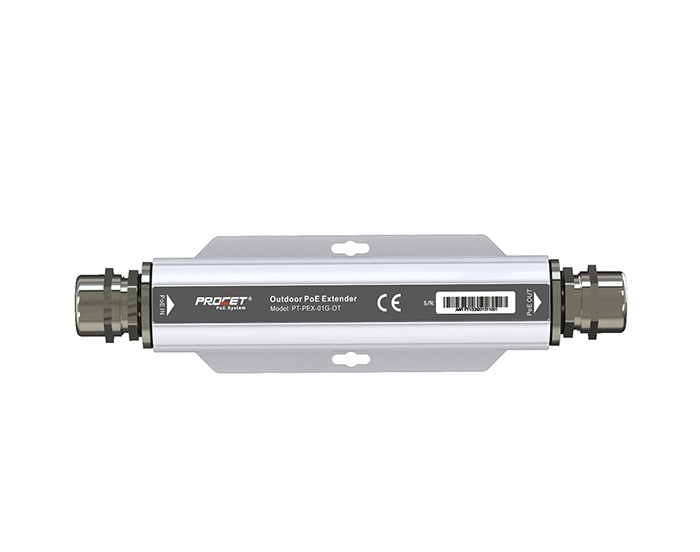

Product Order Info.(Model)PT-PEX-01G-OT
Stock Quantity100PCS
Warehouse Location Dongguan China
Sample Delivery TimeWithin 24H
Bulk Stock Delivery TimeWithin 48H
Shipping WayDHL,UPS,FedEx,TNT,
By SEA/AIR
Customer Nominated Forwarder
Packing SizeQty: 20pcs/carton
G.W.: 16Kgs
Volume: 0.06 m³
Packing: Export Carton
Pallet size: 110 x 110cm
