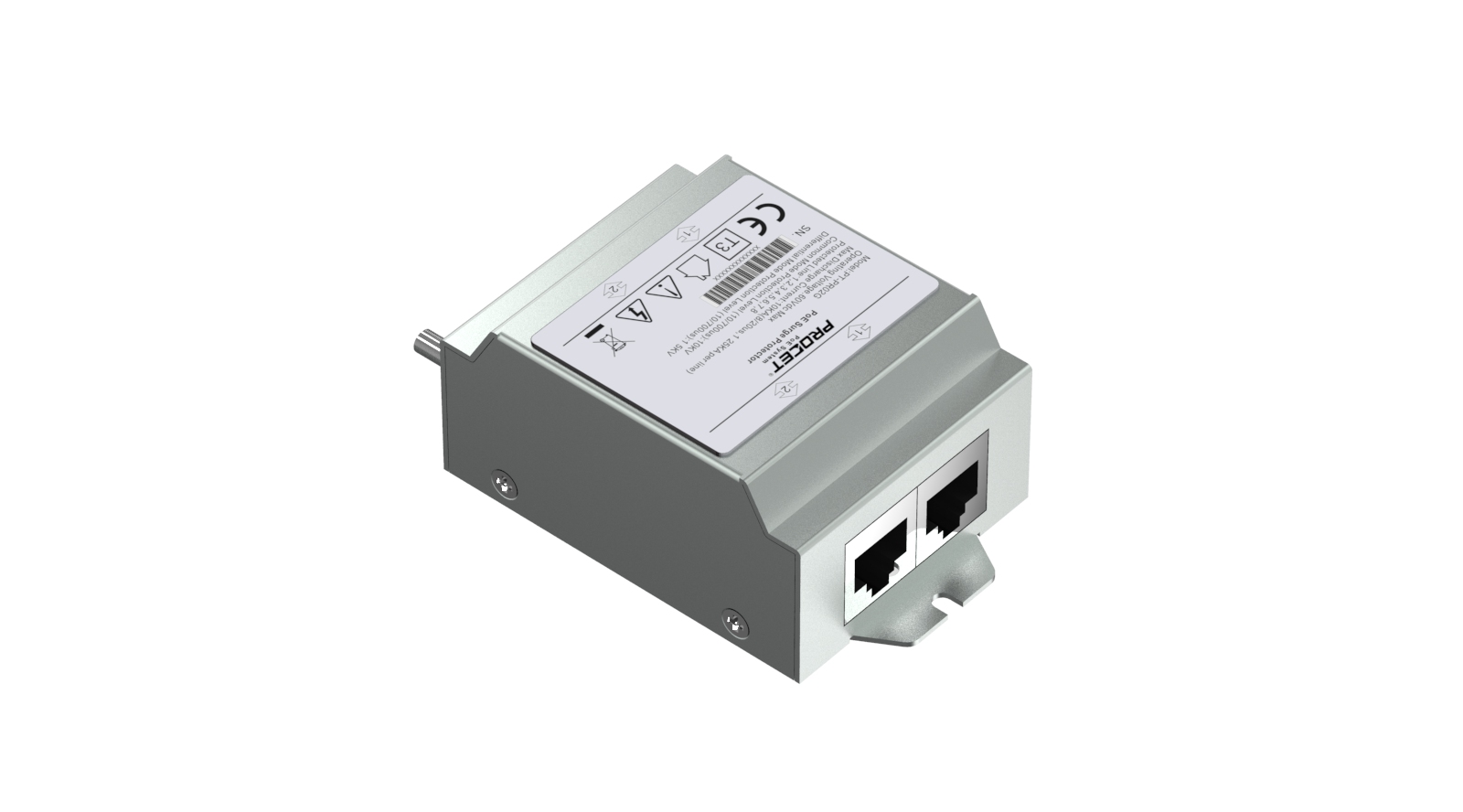

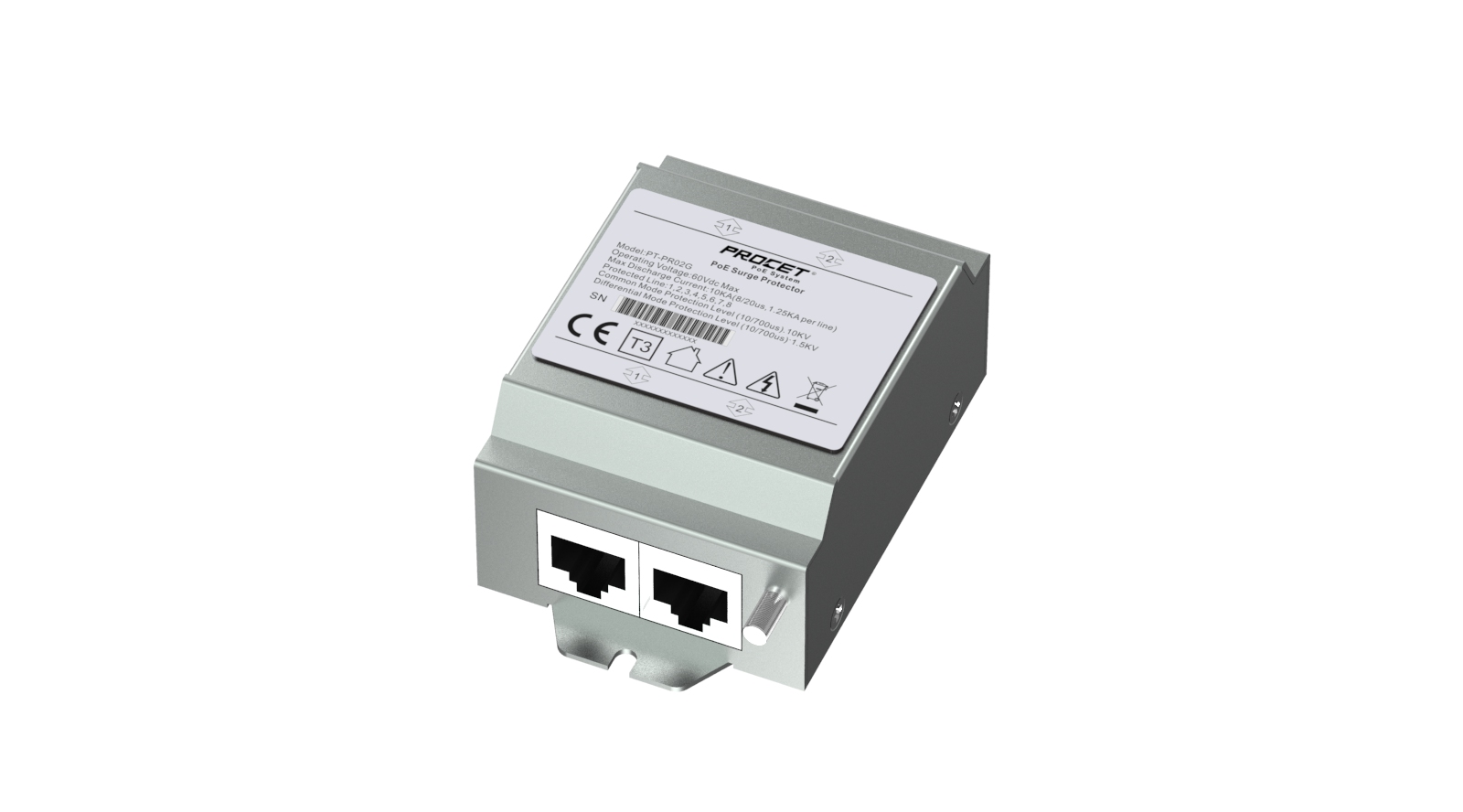

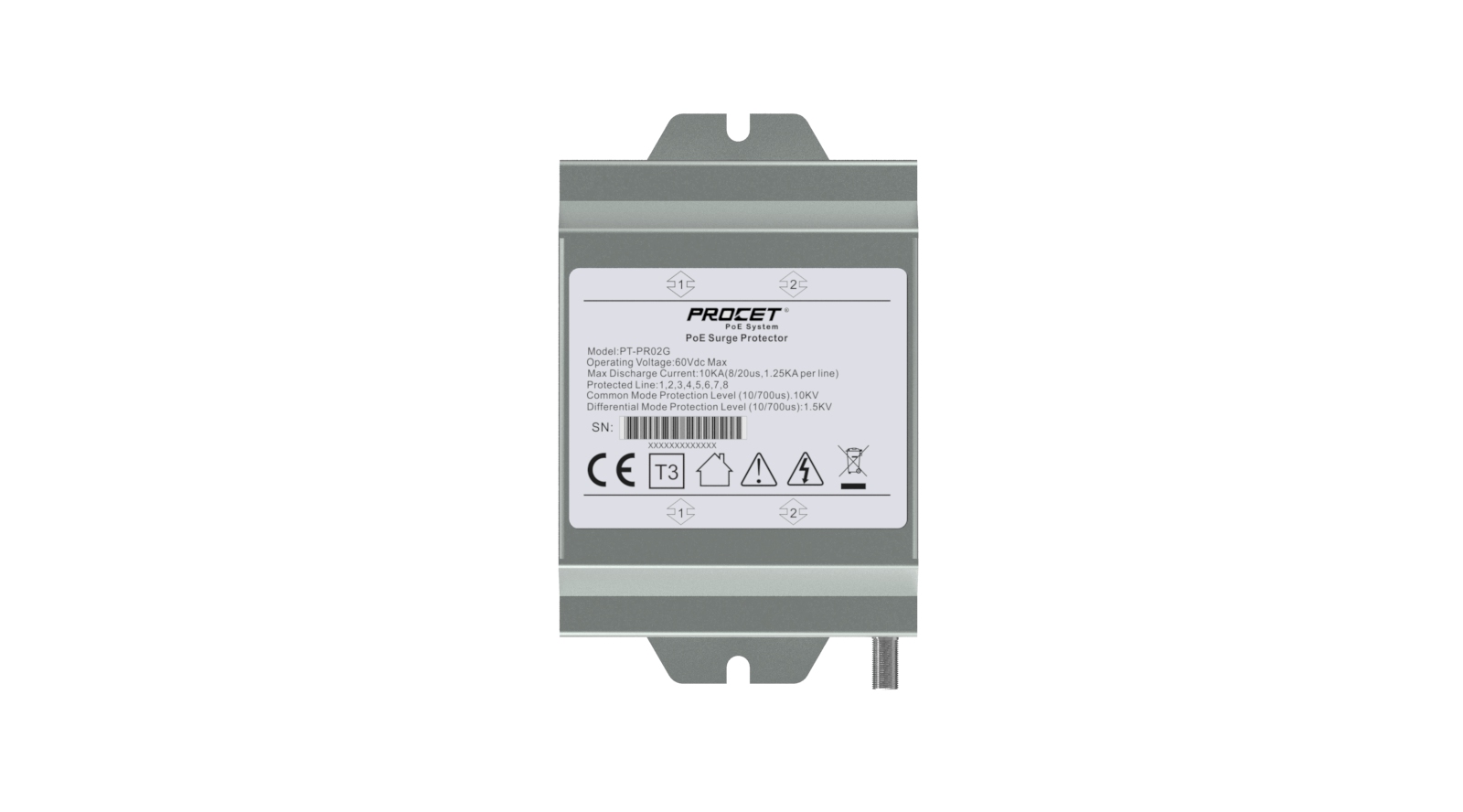

PT-PR02G is a dual-port industrial PoE surge protector designed for exterior complex backhaul and networking applications with an IP 40 rated Zinc alloy shell. It supports 8 lines network signals and provides surge protection for PoE wires. 10KV surge protection and four Level protection for SPD technology. Peak Surge Current up to 10KA. It supports10/100/1000Mbps of data rates. Ideal for 120W(max) PoE wires and well protect your devices against surge damage.

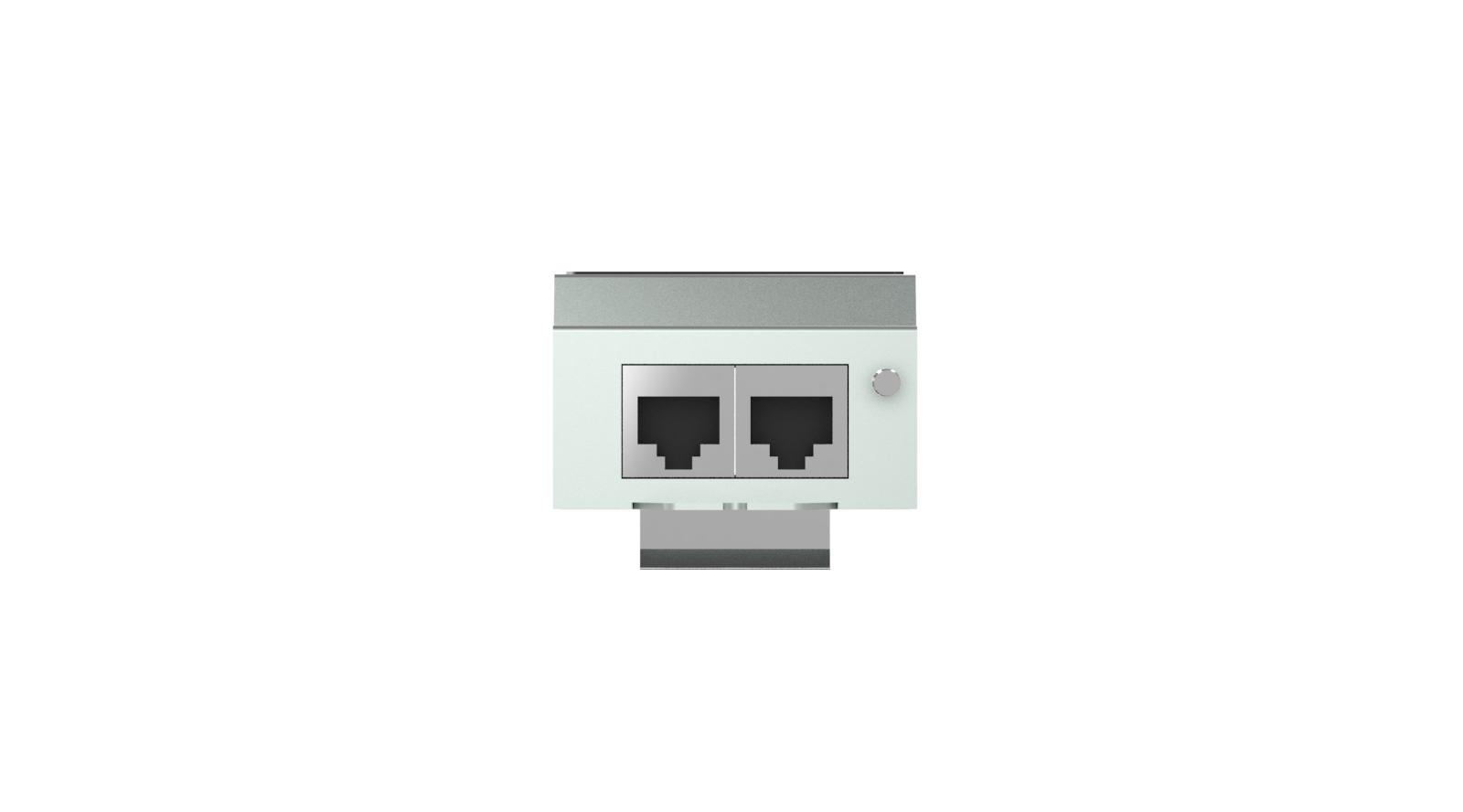

PT-PR02G operates from -40℃ to +85℃ and works with a voltage of 60Vdc (max). It is connected to the network over Cat5e/Cat6 cables with an RJ45 connector conveniently and tightly.

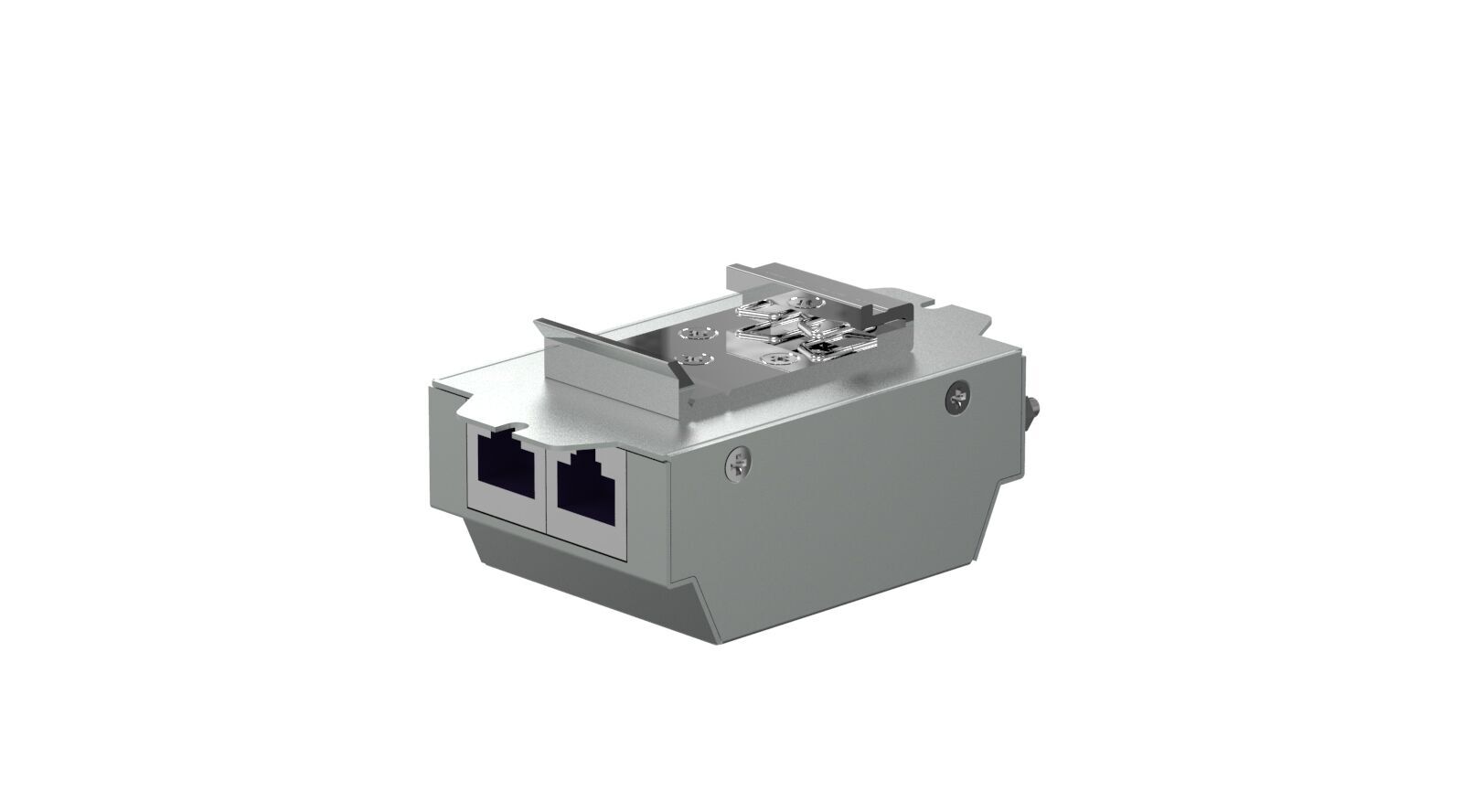

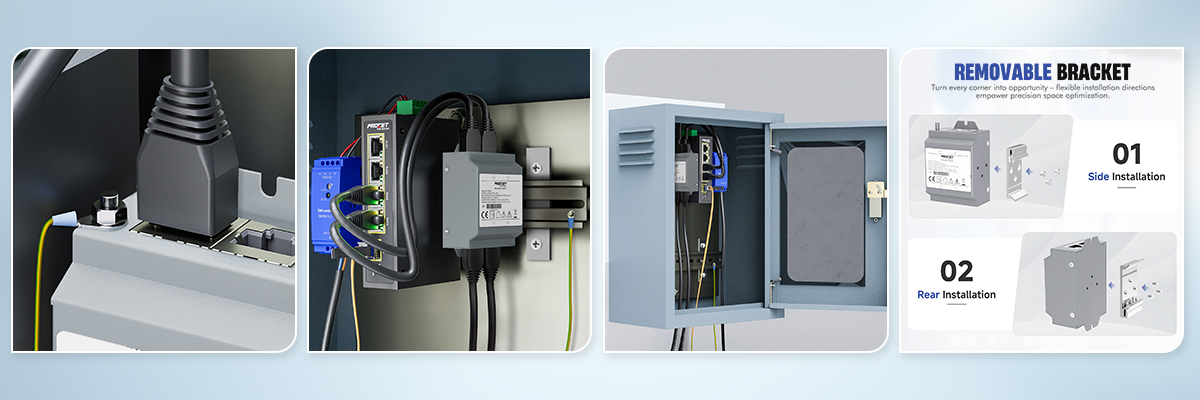

This model is equipped wall-mounted or standard DIN rail mounting bracket, which can easily jam into the guide rail. The DIN rail is a ground wire to transmit the current to the earth.
Specifications
| Parameter | Description |
| Key Features | DIN rail mounted |
| DIN rail is the ground wire | |
| Part Number | PT-PR02G |
| Ports condition | 2 input ports; 2 output ports |
| Regulatory Compliance | IEEE802.3bt or PoE ++ |
| RoHS Compliance | |
| WEEE Compliance | |
| Pass-Through Data Rates | 10/100/1000 Mbps |
| Output | Maximum Operating DC Current: Maximum 110W |
| Input | Operating Voltage: 5-60Vdc |
| Working Environment | Operating Temperature: -40℃ to 85℃ |
| Operating Humidity: 20% to 80%, non-condensation | |
| Storage Temperature: -40℃ to 85℃ | |
| Storage Humidity: 10% to 90%, non-condensation | |
| Operating Altitude: up to 2000meters | |
| PoE Surge Protection | Max Discharge Current: 10KA(8/20us,1.25KA per line) |
| Protected Line: 1,2,3,4,5,6,7,8 | |
| Common Mode Protection Level(10/700us): 10KV | |
| Differential Mode Protection Level(10/700us): 1.5KV | |
| Insertion Loss @10MHz/100MHz：-1db | |
| Return Loss @10MHz/100MHz: -20db | |
| Response Time：5ns | |
| Safety Approvals | CE |
