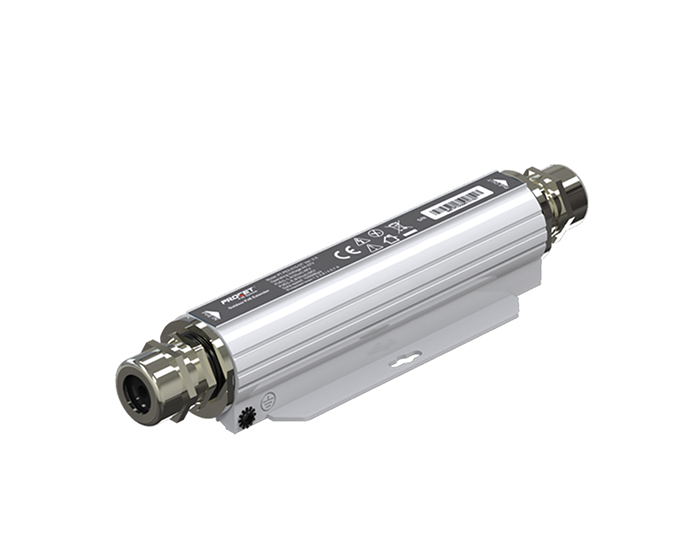

PT-PR01B-10G-OT outdoor PoE surge protector designed for exterior complex backhaul and networking applications with an IP 67 rated Aluminum alloy shell. It supports 8 lines network signals and provides surge protection for PoE wires. 10KV surge protection and four Level protection for SPD technology. Peak Surge Current up to 20KA.It supports not only 10/100/1000Mbps of data rates, but also 2.5/5/10GbE NBase-T.Ideal for 100W(max) PoE wires and well protects your devices against surge damage.
PT-PR01B-10G-OT operates from -40℃ to +65℃ and works with voltage of 44-57Vdc. PoE In port should always be connected to device which you want it to be protected.
Both RJ45 ports connect to network over Cat5e/Cat6 cables which is very conveniently and tightly. It can be easily installed with 2 mounting holes.
Specifications
| Parameter | Description |
| Key Features | 10GbE data rates Provide 10KV surge protection and 4 Level protection for 4 PoE wires simultaneously Peak Surge Current up to 20KA per PoE wire Wide temperature at -40℃ to 65℃ even up to 85℃ can be outdoor use by covered with waterproof case No local power is needed. |
| Part Number | PT-PR01B-10G-OT |
| Ports condition | PoE In Port*1, PoE Out Port*1 |
| Regulatory Compliance | IEEE802.3bt RoHS Compliance WEEE Compliance |
| Pass Through Data Rates | 10/100/1000 Mbps & 2.5/5/10GbE |
| Input & Output | Pin Assignment and Polarity: 4/5 (+), 7/8 (–) and 3/6(+),1/2(-) Operating Voltage :44-57Vdc, (Max 60Vdc) Maximum Operating DC Current :1A for 2 pairs, 2A for 4 pairs Maximum 100W |
| Working Environment | Operating Temperature: -40℃ to 65℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -40℃ to 85℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 5000meters |
| PoE Surge Protection | Max Discharge Current: 20KA(8/20us,2.5KA per line) Protected Line: 1,2,3,4,5,6,7,8 Common Mode Protection Level(10/700us): 10KV Differential Mode Protection Level(10/700us): 6KV Clamping Voltage(Line to GND): 300V Clamping Voltage(Line to Line): 10V Insertion Loss @10MHz/100MHz -1db Return Loss @10MHz/100MHz: -20db Response Time 5ns |

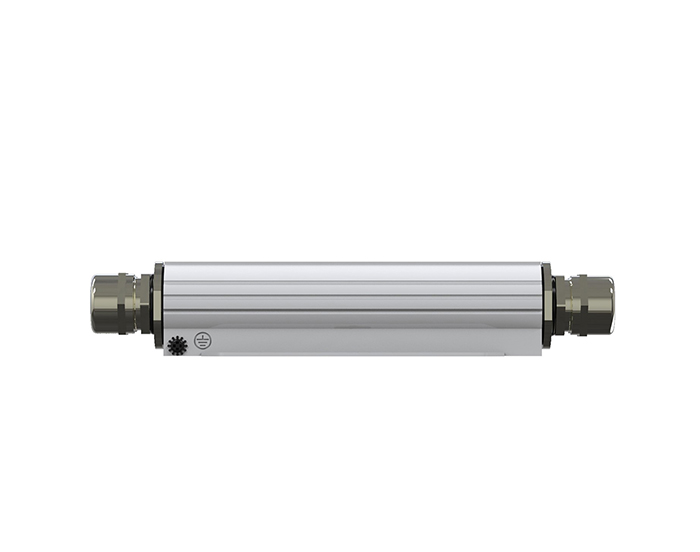

| Mechanical Characteristics | Case: Aluminium alloy Color: White Mounting: Wall-mounted IP Rated: IP67 Connectors: Shielded RJ-45 Size: 209mm X 53mm X 37.5mm Weight: 380g（0.84lb） |
