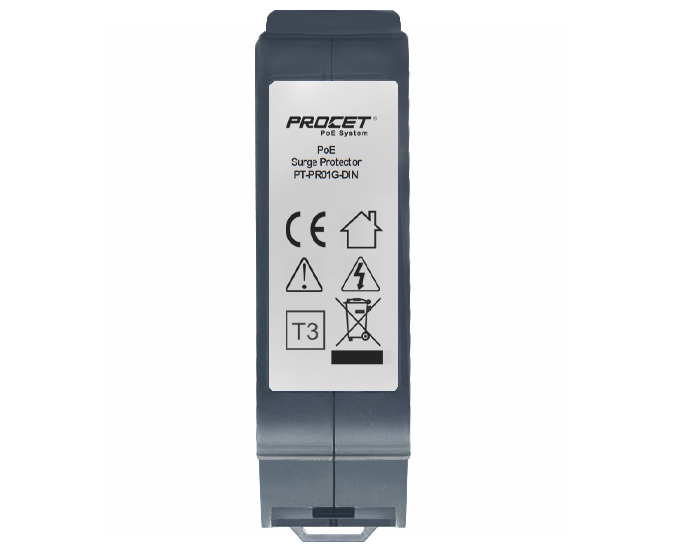

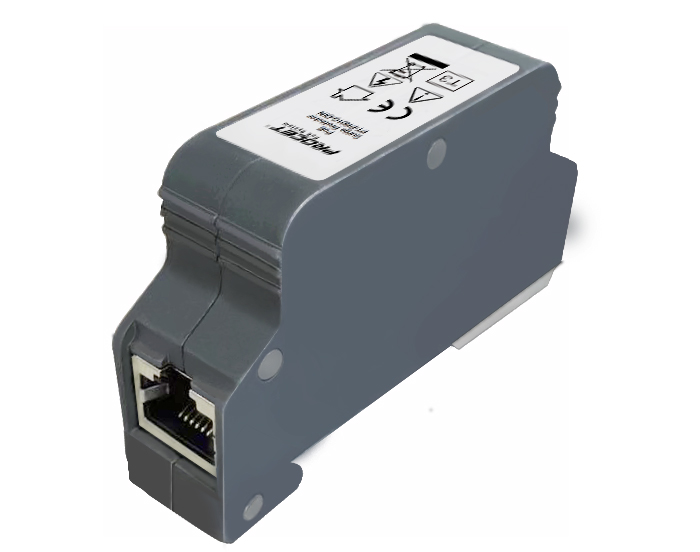

PT-PR01G-DIN is a single-port PoE surge protector, which has 2 RJ45 ports. Either port can be PoE in or PoE out. It supports 8 lines network signals and provides surge protection for PoE wires. The PoE surge protector can bear 10KA Peak Surge Current. 10KV(10/700us) common mode surge voltage and 1.5KV(10/700us) differential mode surge voltage. It supports not only 10/100/1000Mbps of data rates, but also 2.5/5/10GbE NBase-T. It is ideal to well protect your device against surge damage.
It is designed for indoor use with a Zinc-alloy shell, which works with 60Vdc Max voltage and operates from -40℃ to 85℃. It is connected to network over Cat5e/Cat6 cables with RJ45 connector conveniently and tightly.

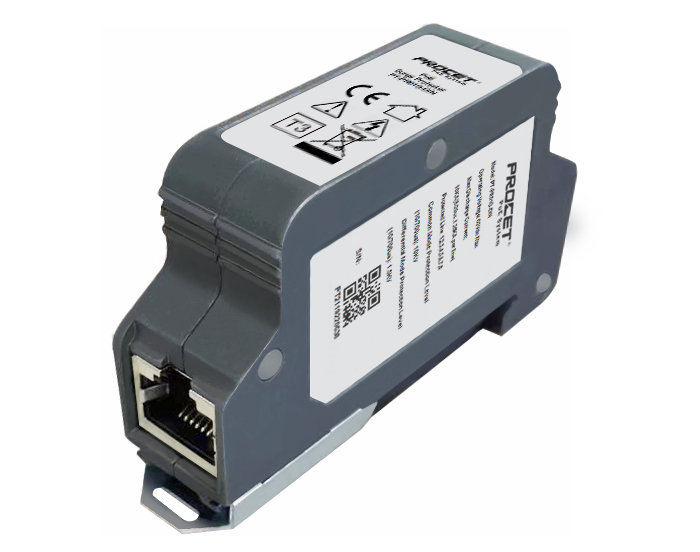

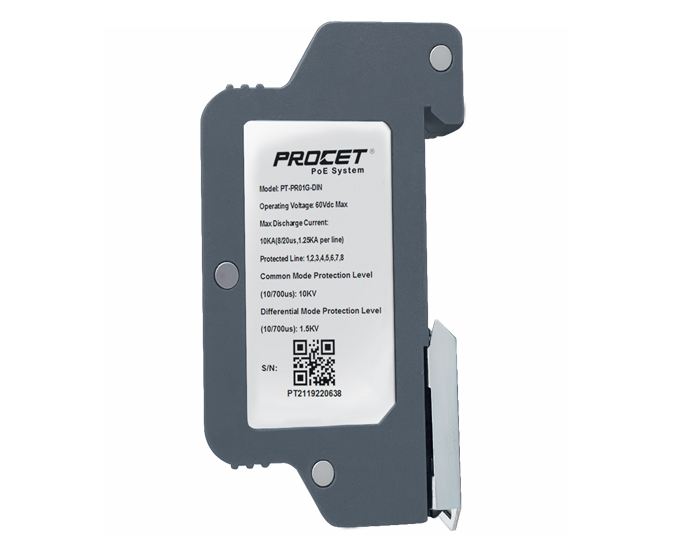

This model has equipped a standard DIN rail mounting bracket, which can easily jam into the guide rail. The Ethernet lightning arrestor must be properly grounded to work. Because it only used on a DIN Rail and the DIN rail as a ground wire to transmit current to the earth.
Specifications
| Parameter | Description |
| Key Features | 10G Din Rail PoE Surge Protector 120W 10KV 10KA Zinc alloy case |
| Part Number | PT-PR01G-10-DIN |
| Ports condition | RJ45 PoE Port*2 |
| PoE output | 120W |
| Data rates | 10G |
| Operating Voltage | 60Vdc(Max) |
| Operating Power | PoE 120W(Max) |
| Regulatory Compliance | 802.3af/at/bt/PoE++ RoHS Compliance WEEE Compliance |
| Working Environment | Operating Temperature: -40℃ to 85℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -40℃ to 85℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 5000meters |
| PoE Surge Protection | Max Discharge Current: 10KA(8/20us,1.25KA per line) Protected Line: 1,2,3,4,5,6,7,8 Common Mode Protection Level(10/700us): 10KV Differential Mode Protection Level(10/700us): 1.5KV Insertion Loss @10MHz/100MHz：-1db Return Loss @10MHz/100MHz: -20db Response Time：5ns |
| Mechanical Characteristics | Size: 77.2X 45X 19mm Weight: 115g（0.25lb） |
| Safety Approvals | CE |
