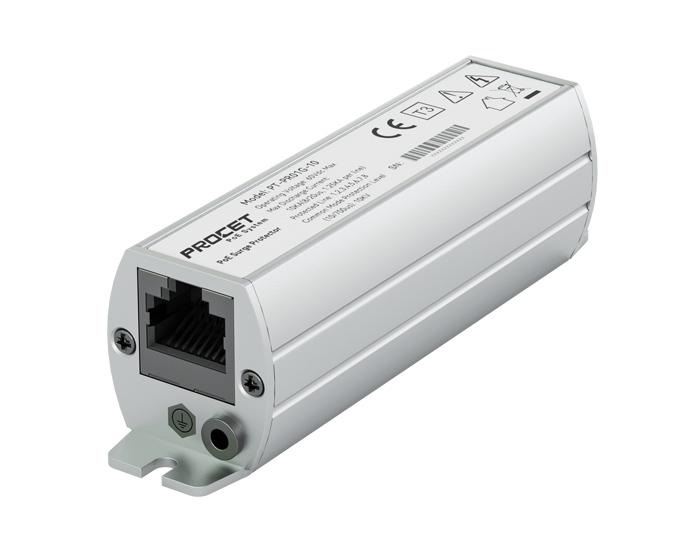

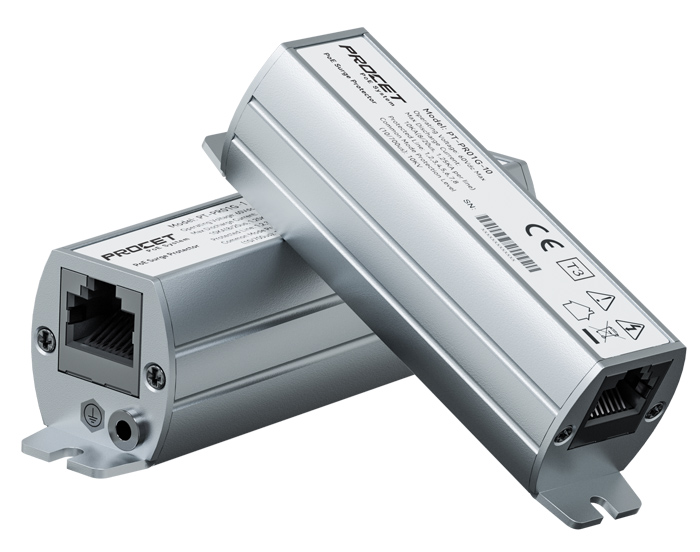

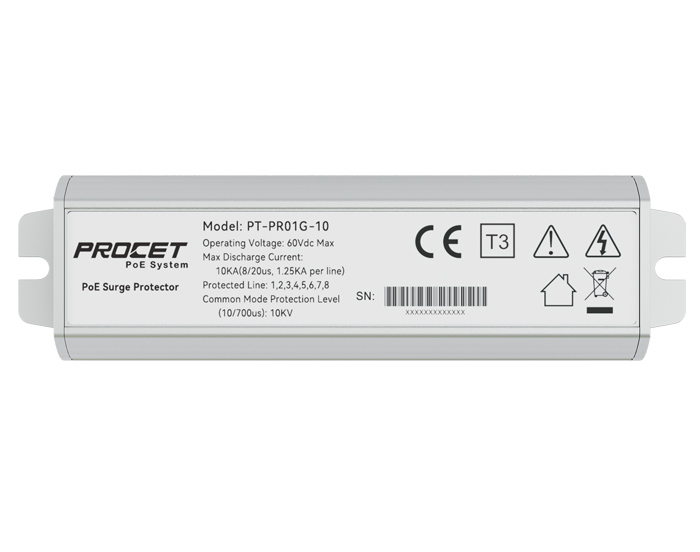

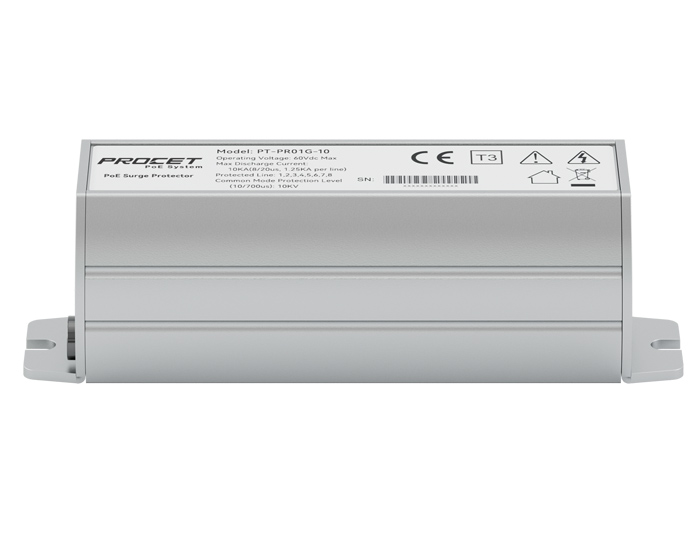

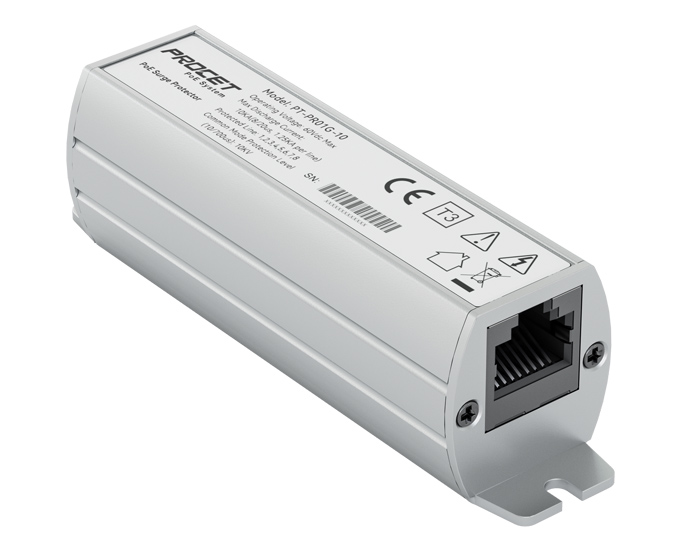

PT-PR01G-10 is a single-port Ethernet surge protector. Enclosed in an Aluminum Alloy shell, with a silver color exterior, complemented by an anodized aluminum surface. Enhanced RJ45 socket exhibits minimal signal attenuation. High-quality Gas discharge tube(GDT). Withstand extreme environmental conditions within a temperature range of -40 to 85 degrees Celsius. Max Discharge Current: 10KA (8/20us, 1.25KA per line). Supports power of 120W, 60Vdc(max) Ethernet equipment.
PT-PR01G-10 can not only work with IEEE802.3af/at/bt/PoE++ standard devices, but also supports non-standard Ethernet equipment, that well protects your devices against surge damage. And it can support 10/100/1000Mbps, 2.5/5/10Gbps data rate.The common mode surge voltage exceeds 10KV(10/700us) and the differential mode surge voltage is 1.5KV(10/700us).
Specifications
| Parameter | Description | |
| Key Features | Striking Appearance and Compact Design | |
| Superior RJ45 Socket Performance,shows minimal signal attenuation | ||
| 10KV surge protection and 10KA Discharge Current,Robust Surge Protection Capability | ||
| Working Temperature -40°C to 65℃ | ||
| Not only work with IEEE802.3af/at/bt/PoE++ standard devices, but also supports non-standard Ethernet equipment | ||
| Withstand extreme environmental temperature from -40 to 85 degrees | ||
| Bidirectional Functionality,provides flexibility for network configuration | ||
| Provide lightning protection for wireless and cameras network equipment | ||
| Supports power of 120W, 60Vdc(max) Ethernet equipment | ||
| Part Number | PT-PR01G-10 | |
| Standard | IEEE802.3i 10Base-T Ethernet | |
| IEEE802.3u 100Base-Tx Fast Ethernet | ||
| IEEE802.3ab 1000Base-T Gigabit Ethernet | ||
| CE | ||
| IEEE802.3 af / at / bt / PoE++ | ||
| RoHS Compliance | ||
| WEEE Compliance | ||
| Support 120W IEEE802.3bt and PoE++ standards | ||
| Support PoE wire with IEEE802.3af/at standards | ||
| Input & Output | Operating Voltage：60Vdc Max | |
| Max Discharge Current：10KA（8/20us，1.25KA per line） | ||
| Maximum Operating Current：1A for 2 pairs, 2A for 4 pairs | ||
| Maximum Operating Power：120W | ||
| Data Speed: 10/100/1000Mbp & 2.5/5/10GbE | ||
| Operating Environment | Operating Temperature: -40℃ to 85℃ | |
| Operating Humidity: 20% to 80%, non-condensation | ||
| Operating Altitude:Up to 5000meters | ||
| Storage Humidity: 10%-90%，non-condensation | ||
| Storage Temperature: -40℃ to 85℃ | ||
| PoE Surge Protection | Protected line:1,2,3,4,5,6,7,8 | |
| Common Mode Protection Level(10/700us): 10KV | ||
| Differential Mode Protection Level(10/700us): 1.5KV | ||
| Insertion Loss @10MHz/100MHz：-1db | ||
| Return Loss @10MHz/100MHz: -20db | ||
| Response Time：5ns | ||
| Network Protocol | IEEE802.3i/IEEE802.3u/IEEE802.3ab | |
| Safety Approvals | CE | |
| Mechanical Characteristics | Case：Aluminum alloy | |
| Color：Silver Zinc alloy case | ||
| Mounting: Wall mounted | ||
| Size:103mm X 28mm X 30mm | ||
| Weight:71.5g | ||
| IP Rated：IP40 | ||
| EMI | FCC CFR47 Part 15, EN55032, EN55035 | |
