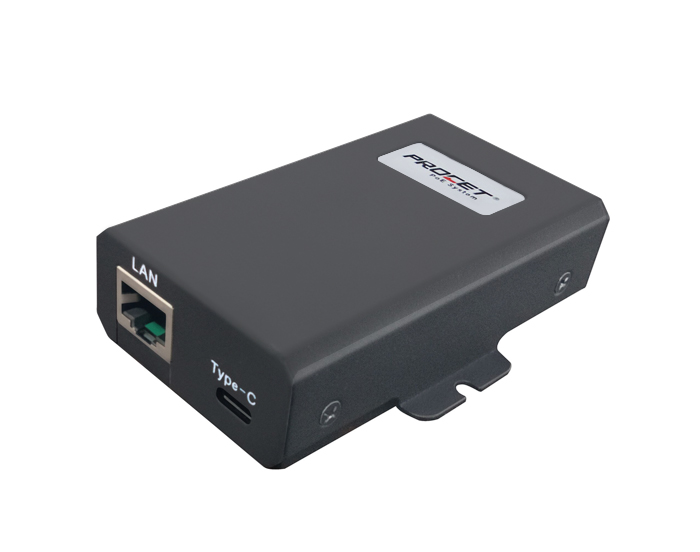

PT-PTC-AT is an USB-C PoE Splitter rated networking converter, special convert power&data from PoE to USB-C devices.

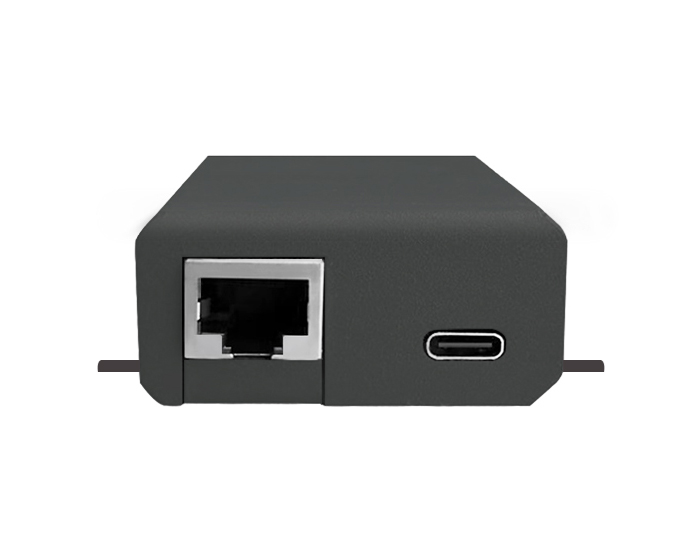

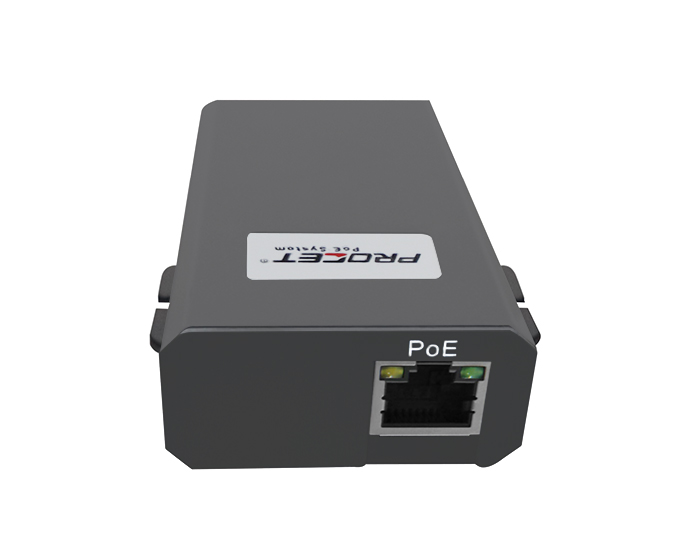

Only works for indoor environment, which designed to be powered from the IEEE802.3at PoE switch or PoE injector. It is with 1 PoE port for 802.3at standard input and 1 USB-C port for power output and 1 RJ45 port for data output.The dataspeed is 10/100/1000Mbps (Gigabit).This converter output total 25W for USB-C PDs, and the voltage output from 5V-20V base on the required of your USB-C PDs. It is designed with OVP,OCP, SCP, then worked safty for the USB-C PDs, such as computers, IPad,Macbook, Google Wifi etc.
Enclosed in an IP40 fire retardant metal case, It operates with a wide input voltage of 44-57 VDC. The standard effective distance is 100m from PoE switch or injector to USB-C converter over Cat5/5e/6 cables.
Specifications
| Parameter | Description |
| Key Features | USB-C PoE Splitter（USB C PoE adapter)For USB-C devices indoor useoutput 5V-20V |
| Part Number | PT-PTC-AT |
| Ports condition | USB-C Port*1, PoE Output Port*1,PoE Input Port*1 |
| Regulatory Compliance | IEEE802.3af/at RoHS Compliance WEEE Compliance |
| Pass Through Data Rates | 10/100/1000 Mbps |
| Output | Pin Assignment and Polarity: 4/5(+), 7/8(-) & 3/6(+), 1/2(-) Output Power Voltage:5-20V User Port Power: 25W Guaranteen |
| Input | 44- 57Vdc IEEE802.3bt/at |
| Working Environment | Operating Temperature: -20℃ to 40℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -20℃ to 70℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 2000meters |
| Mechanical Characteristics | Case: Metal Color: Black IP Rated: IP40 Size: 91 X 51.11 X 24.11mm Weight: 142g（0.31lb） |

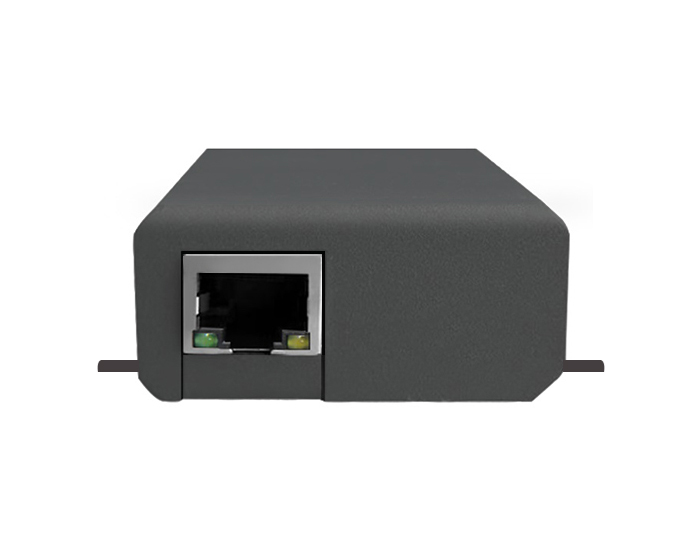

| LED Indicator | PoE input indicator: Green USB C output indicator: Yellow |
Install Video
Standing Stock
| Product Order Info.(Model) | PT-PTC-AT |
| Stock Quantity | 100PCS |
| Warehouse Location | Dongguan China |
| Sample Delivery Time | Within 24H |
| Bulk Stock Delivery Time | Within 48H |
| Shipping Way | DHL,UPS,FedEx,TNT, By SEA/AIR Customer Nominated Forwarder |
| Packing Size | Qty: 20pcs/carton Volume: 0.031 m³ Packing: Export Carton Pallet size: 110 x 110cm |
