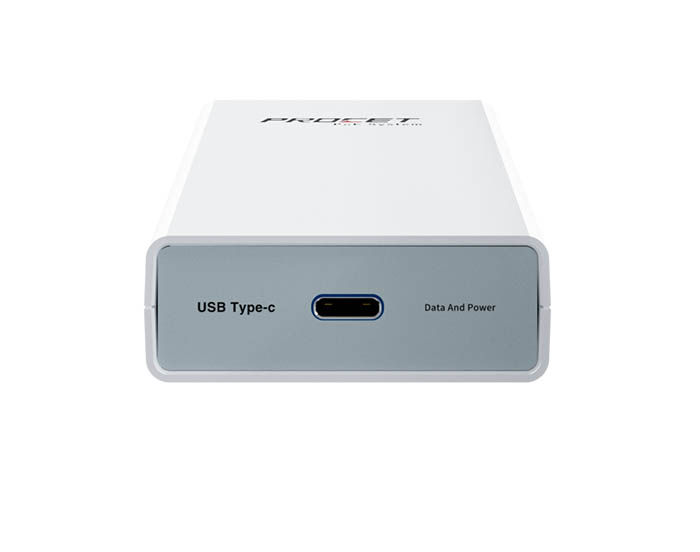

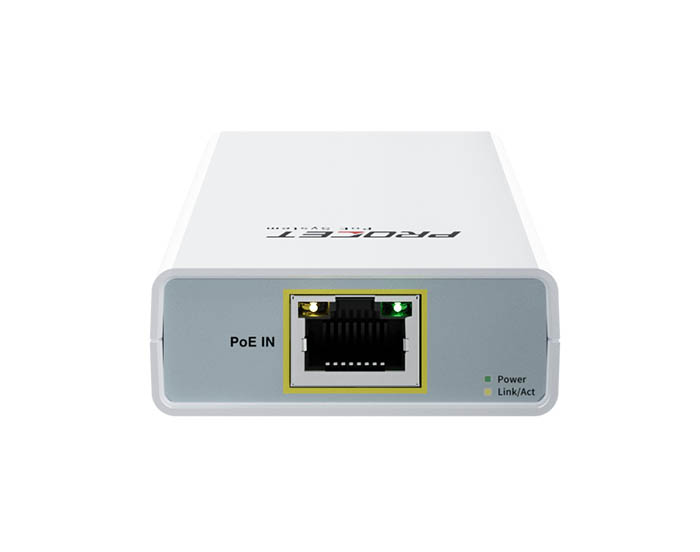

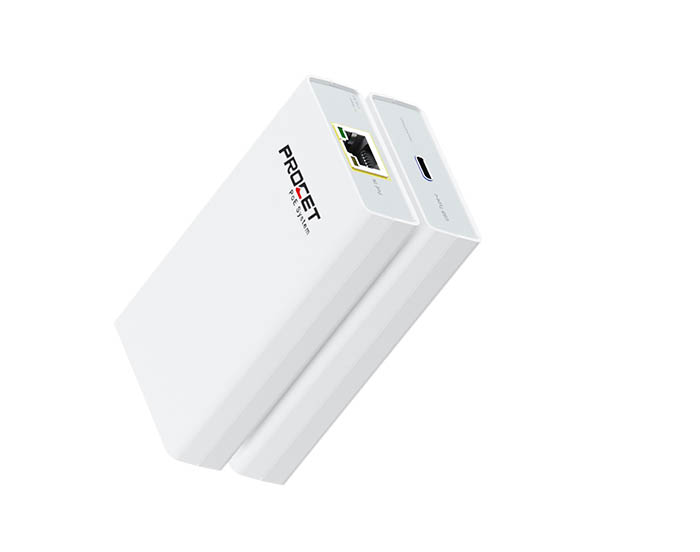

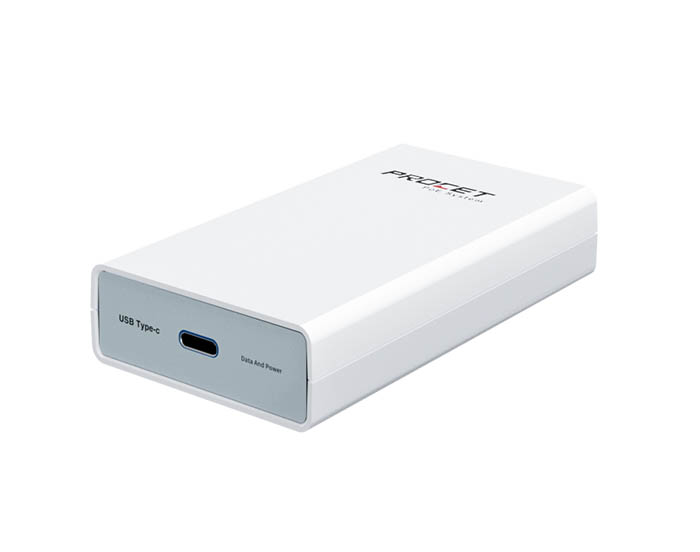

PT-PTC-G-AT is a gigabit PoE to USB-C power and data all-in-one adapter. It allows for the power and data obtained from an IEEE802.3at PoE injector or PoE switch to convert to USB-C PD. Support your USB-C device has stable wired network connectivity.
The device supports a safe voltage input range of 44 to 57 Vdc and provides a maximum power output of 23W along with 10/100/1000Mbps network data. The eff ective distance for PoE transmission via Cat5e/Cat6 Ethernet cable is 100 meters.
It is compatible with most USB-C devices in the market. Such as tablets, laptops, cellphones, small PCs/Next Unit of Computing (NUC) interactive information kiosks, smart monitors, cameras, and so on. Many bands of USB-C devices were tested, such as Samsung Galaxy Tablets, Microsoft Surface, Apple iPads, Android tablets/smartphones, some Chrome books, and other USB-C-powered devices.When the PoE power is disconnected, the unit of PT-PTC-G-AT will get power from your USB-C device and can work as an Ethernet signal converter to continue supporting data transfer.
Specifications
| Parameter | Description |
| Standard | IEEE802.3at 23W |
| IEEE802.3i 10Base-T Ethemet | |
| IEEE802.3u 100Base-Tx Fast Ethernet | |
| IEEE802.3ab 1000Base-T Gigabit Ethernet | |
| USB Standard: USB 3.0 | |
| Output & Input | Operating Voltage: 44-57Vdc IEEE802.3at |
| Power pins: 4/5(+),7/8(-) & 3/6(+),1/2(-) | |
| Output: 5V/2.6A、 9V/1.75A、 12V/1.45A、 15V/1.37A、 20V/1.15A | |
| Data rates: 10 / 100 / 1000Mbps | |
| Operating Environment | Operating Temp.: 0°℃ to 40°℃ |
| Operating Humidity.: 20% to 80%, non-condensation | |
| Operating Altitude: Up to 2000 meters | |
| Storage Temp.: -20℃ to 70℃ | |
| Storage Humidity: 10% to 90%, non-condensation | |
| Mechanical Characteristics | Case: Plastic ( White) |
| IP Rated: IP40 | |
| Dimensions: 91mm X 51mm X 18.5mm | |
| Weight: 61g |
