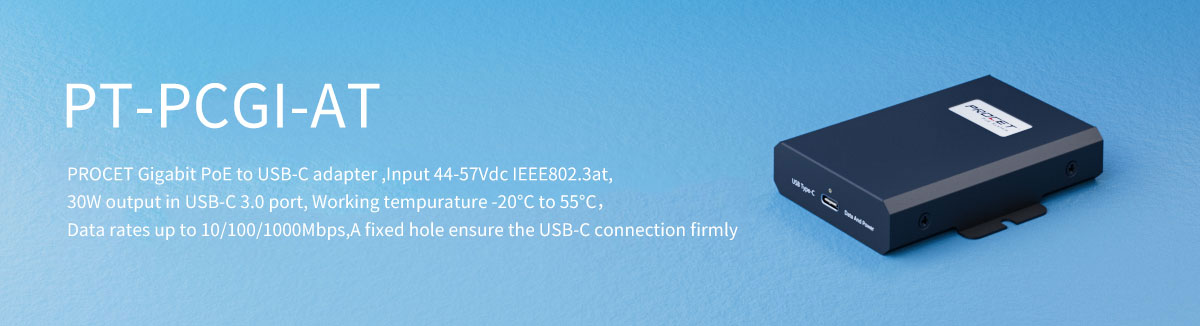

PT-PCGI-AT 30W USB C PoE Injector

PT-PCGI-AT is an indoor POE-to-USB-C adapter.The power and data obtained from the IEEE802.3at PoE power supply or PoE switch are supplied to the USB-C PD through the adapter.


The PT-PCGI-AT has a black metal housing design, which can be easily used with a portable desktop or fixed for open use. The input of the device does not exceed 57V safe voltage, and the output provides up to 23W power and 10/100/1000Mbps network data.The effective distance of the PoE terminal through the Cat5e/Cat6 network cable is 100 m.


PT-PCGI-AT is compatible with most tablets, smartphones (Android), and new Apple phones (USB-C).


  • Specifications
  • Support & Dowload
  • Gallery
  • Test Results
  • Standing Stock

Specifications

ParameterDescription
StandardIEEE802.3i 10Base-T Ethernet
IEEE802.3u 100Base -Tx Fast Ethernet
IEEE802.3ab 1000Base-T Gigabit Ethernet
USB standard: USB 3.0
Output & InputWorking voltage: 44-57Vdc PoE power supply/switch IEEE802.3at
Input pin: 4/5(+),7/8(-) or 3/6(+),1/2(-)
Output: 5V/2.6A、 9V/1.75A、 12V/1.45A、 15V/1.37A、 20V/1.15A
Transmission rate: 10/ 100 / 1000Mbps
Operating EnvironmentOperating temperature: -20°C to 55°C
Working humidity: 20% to 80%,no condensation
Working altitude: 2000 m
Storage temperature: -20°C to 70°C
Storage humidity: 10% to 90%, no condensation
Mechanical CharacteristicsCase: Metal (black)
IP level: IP40
Product size: 90.8mm X 65 4mm X 19.6mm
Product weight: 125g
