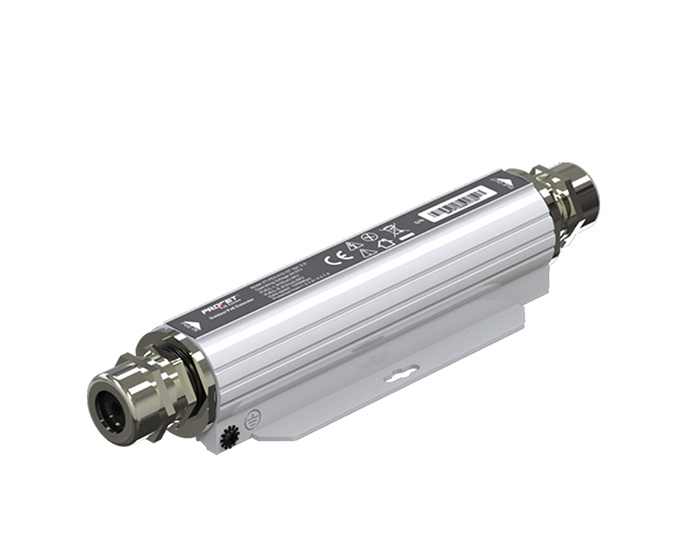

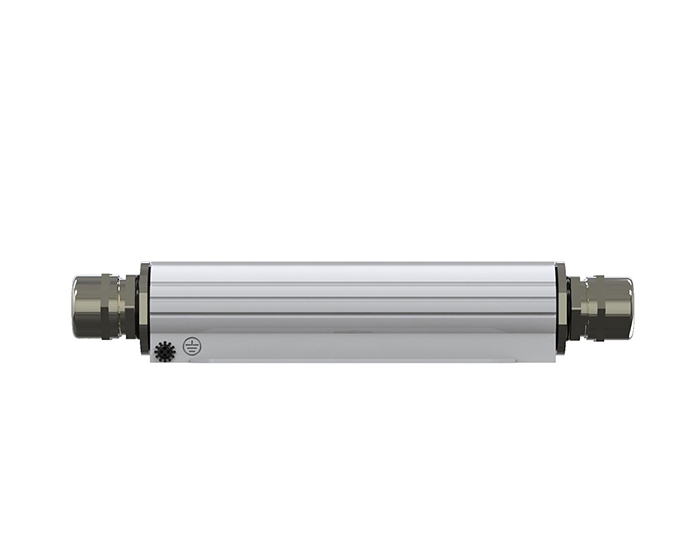

PT-PR01GB-OT is a single-port PoE surge protector designed for exterior complex backhaul and networking applications with an IP67 rated Aluminum alloy shell. It supports 8 lines network signals and provides surge protection for PoE wires. 20KV surge protection and four Level protection for SPD technology. Peak Surge Current up to 20KA. It supports10/100/1000Mbps of data rates. Ideal for 100W(max) PoE wires and well protects your devices against surge damage.
PT-PR01GB-OT operates from -40℃ to +65℃ and works with voltage of 44-57Vdc. PoE In port should always be connected to device which you want it to be protected.
Both RJ45 ports connect to network over Cat5e/Cat6 cables which is very conveniently and tightly. It can be easily installed with 2 mounting holes.
Specifications
| Parameter | Description |
| Key Features | Wall-mounted |
| Part Number | PT-PR01GB-OT |
| Ports condition | PoE Port*2 |
| Regulatory Compliance | IEEE802.3bt RoHS Compliance WEEE Compliance |
| Pass Through Data Rates | 10/100/1000 Mbps |
| Output | Pin Assignment and Polarity: 4/5(+), 7/8(-) and 3/6(+),1/2(-) Maximum Operating DC Current :1A for 2 pairs, 2A for 4 pairs User Port Power: 100W (Max.) |
| Input | Operating Voltage :44-57Vdc (Max 60Vdc) |
| Working Environment | Operating Temperature: -40℃ to 65℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -40℃ to 85℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 5000meters |
| PoE Surge Protection | Max Discharge Current: 20KA(8/20us,2.5KA per line) Protected Line: 1,2,3,4,5,6,7,8 Common Mode Protection Level(10/700us): 20KV Differential Mode Protection Level(10/700us): 6KV Clamping Voltage(Line to GND): 300V Clamping Voltage(Line to Line): 10V Insertion Loss @10MHz/100MHz：-1db Return Loss @10MHz/100MHz: -20db Response Time：5ns |
| Mechanical Characteristics | Case: Alumininum alloy Color: White Mounting: Wall-mounted IP Rated: IP67 Connectors: Shielded RJ-45*2 Size: 209mmX 53mmX 37.5mm Weight: 380g |
| Safety Approvals | CE/UKCA |
Standing Stock
| Product Order Info.(Model) | PT-PR01GB-OT |
| Stock Quantity | 100PCS |
| Warehouse Location | Dongguan China |
| Sample Delivery Time | Within 24H |
| Bulk Stock Delivery Time | Within 48H |
| Shipping Way | DHL,UPS,FedEx,TNT, By SEA/AIR Customer Nominated Forwarder |
| Packing Size | Qty: 20pcs/carton G.W.: 16Kgs Volume: 0.06 m³ Packing: Export Carton Pallet size: 110 x 110cm |
