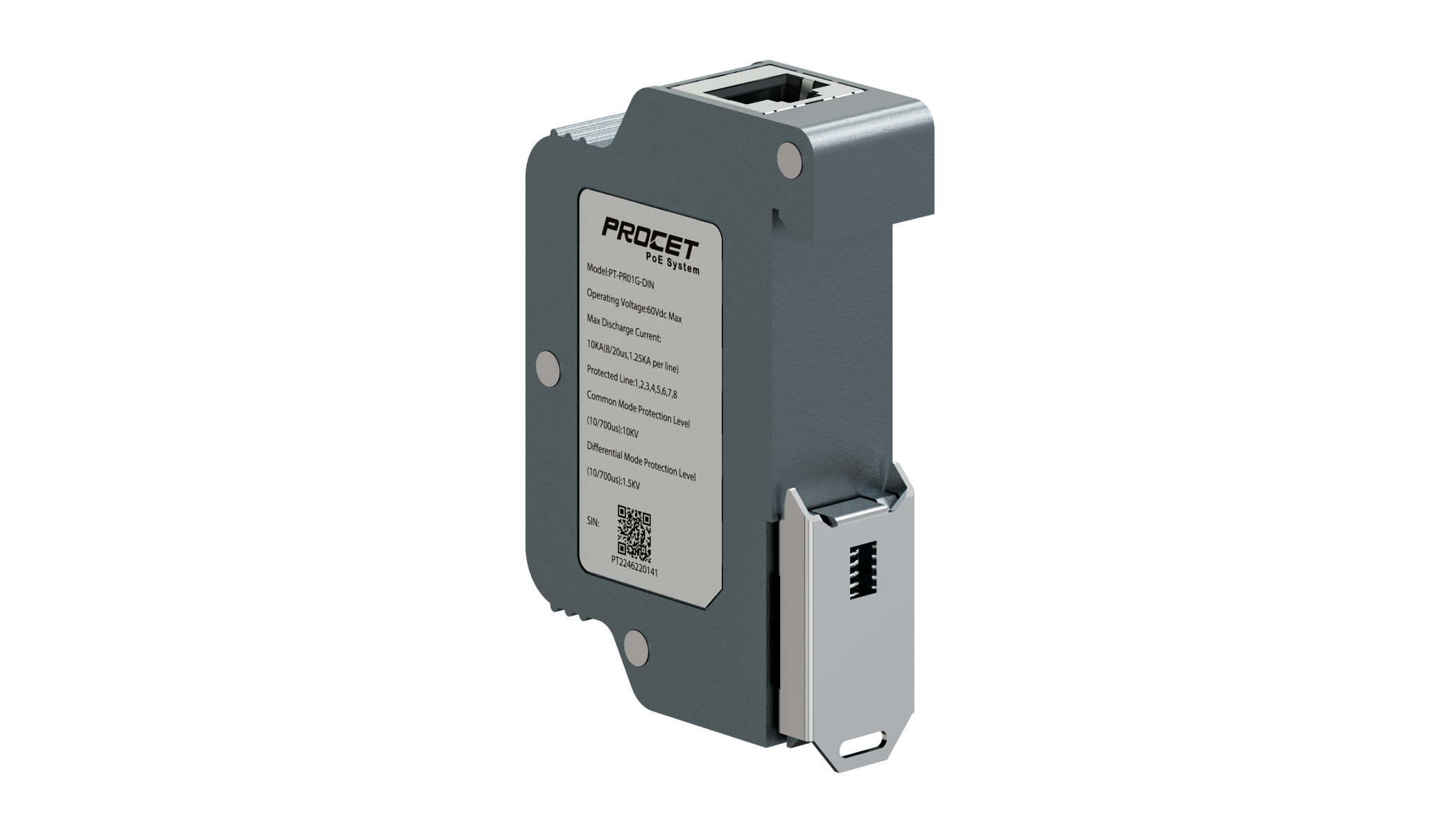

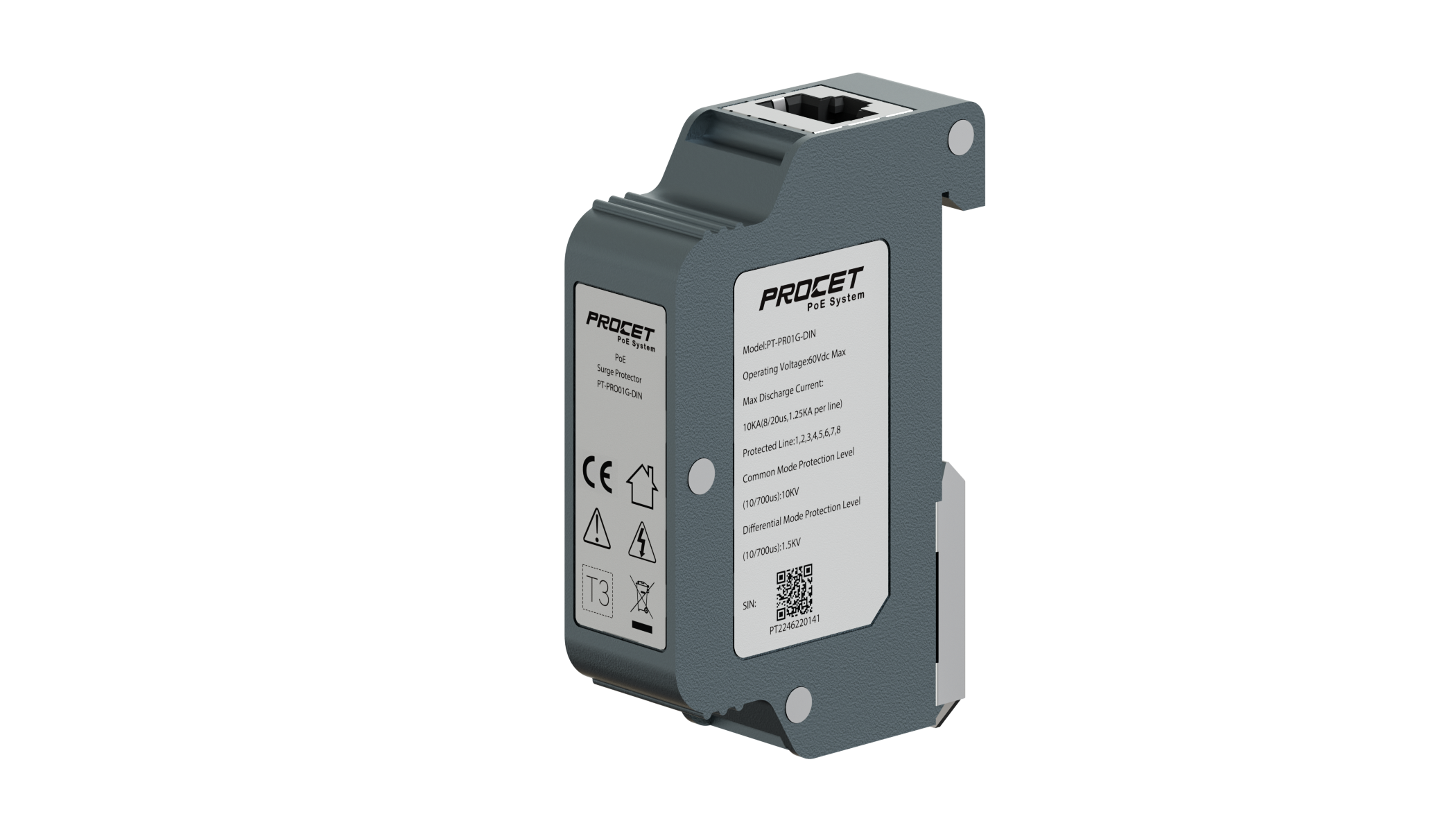

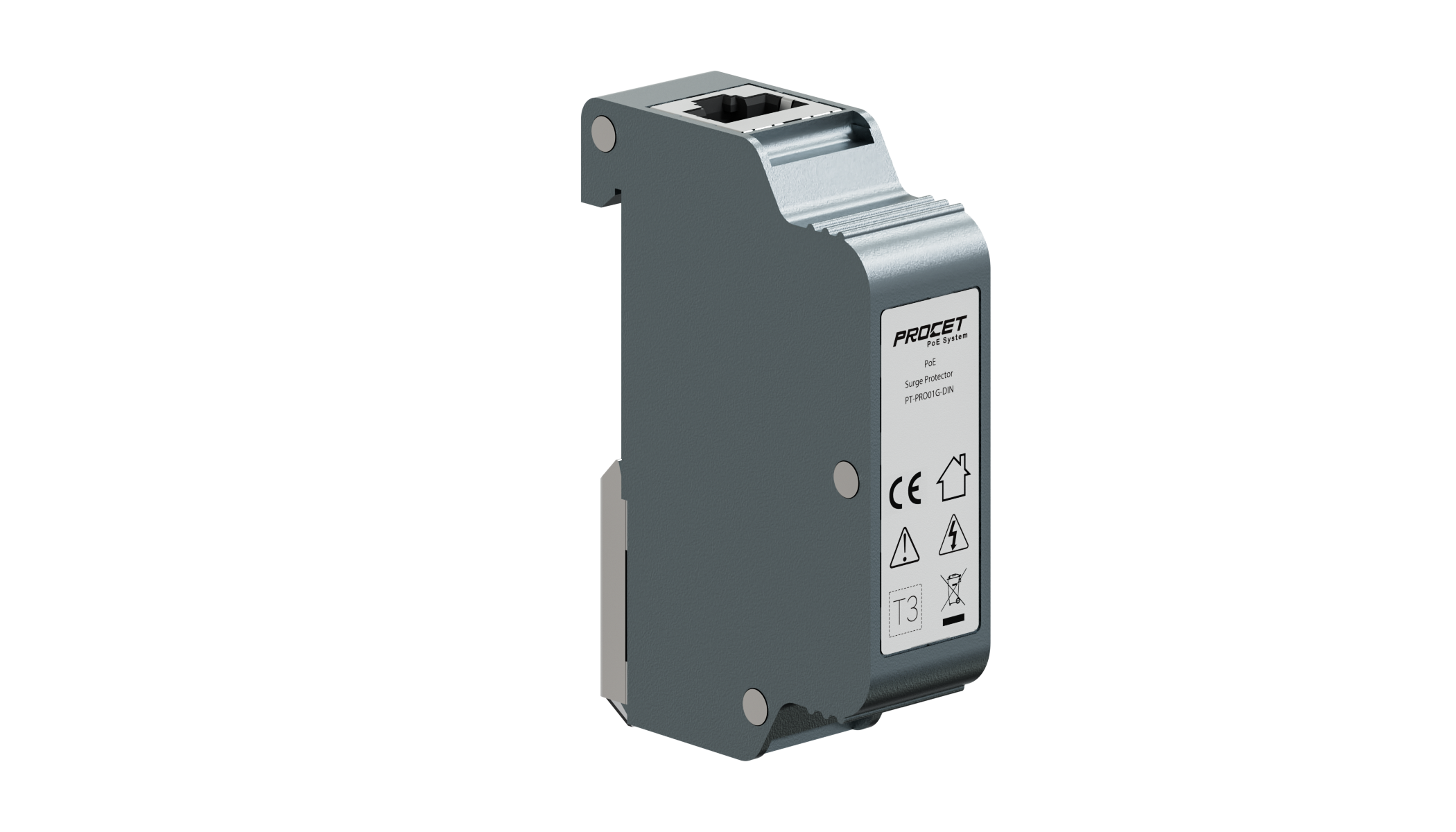

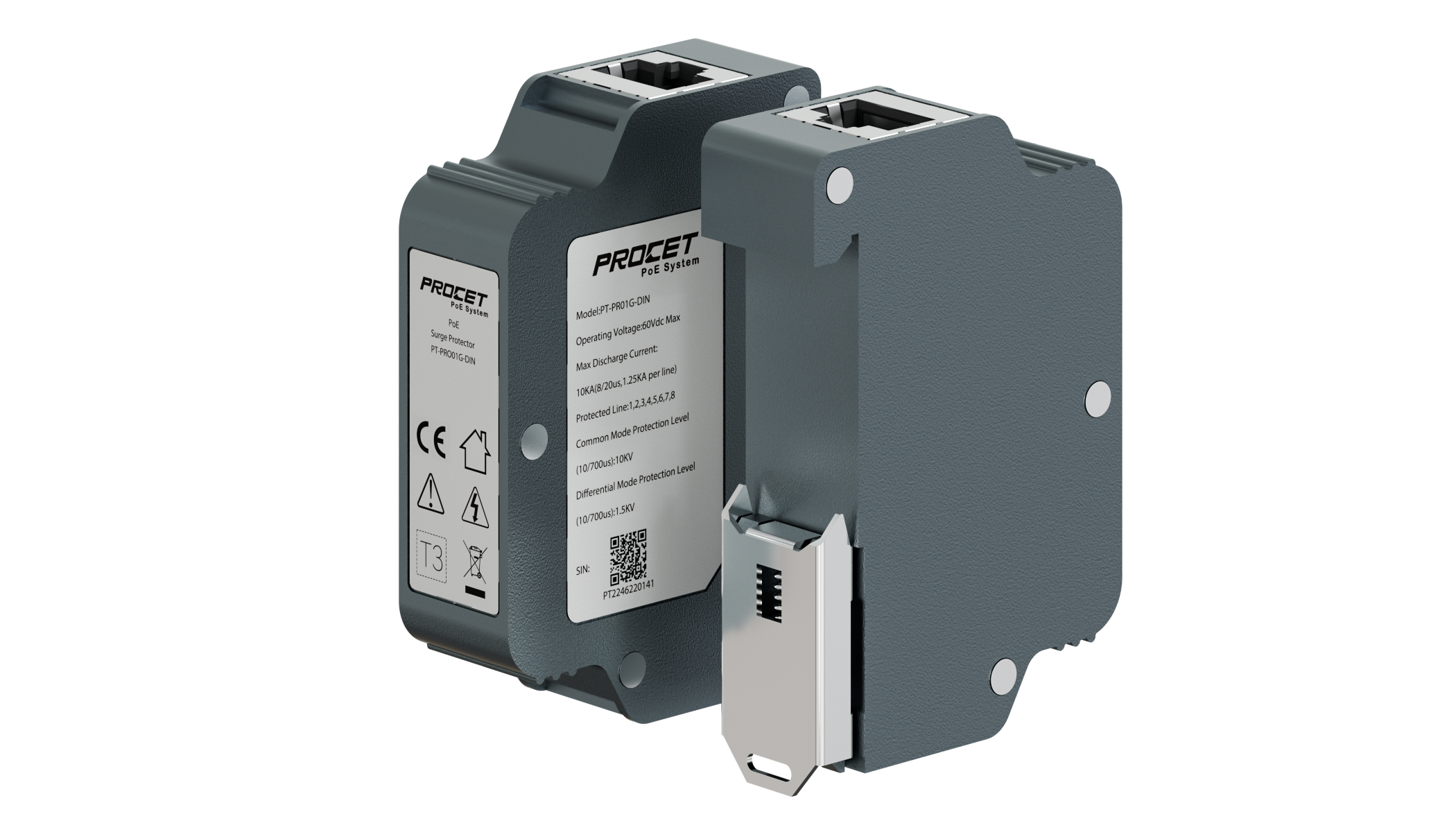

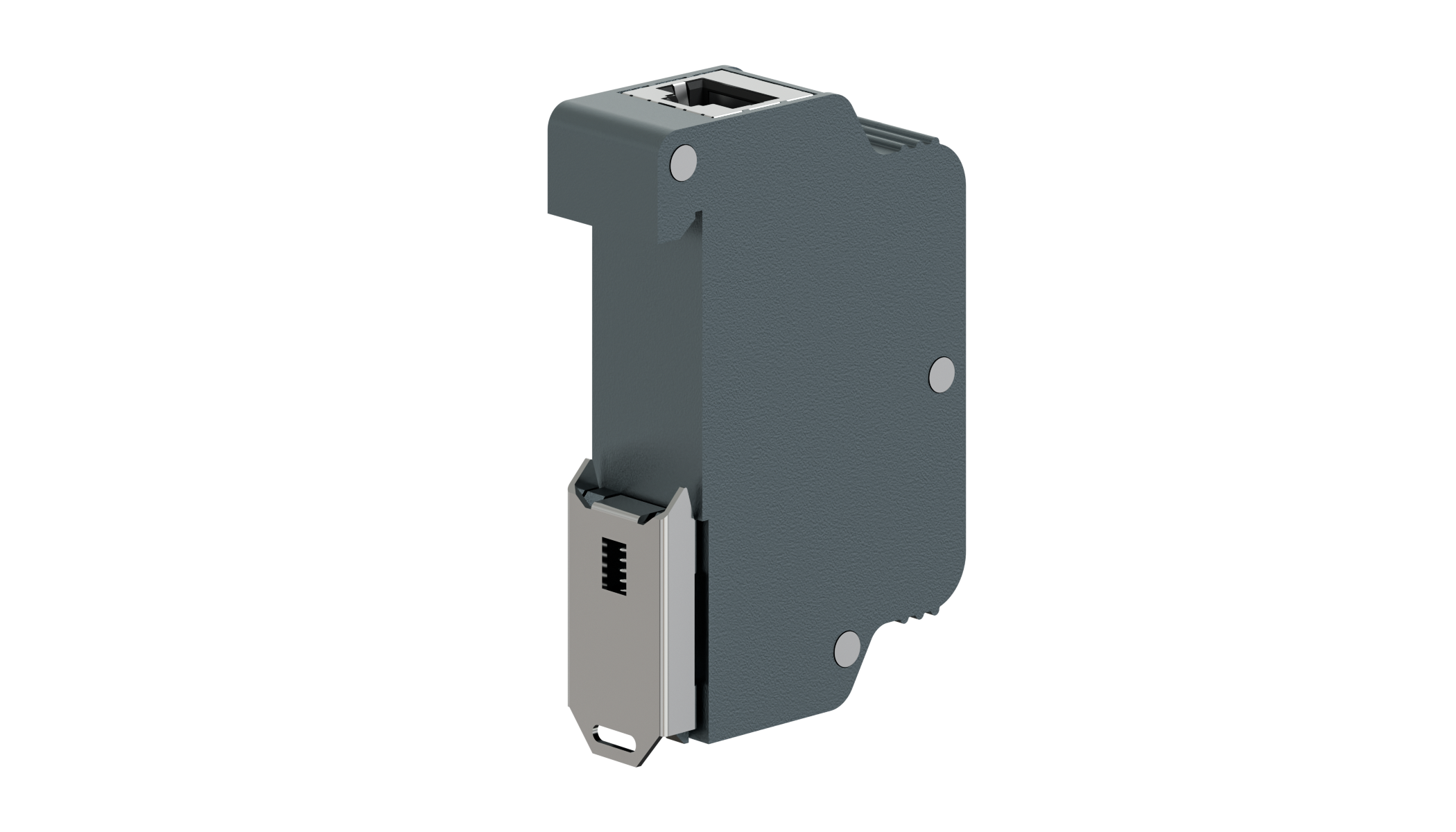

PT-PR01G-DIN is a single-port industrial PoE surge protector designed for exterior complex backhaul and networking applications with an IP 40 rated Zinc alloy shell. It supports 8 lines network signals and provides surge protection for PoE wires. 10KV surge protection and four Level protection for SPD technology. Peak Surge Current up to 10KA. It supports10/100/1000Mbps of data rates. Ideal for 110W(max) PoE wires and well protects your devices against surge damage.
PT-PR01G-DIN operates from -40℃ to +85℃ and works with voltage of 60Vdc (max). PoE In port should always be connected to device which you want it to be protected.

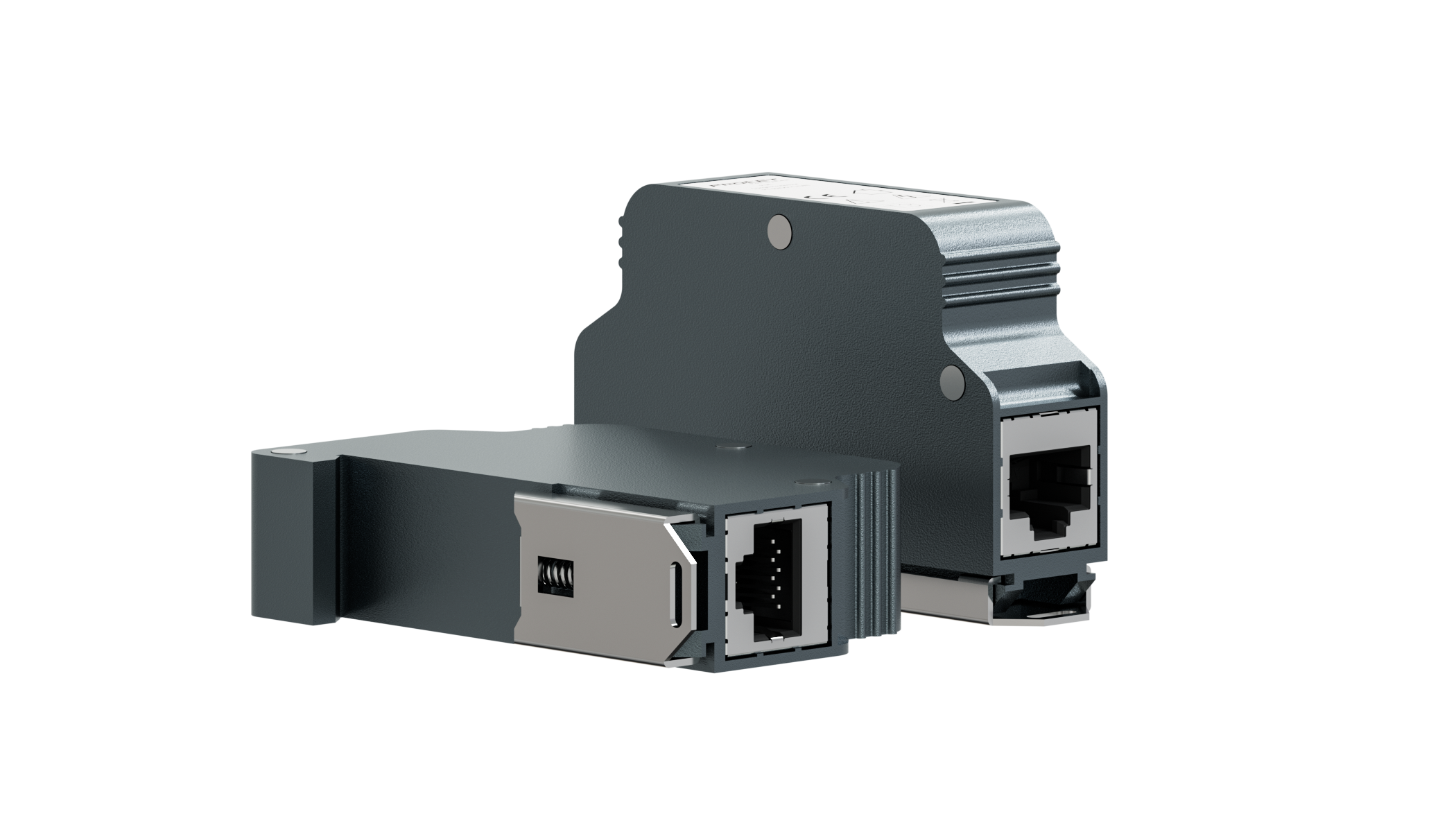

It is connected to network over Cat5e/Cat6 cables with RJ45 connector conveniently and tightly.This model equipped standard DIN rail mounting bracket, which can easily jam into the guide rail. The DIN rail as a ground wire to transmit the current to the earth.
Specifications
| Parameter | Description |
| Key Features | DIN rail mounted |
| DIN rail is the ground wire | |
| Model | PT-PR01G-DIN |
| Operating Voltage | 60Vdc Max |
| PoE Standard | IEEE802.3af/at/bt/PoE++ |
| IEEE802.3i 10Base-T Ethernet | |
| IEEE802.3u 100Base-Tx Fast Ethernet | |
| IEEE802.3ab 1000Base-T Gigabit Ethernet | |
| RoHS, WEEE | |
| Max Operating DC Current | 1A for 2 pairs, 2A for 4 pairs |
| Max Operating Power | 120W |
| Operating Temp. | -40℃ to 85℃ |
| Storage Humidity | 10%-90%，non-condensation |
| Operating Environment | Operating Humidity: 20% to 80%, non-condensation |
| Operating Altitude | Up to 5000 meters |
| Network Protocol | IEEE802.3i/IEEE802.3u/IEEE802.3ab |
| Data Speed | 10/100/1000Mbps |
| EMC | EN 55032:2015/A11:2020 EN 55035:2017/A11:2020 |
| Input&Ouput | Interface：PoE * 2 |
| Mechanical Characteristics | Case: Zinc alloy case |
| Color: Grey | |
| IP Rated：IP40 | |
| Dimensions： 77.2mm X 45mm X 19mm | |
| NW：115g | |
| Safety Approvals | CE |
| Immunity | IEC60068-2-6 (Vibration) |
| IEC60068-2-27 (Impact) | |
| IEC60068-2-32 (Free Fall) | |
| PoE Surge Protection | Common Mode Protection Level(10/700us):10KV |
| Differential Mode Protection Level(10/700us): 1.5KV |
