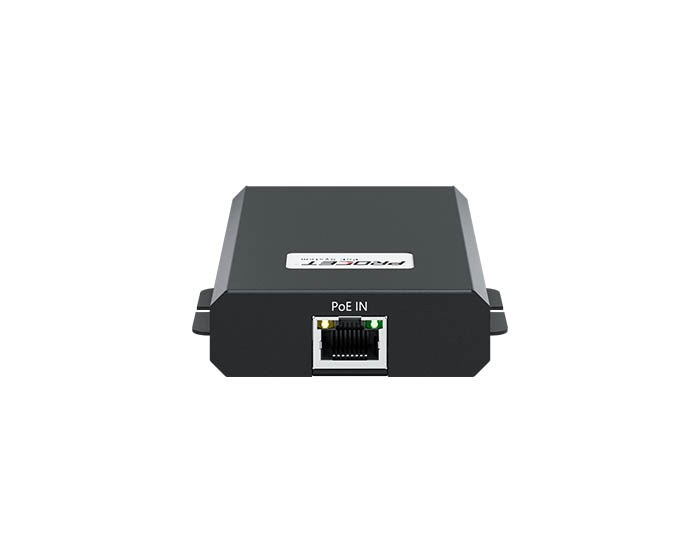

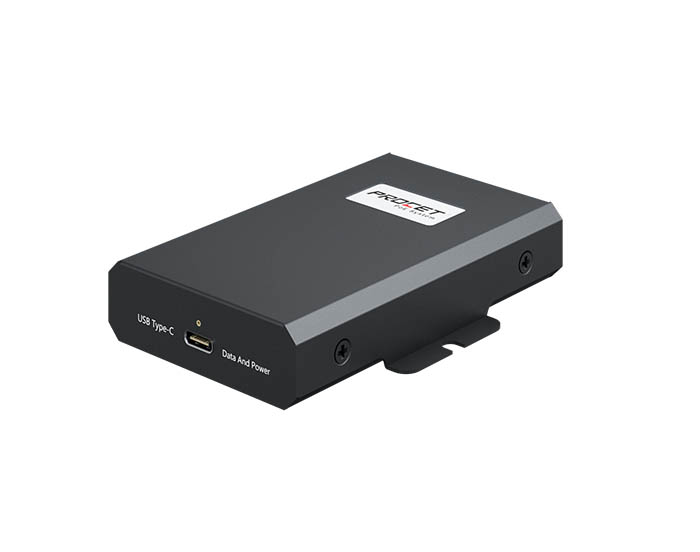

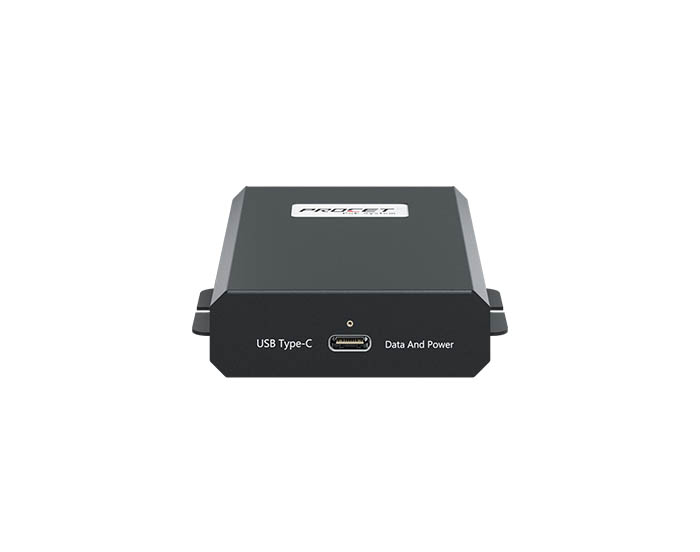

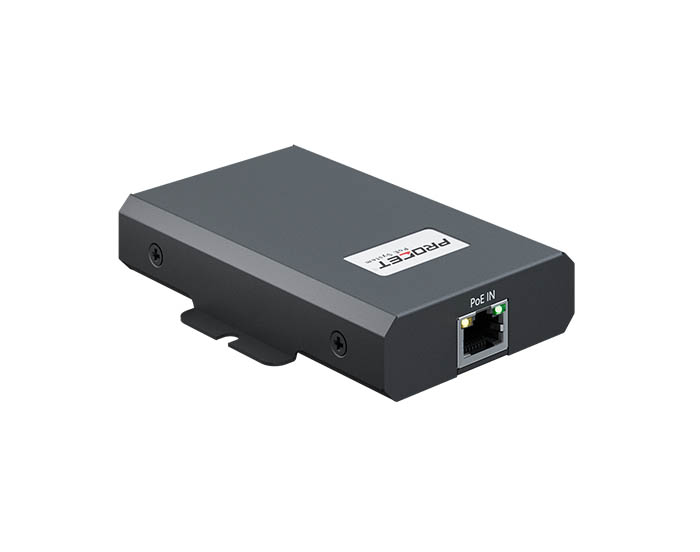

PT-PCGI-BT is a gigabit PoE to USB-C power and data all-in-one adapter. It allows for the power and data obtained from an IEEE802.3bt PoE injector or PoE switch to convert to USB-C PD. Support your USB-C device has stable wired network connectivity.

It is enclosed in a high-impact black metal housing with mounting holes on both sides for easy installation. Equipped with some thermal pads, good heat dissipation, suitable for industrial environments with the working temperature from -20 degrees Celsius to +50 degrees Celsius. A fixed hole on the top of the USB-C port to 100% fixed the USB-C cable connector not loose. The device supports a safe voltage input range of 44 to 57 Vdc and provides a maximum power output of 60W along with 10/100/1000Mbps network data. The effective distance for PoE transmission via Cat5e/Cat6 Ethernet cable is 100 meters.

It is compatible with most USB-C devices in the market. Such as tablets, laptops, cellphones, small PCs/Next Unit of Computing (NUC) interactive information kiosks, smart monitors, cameras, and so on. Many bands of USB-C devices were tested, such as Samsung Galaxy Tablets, Microsoft Surface, Apple iPads, Android tablets/smartphones, some Chrome books, and other USB-C-powered devices consuming up to 60W.

When the PoE power is disconnected, the unit of PT-PCGI-BT will get power from your USB-C device and can work as an Ethernet signal converter to continue supporting data transfer.
