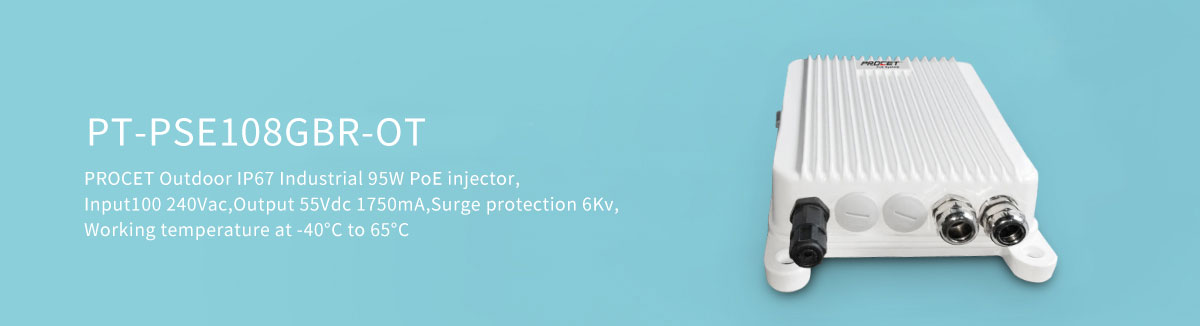

PT-PSE108GBR-OT belongs to 90-160W PoE Injector（Outdoor PoE Injector,）,with 4 Pair PoE up to 95 watts of power at 55 VDC at 1.75 amp.
Designed for the PoE++ powered 95W PoE Powered Devices (PDs), such as wireless APs, network camera, VoIP phone, base stations, and other high power Ethernet terminals. It is also compatible and safe to use with any IEEE802.3af/at compliant terminals, It supports 10/100/1000 Mbps of data rates. It has a detection chip inside, which will detect and classify PD before powering it. It will not apply power until a standard-compliant PD is detected.
Enclosed in an IP67 fire retardant metal case, designed for outdoor installation with installation kit PT-POT-MBK, no need to open the equipment. It operates with an input voltage of 100-240 Vac, 50 or 60 Hz. The effective distance limitation of 100 meters over Cat5e/Cat6 cables.
Specifications
| Parameter | Description |
| Key Features | Outdoor IP67, metal casing Lightning protection 6KV(10/700us) Working Temperature: -40℃ to 65℃ Support IEE802.3af/at/bt standard PD |
| Part Number | PT-PSE108GBR-OT |
| Ports condition | LAN Port*1, AC Input Port*1, PoE Output Port*1 |
| Regulatory Compliance | IEEE802.3af/at/bt RoHS Compliance WEEE Compliance |
| Pass Through Data Rates | 10/100/1000 Mbps |
| Output | Pin Assignment and Polarity: 4/5 (+), 7/8 (–) and 3/6(+),1/2(-) Output Power Voltage: 55Vdc 0utput Current: 1.75A User Port Power: 95W Guaranteed |
| Input | AC Input Voltage: 100 to 240 Vac AC Input Current: 2.0A Frequency: 50/60Hz Typ |
| Working Environment | Operating Temperature: -40℃ to 65℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -40℃ to 85℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 5000meters |
| PoE Surge Protection | Protected line: 1,2,3,4,5,6,7,8 Common mode surge protection(10/700us): 6KV Differential mode surge protection (10/700us): 1.5KV |
| AC Surge Protection | Line-Earth 1.2/50us (8/20us): 6KV Line-Line 1.2/50us (8/20us): 4KV |
| Mechanical Characteristics | Case: Metal Color: White Mounting: Pole-mounted IP Rated: IP67 Connectors: Shielded RJ-45*2 Size: 176mmX 269mmX 65mm Weight: 1.9kg（4.19lb） |
| Safety Approvals | cUL/UL, CE |
Standing Stock
| Product Order Info.(Model) | PT-PSE108GRB-OT |
| Stock Quantity | 50PCS |
| Warehouse Location | Dongguan China |
| Sample Delivery Time | Within 24H |
| Bulk Stock Delivery Time | Within 48H |
| Shipping Way | DHL,UPS,FedEx,TNT, By SEA/AIR Customer Nominated Forwarder |
| Packing Size | Qty: 5pcs/carton G.W.: 12.2Kgs Volume: 0.056 m³ Packing: Export Carton Pallet size: 110 x 110cm |
