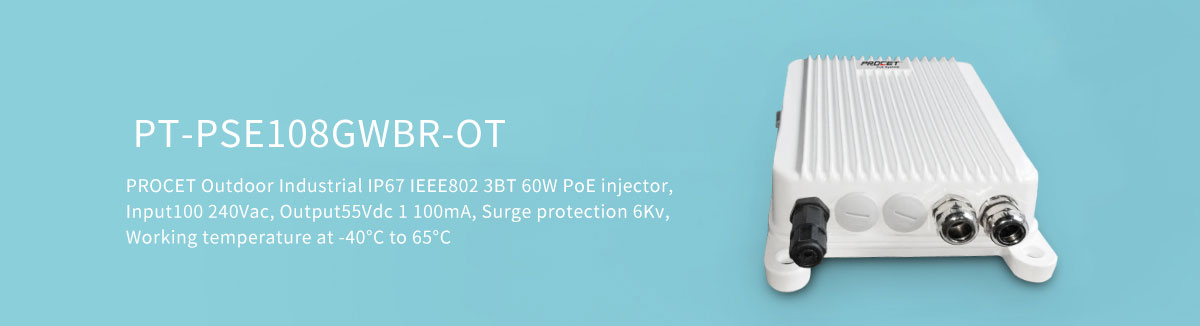

PT-PSE108GWBR-OT is an outdoor PoE injector specially designed for exterior, complex backhaul and networking applications. Enclosed in a IP67 Reflective metal case with a sealing that gasket passes tension, bearing, corrosion, and aging test for IP67 applications. After negotiating IEEE802.3bt standard PoE, the single PoE output port delivers 55Vdc, 1.1A up to 60W power with 6KV surge protection for remote PDs over full 4 Pair at 10/100/1000Mbps data rates.
It works with a wide input voltage of 100-240VAC with 6KV surge protection, 50 or 60 Hz and operates under -40℃ to +65℃. It fully complies with IEEE802.3bt and remains compatible with any IEEE802.3af/at compliant devices, such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks.
For planning purposes, the effective distance is 100 meters over Cat5e/Cat6 cables. It is easy to install with installation kit PT-POT-MBK(Sold separatly), no need to open the equipment.
Specifications
| Parameter | Description |
| Key Features | Industrial Outdoor IP67 PoE Extend temperature from -40℃ to 65℃, even to 75℃ Lighting Protection Gigabit data rates Diagnostic LEDs IEEE802.3BT 60W |
| Part Number | PT-PSE108GWBR-OT |

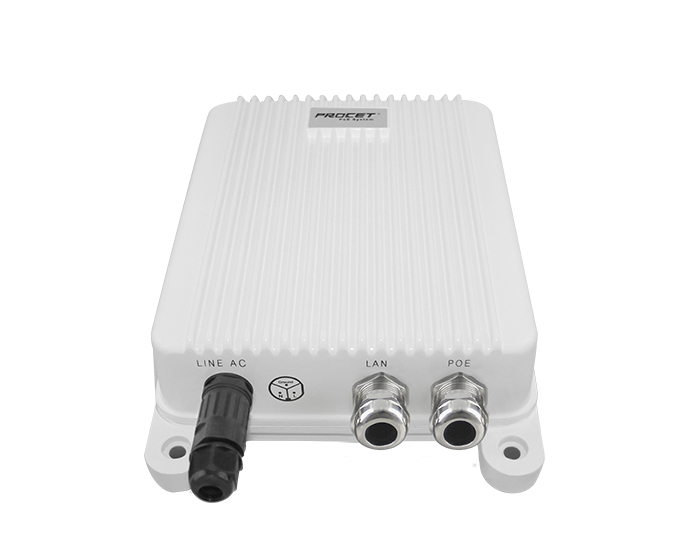

| Ports condition | LAN Port*1, AC Input Port*1, PoE Output Port*1 |
| Regulatory Compliance | IEEE802.3bt RoHS Compliance WEEE Compliance |
| Pass Through Data Rates | 10/100/1000 Mbps |
| Output | Pin Assignment and Polarity: 4/5 (+), 7/8 (–) and 3/6(+),1/2(-) Output Power Voltage: 55Vdc User Port Power: 60W Guaranteen |
| Input | AC Input Voltage:90 to 264Vac(100 to 240Vac Rated) Frequency: 47 to 63Hz (50/60Hz Typ.) |
| Working Environment | Operating Temperature: -40℃ to 65℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -40℃ to 85℃ Storage Humidity: 10% to 95%, non-condensation Operating Altitude: up to 5000meters |
| PoE Surge Protection | Protected line: 1,2,3,4,5,6,7,8 Common mode surge protection(10/700us): 6KV Differential mode surge protection (10/700us): 1.5KV |
| AC Surge Protection | Line-Earth 1.2/50us (8/20us): 6KV Line-Line 1.2/50us (8/20us): 4KV |

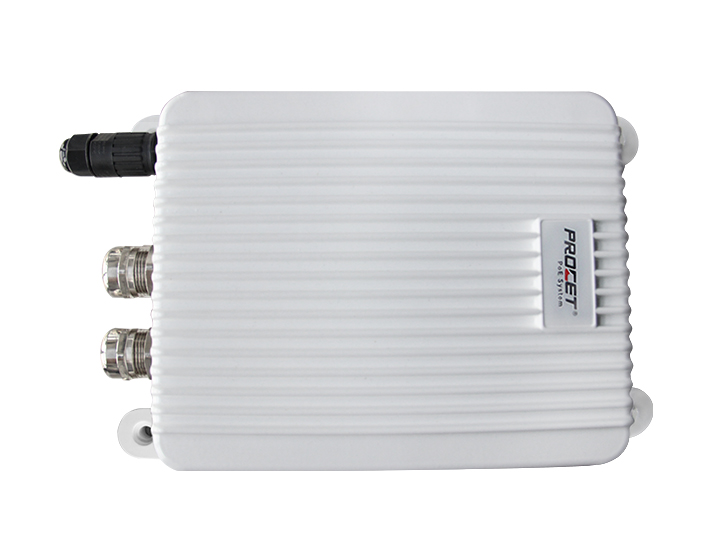

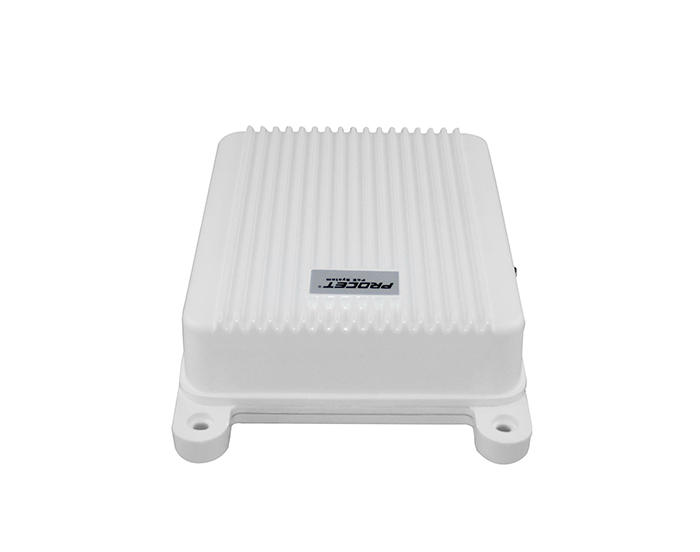

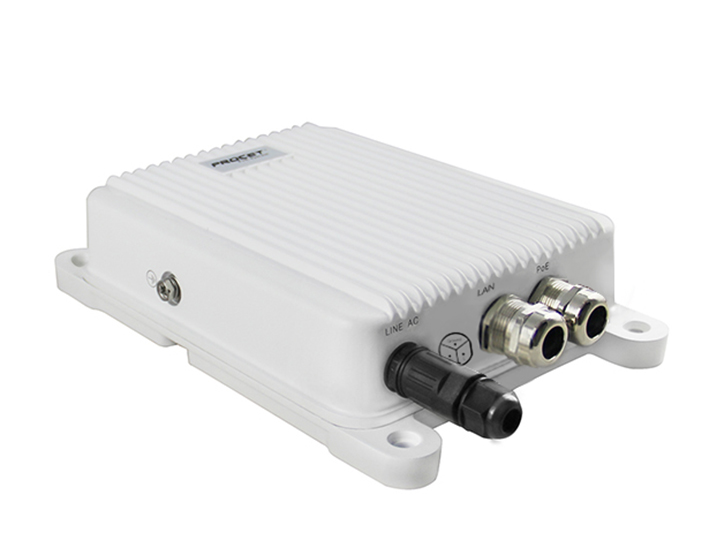

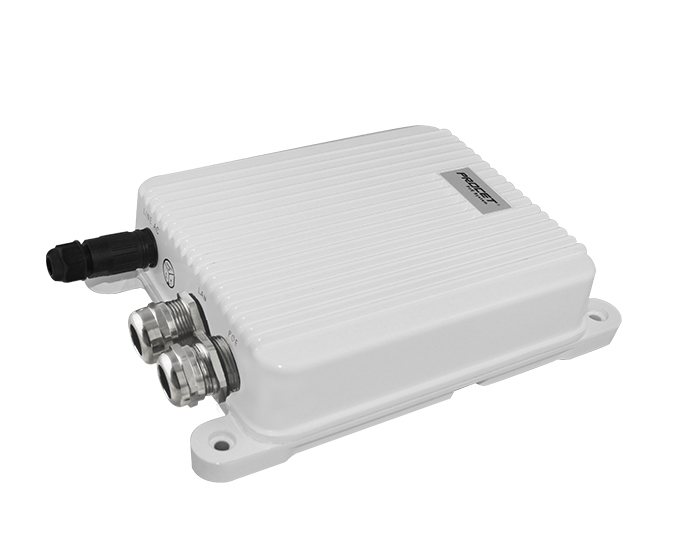

| Mechanical Characteristics | Case: Metal Color: White Mounting: Wall-mounted or Pole-mounted IP Rated: IP67 Connectors: Shielded RJ-45 Size: 176mm X 269mm X 65mm Weight: 1.8kg（3.97lb） |
| Safety Approvals | cUL/UL, CE |
Standing Stock
| Product Order Info.(Model) | PT-PSE108GWBR-OT |
| Stock Quantity | 50PCS |
| Warehouse Location | Dongguan China |
| Sample Delivery Time | Within 24H |
| Bulk Stock Delivery Time | Within 48H |
| Shipping Way | DHL,UPS,FedEx,TNT, By SEA/AIR Customer Nominated Forwarder |
| Packing Size | Qty: 5pcs/carton G.W.: 12.2Kgs Volume: 0.056m³ Packing: Export Carton Pallet size: 110 x 110cm |
