Outdoor PoE Injector

Home >> Products >> Outdoor PoE Series  >> Outdoor PoE Injector

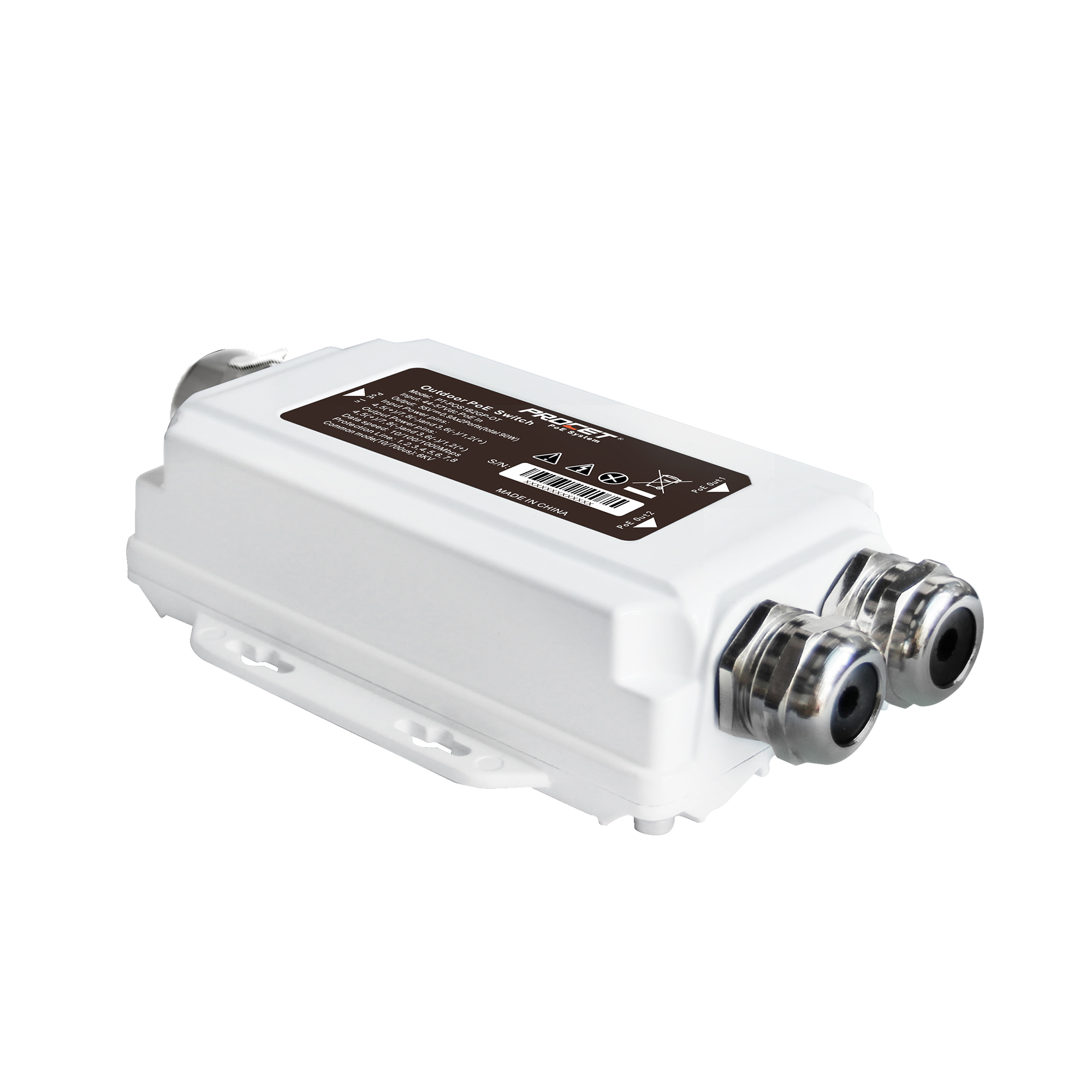

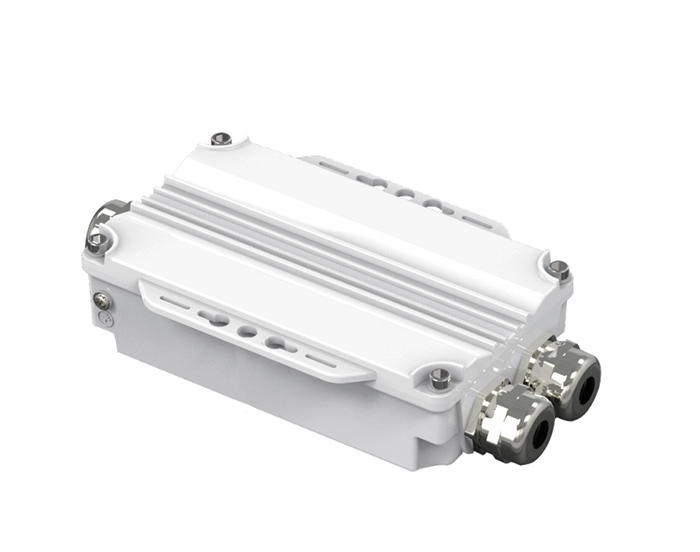

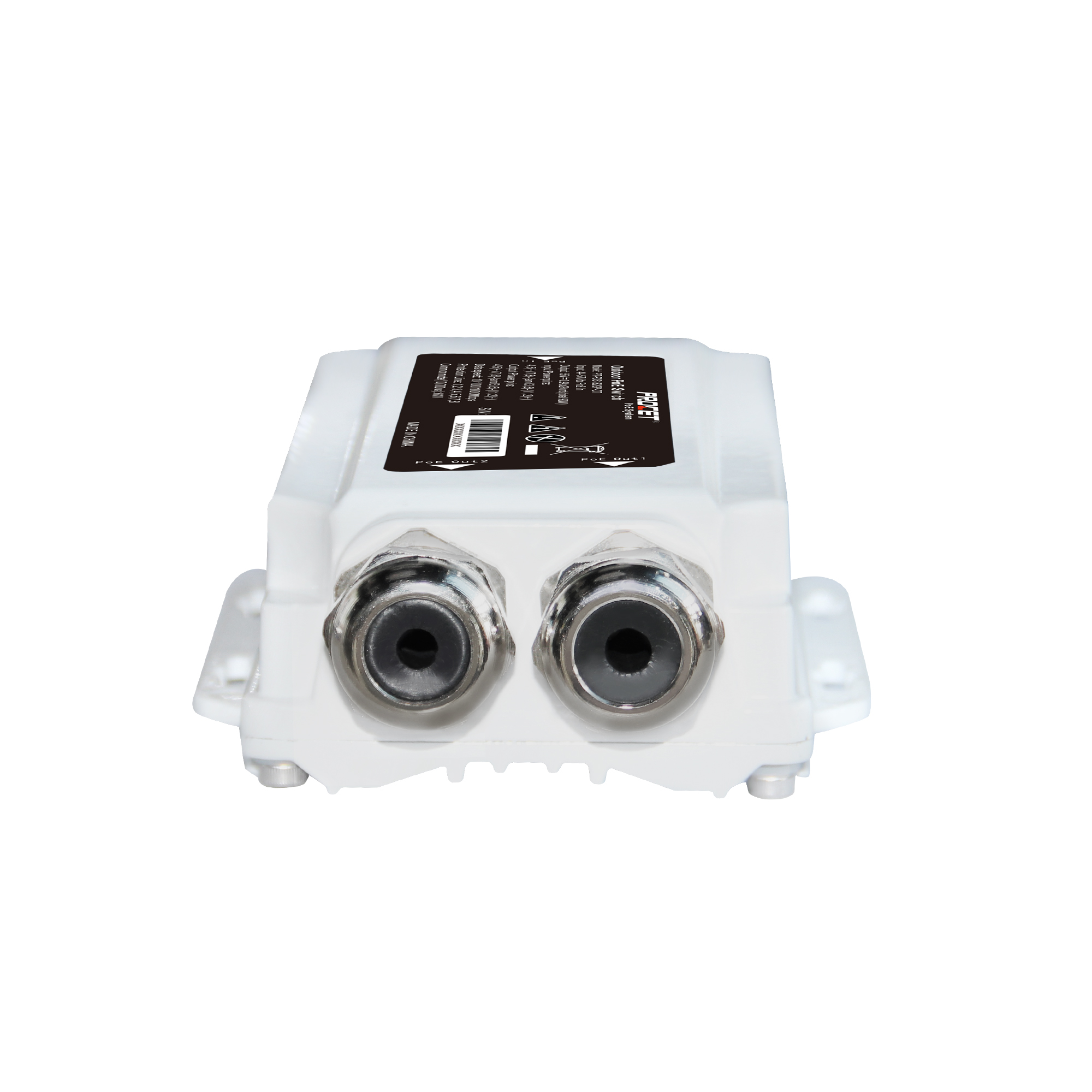

PT-PSE108GBTR-OT-10DE Outdoor High Power PoE Injector

PT-PSE108GBTR-OT-10DE belongs to 95W PoE Injector(Outdoor PoE Injector), is a single port midspan Injector with 4 Pair PoE up to 95 watts of power at 55 VDC at 1.75 amp.


It supports 10/100/1000Mbps/10GBps of data rates. Fully comply with IEEE802.3bt and remains compatible with any IEEE802.3af/at compliant devices. Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non-PoE device.

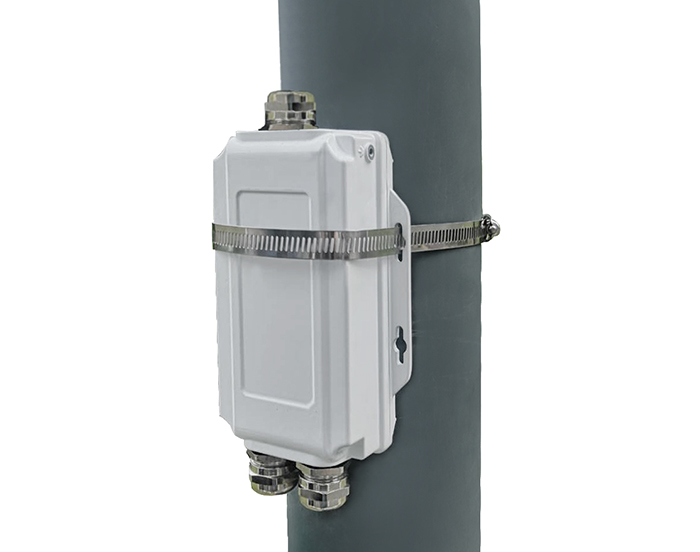

Enclosed in an IP66 fire retardant metal case, designed for outdoor installation with installation kit PT-POT-MBK, no need to open the equipment. It operates with an input voltage of 100-240 Vac. The effective distance limitation of 100 meters over Cat5e/Cat6 cables.




  • Specifications
  • Support & Dowload
  • Gallery
  • Test Results
  • Standing Stock

Specifications

ParameterDescription
Key Featuresbt standard 95W outdoor PoE injector
Part NumberPT-PSE108GBTR-OT-10DE
Ports  conditionLAN *1, AC Input*1, PoE Output *1
PoE output95W
Data rates10GBps
Power input12-55Vdc 10.0A Max
Power output55Vdc 1.75A
Regulatory ComplianceIEEE 802.3bt
RoHS Compliance
WEEE Compliance
Working EnvironmentOperating Temperature: -40℃ to 65℃
Operating Humidity: 20% to 80%, non-condensation
Storage Temperature: -40℃ to 85℃
Storage Humidity: 10% to 95%, non-condensation
Operating Altitude: up to 5000meters
AC Surge ProtectionLine-Earth 1.2/50us (8/20us): 6KV
Line-Line 1.2/50us (8/20us):4KV
Mechanical CharacteristicsSize: 187 X 101 X 42mm
Weight: 433g
Safety  ApprovalsCE, FCC
