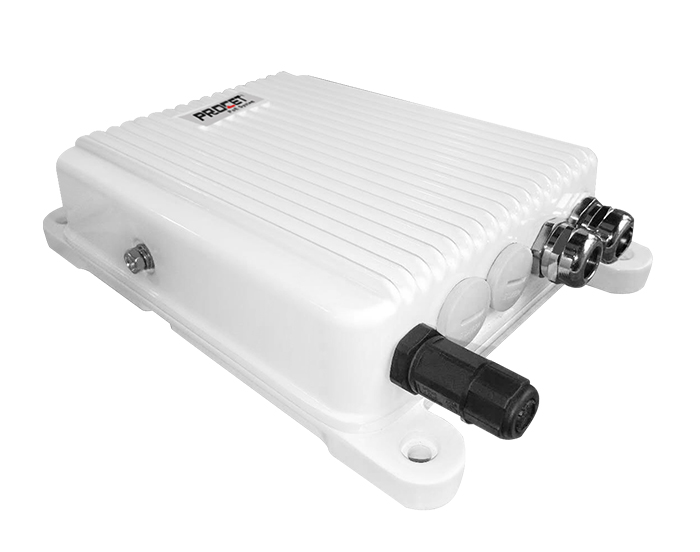

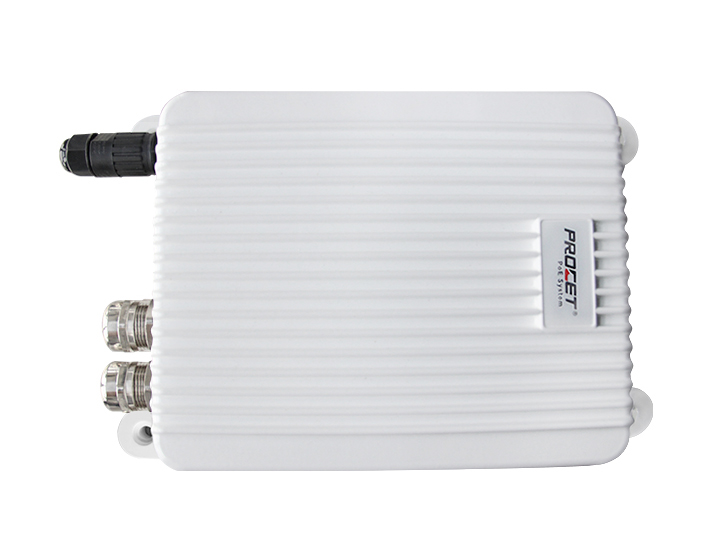

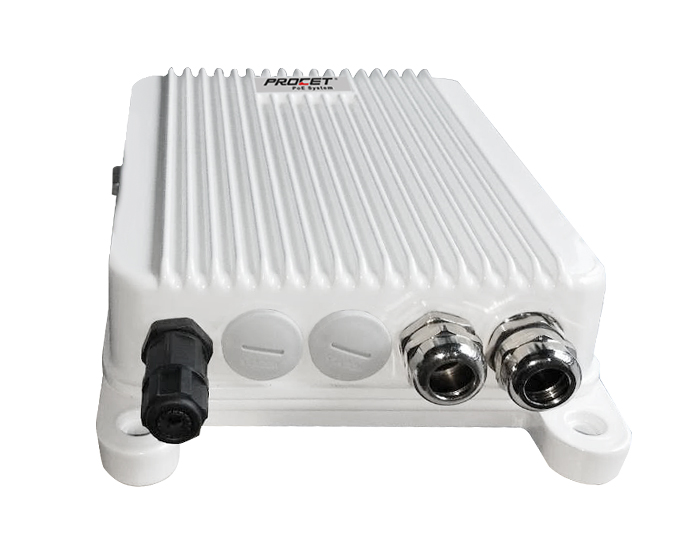

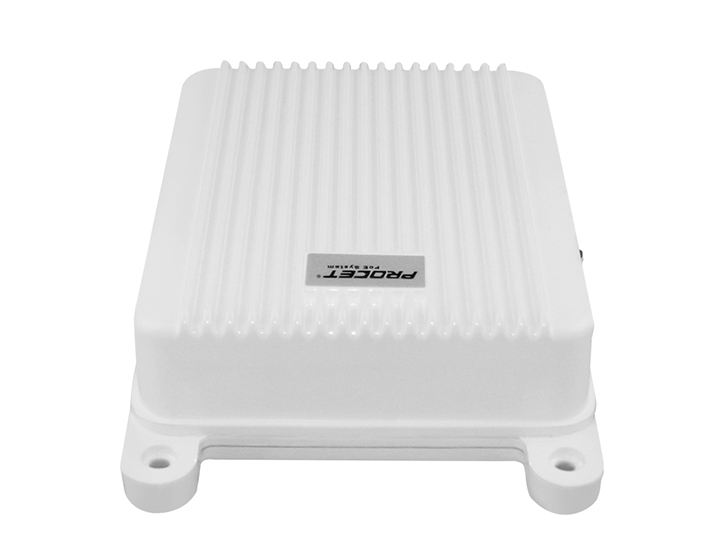

PT-PSE108GR-OT Industrial Outdoor PoE Injector with 2 Pair PoE up to 30 watts of power at 55 VDC at 0.55 amp.Designed for the PoE+ powered 30W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks, It supports 10/100/1000Mbps of data rates.
Fully comply with IEEE802.3at and remains compatible with any IEEE802.3af compliant devices. Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non PoE device.Enclosed in an IP67, IEC60529, NEMA 250 fire retardant metal case, designed for outdoor installation with Pole-mounted.
It operates with a wide input voltage of 100-240Vac, 50 or 60 Hz. The effective distance limitation of 100 meters over Cat5e/Cat6 cables , It is easy to install with installation kit PT-POT-MBK, no need to open equipment.can be extended with the PT-PEX-01G-OT(Outdoor or Indoor PoE Extender)
Specifications
| Parameter | Description |
| Key Features | Data speed: 10/100/1000Mbps(Gigabit) Input: 100-240VAC 1.5A Output: 55Vdc 0.55A，30W PoE&AC port surge protection: 6kv Wide Temperature: -40℃ to 65℃IP67 outdoor use |
| Part Number | PT-PSE108GR-OT |
| Ports condition | LAN Port*1, AC Input Port*1, PoE Output Port*1 |
| Regulatory Compliance | IEEE802.3at RoHS Compliance WEEE Compliance |
| Pass Through Data Rates | 10/100/1000 Mbps |
| Output | Pin Assignment and Polarity:4/5 (+), 7/8 (–) Output Power Voltage: 55Vdc User Port Power: 30W Guaranteen |
| Input | Input Voltage: 100-240Vac Frequency: 50/60Hz Typ |
| Working Environment | Operating Temperature: -40℃ to 65℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -40℃ to 85℃ Storage Humidity: 10% to 95%, non-condensation Operating Altitude: up to 5000meters |
| PoE Surge Protection | Protected line: 1,2,3,4,5,6,7,8 Common mode surge protection(10/700us): 6KV Differential mode surge protection (10/700us): 1.5KV |
| AC Surge Protection | Line-Earth 1.2/50us (8/20us): 6KV Line-Line 1.2/50us (8/20us):4KV |
| Mechanical Characteristics | Case: Metal Color: White Mounting: Pole-mounted IP Rated: IP67 Connectors: Shielded RJ-45*2 Size: 176X 269 X 65mm Weight: 1.8kg(3.97lb) |
| LED Indicator | Power Indicator : Green PoE Load Indicator : Yellow |
| Safety Approvals | CE, FCC |
Standing Stock
| Product Order Info.(Model) | PT-PSE108GR-OT |
| Stock Quantity | 50PCS |
| Warehouse Location | Dongguan China |
| Sample Delivery Time | Within 24H |
| Bulk Stock Delivery Time | Within 48H |
| Shipping Way | DHL,UPS,FedEx,TNT, By SEA/AIR Customer Nominated Forwarder |
| Packing Size | Qty: 5pcs/carton G.W.: 12.2KG Volume: 0.056m³ Packing: Export CartonPallet size: 110 x 110cm |
