Reliable Outdoor Power Injector

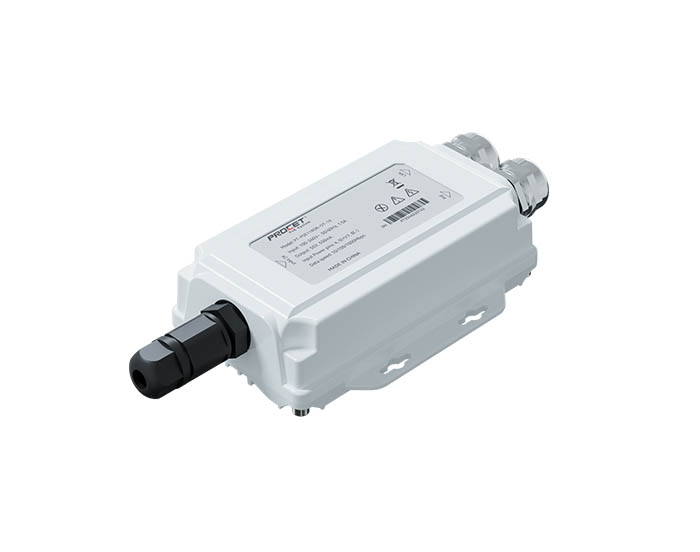

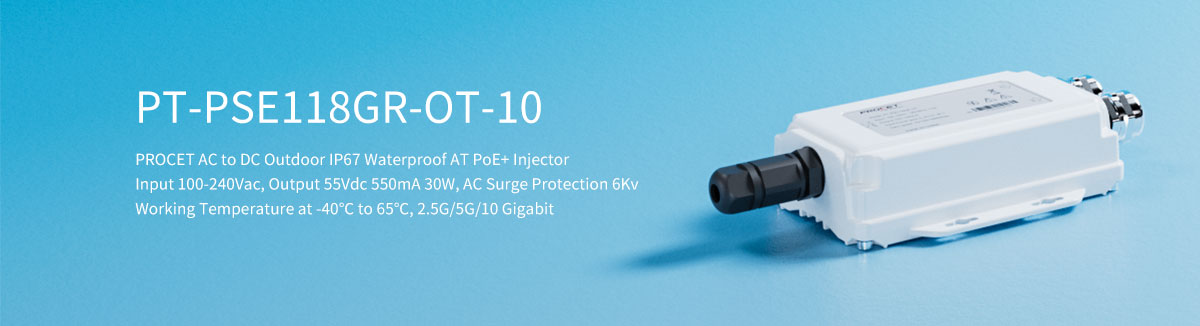

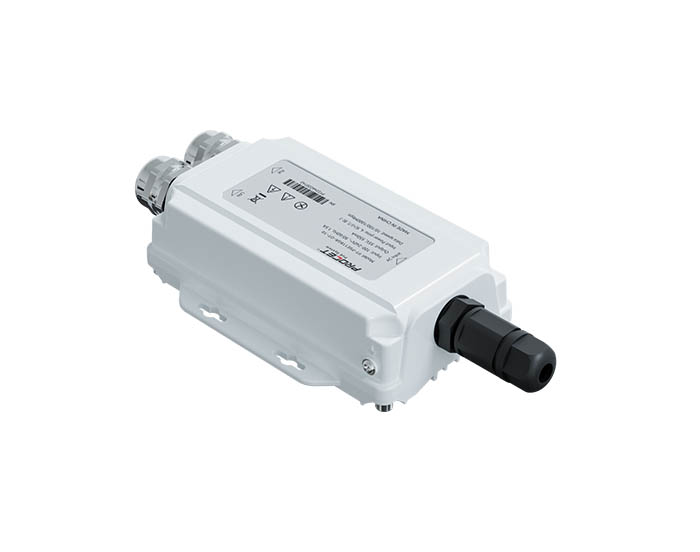

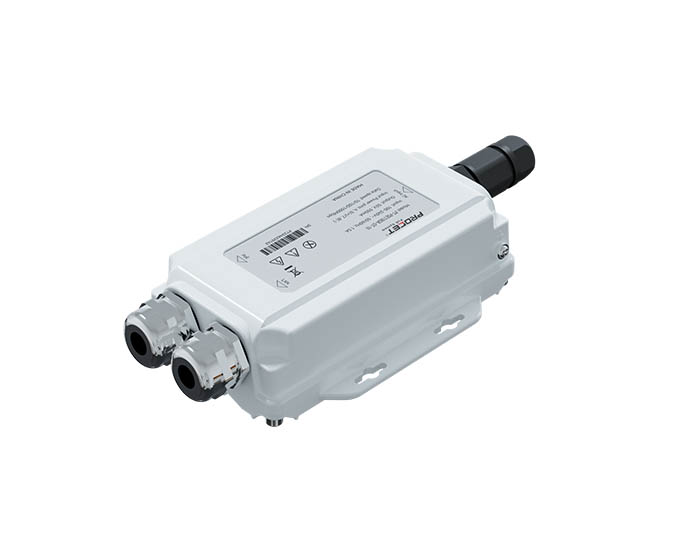

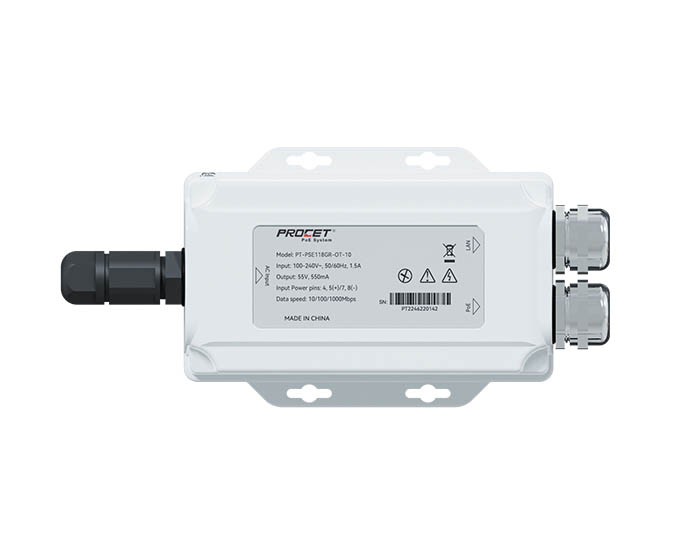

The PT-PSE118GR-OT-10 is an industrial-grade PoE injector designed for outdoor applications. It features a robust IP67-rated aluminum alloy housing with waterproof metal cable glands, offering superior protection against dust, water, and corrosion. Built to withstand harsh environments, it operates seamlessly in temperatures ranging from -40°C to 65°C, ensuring consistent performance and reliability for outdoor deployments.
30W PoE Power with 802.3AT Standard
This model supports the IEEE802.3at standard, delivering up to 30W of power output with 55VDC and 550mA, making it ideal for powering devices such as PTZ cameras, wireless access points, and base stations. With 2.5G/5G/10G data transmission, it ensures smooth and efficient communication for high-speed network applications over a distance of up to 100 meters.
Enhanced Protection for Secure Operation
Equipped with advanced surge protection (6KV common mode and 1.5KV differential mode), the PT-PSE118GR-OT-10 safeguards connected devices from power surges and fluctuations. Its compliance with EN55032 EMC standards ensures strong electromagnetic immunity, making it a reliable and secure power solution for outdoor installations.

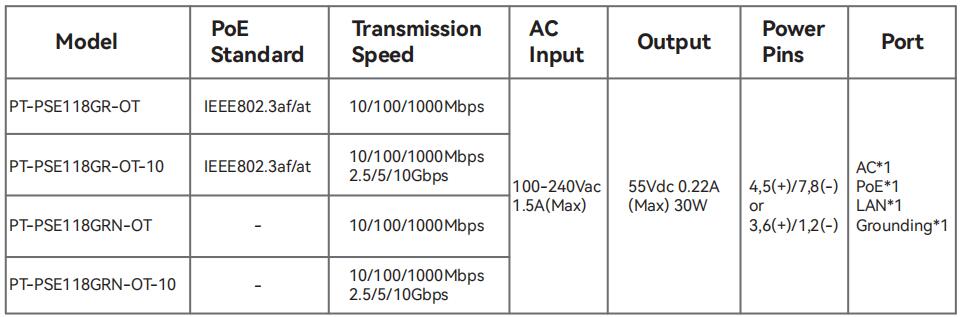

Specifications
| Key Features | IP67 Waterproof and Dustproof: Durable aluminum alloy housing with metal cable glands for outdoor use. Wide Temperature Range: Reliable performance from -40°C to 65°C, with full-load startup at -40°C. High-Speed Data Transmission: Supports 1G/2.5G/5G/10GbE PoE Power Compatibility: Provides up to 30W output for IEEE802.3af/at PD devices like PTZ cameras and wireless APs. Advanced Surge Protection: 6KV common mode and 1.5KV differential mode surge protection for stable operation. |
| Part Number | PT-PSE118GR-OT-10 |
| Ports condition | PoE Port*1, AC Input Screw Terminal Connector *1, LAN Port *1 |
| Regulatory Compliance | IEEE802.3af/at RoHS Compliance WEEE Compliance |
| Pass Through Data Rates | 10/100/1000 Mbps & 2.5/5/10GbE |
| Output | Pin Assignment and Polarity: 4/5(+), 7/8(-) Output Power Voltage: 55Vdc/0.55A User Port Power: 30W Guaranteen |
| Input | AC Input Voltage:100 to 240Vac 1.5A Frequency: 50/60Hz Typ |
| Working Environment | Operating Temperature: -40℃ to 65℃ Operating Humidity: 20% to 90%, non-condensation Storage Temperature: -40℃ to 85℃ Storage Humidity: 10% to 95%, non-condensation Operating Altitude: up to 2000meters |
| PoE Surge Protection | Protected line: 1,2,3,4,5,6,7,8 Common mode surge protection(10/700us): 6KV Differential mode surge protection (10/700us): 1.5KV |
| AC Surge Protection | Line-Earth 1.2/50us (8/20us): 6KV Line-Line 1.2/50us (8/20us): 4KV |
| Mechanical Characteristics | Case: Aluminum Alloy Color: White Mounting: Pole Mounted/Wall Mounted IP Rated: IP67 Connectors: Shielded RJ-45*2 Size: 211mm X 101mm X 42mm Weight: 0.625kg(1.38lb) |
| Safety Approvals | CE, FCC |
