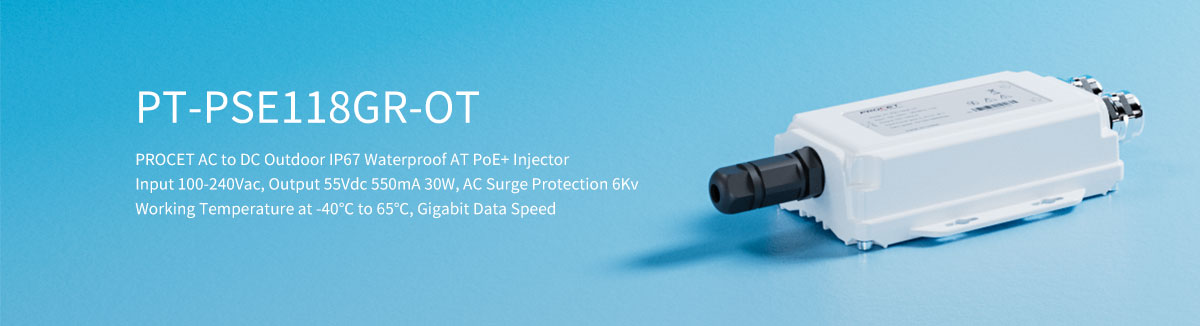

PT-PSE118GR-OT IP67 Outdoor AC to 30W PoE Injector for Harsh Environments

Reliable Outdoor Power Injector

The PT-PSE118GR-OT is an industrial-grade PoE injector designed for outdoor applications. It features a robust IP67-rated aluminum alloy housing with waterproof metal cable glands, offering superior protection against dust, water, and corrosion. Built to withstand harsh environments, it operates seamlessly in temperatures ranging from -40°C to 65°C, ensuring consistent performance and reliability for outdoor deployments.


30W PoE Power with 802.3AT Standard

This model supports the IEEE802.3at standard, delivering up to 30W of power output with 55VDC and 550mA, making it ideal for powering devices such as PTZ cameras, wireless access points, and base stations. With 10/100/1000Mbps data transmission, it ensures smooth and efficient communication for high-speed network applications over a distance of up to 100 meters.


Enhanced Protection for Secure OperationEquipped with advanced surge protection (6KV common mode and 1.5KV differential mode), the PT-PSE118GR-OT safeguards connected devices from power surges and fluctuations. Its compliance with EN55032 EMC standards ensures strong electromagnetic immunity, making it a reliable and secure power solution for outdoor installations.


  • Specifications
  • Support & Dowload
  • Gallery
  • Test Results
  • Standing Stock

Specifications

Key FeaturesIP67 Waterproof and Dustproof: Durable aluminum alloy housing with metal cable glands for outdoor use.
Wide Temperature Range: Reliable performance from -40°C to 65°C, with full-load startup at -40°C.
High-Speed Data Transmission: Supports 10/100/1000Mbps
PoE Power Compatibility: Provides up to 30W output for IEEE802.3af/at PD devices like PTZ cameras and wireless APs.
Advanced Surge Protection: 6KV common mode and 1.5KV differential mode surge protection for stable operation.

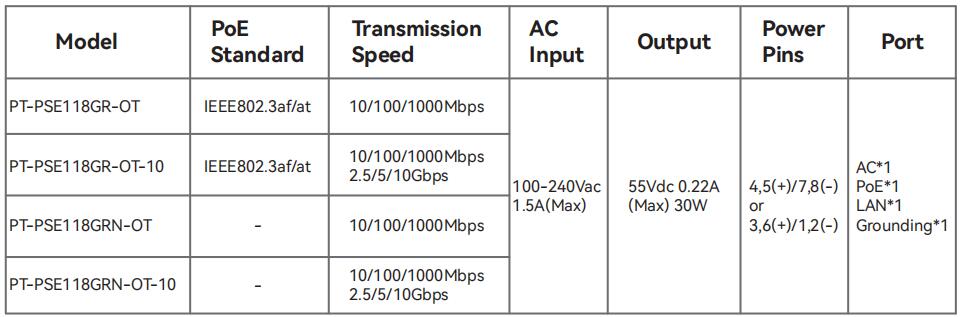

Part NumberPT-PSE118GR-OT
Ports conditionPoE Port*1, AC Input Screw Terminal Connector *1, LAN Port *1
Regulatory ComplianceIEEE802.3af/at
RoHS Compliance
WEEE Compliance
Pass Through Data Rates10/100/1000 Mbps
OutputPin Assignment and Polarity:
4/5(+), 7/8(-)
Output Power Voltage: 55Vdc/0.55A
User Port Power: 30W Guaranteen
InputAC Input Voltage:100 to 240Vac 1.5A
Frequency: 50/60Hz Typ
Working EnvironmentOperating Temperature: -40℃ to 65℃
Operating Humidity: 20% to 90%, non-condensation
Storage Temperature: -40℃ to 85℃
Storage Humidity: 10% to 95%, non-condensation
Operating Altitude: up to 2000meters
PoE Surge ProtectionProtected line: 1,2,3,4,5,6,7,8
Common mode surge protection(10/700us): 6KV
Differential mode surge protection (10/700us): 1.5KV
AC Surge ProtectionLine-Earth 1.2/50us (8/20us): 6KV
Line-Line 1.2/50us (8/20us): 4KV

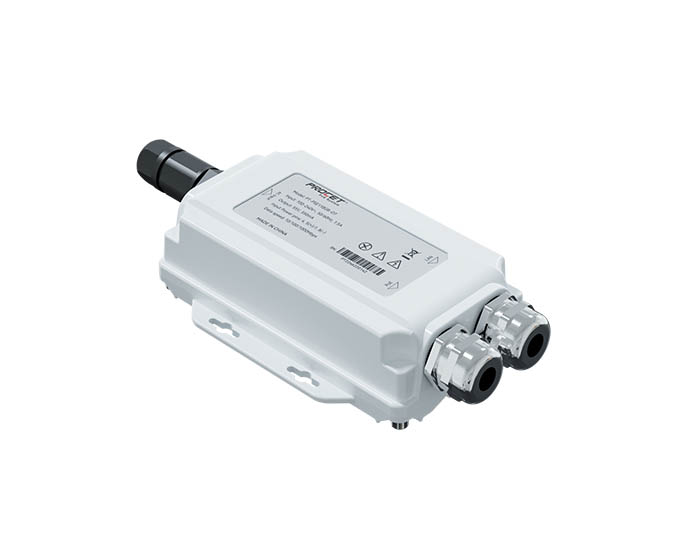

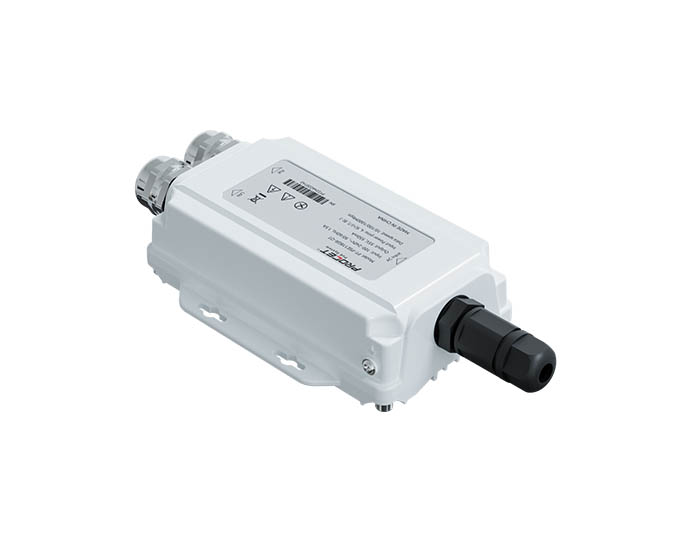

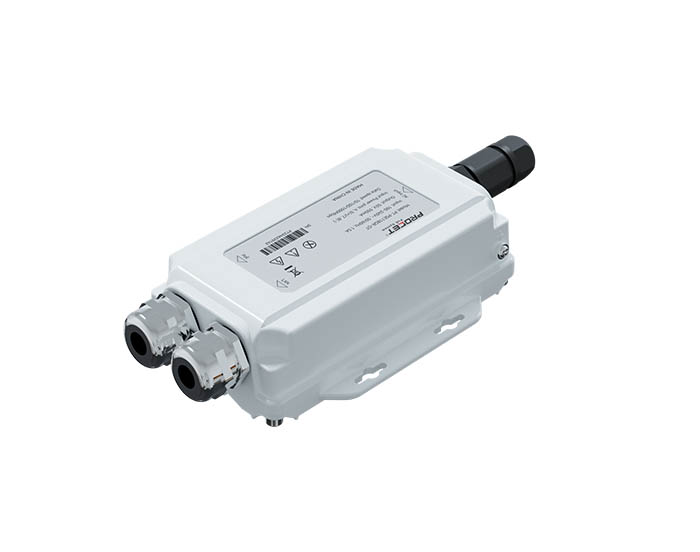

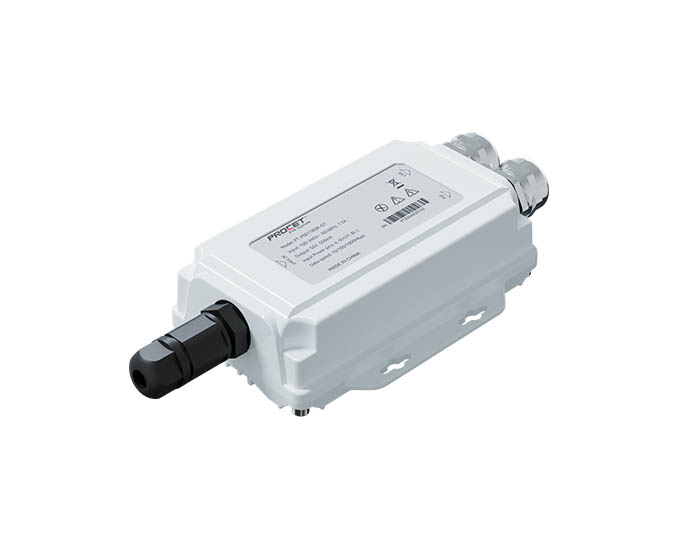

Mechanical CharacteristicsCase: Aluminum Alloy
Color: White
Mounting: Pole Mounted/Wall Mounted
IP Rated: IP67
Connectors: Shielded RJ-45*2
Size: 211mm X 101mm X 42mm
Weight: 0.625kg(1.38lb)
Safety ApprovalsCE, FCC
