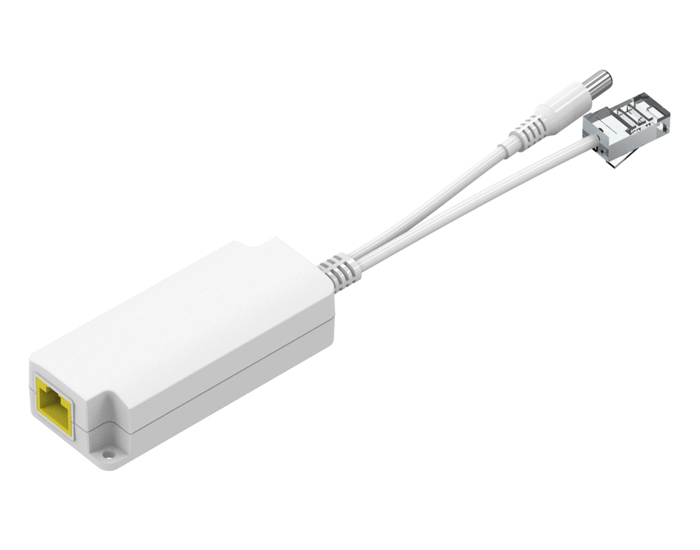

PTD-AF-5V PoE to DC 5V Splitter with 4 Pair PoE up to 12.5 watts of power at 5VDC
It works as a converter separating power and data from PoE injector and delivering power and data to non-PoE devices. It supports 10/100Mbps of data speed. It works for 12.5W non-PoE PDs, such as high power communication station, wireless APs, network cameras and other non-PoE terminals. It is an isolated design inside to avoid high current input damage. Innovative technology increase energy-efficient up to 93%.

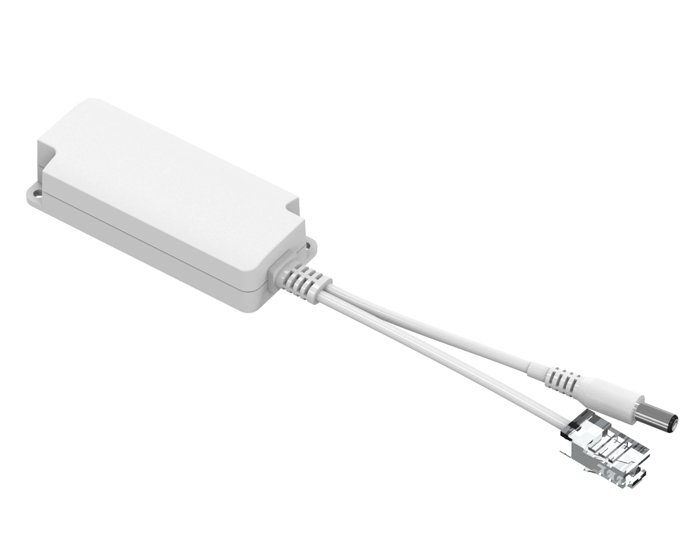

Enclosed in a high-impact metal shell, designed for indoor installation. It operates with input voltage of 40-57 VDC. The effective distance limitation of 100 meters over Cat5e/Cat6 cables. The model is easy to install with four mounting holes.
Specifications
| Parameter | Description |
| Key Features | 12.5W indoor PoE Splitter |
| Part Number | PTD-AF-5V |

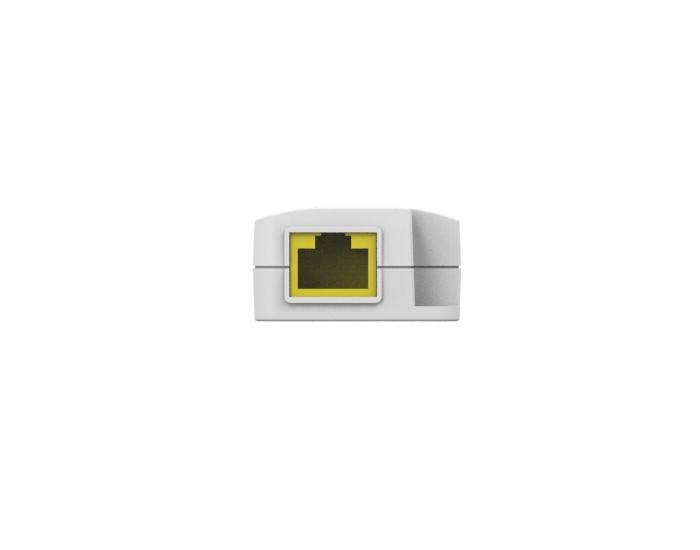

| Ports condition | RJ45 Female*1, RJ45 Male*1 DC Male Jack support 5.5*2.1mm&5.5*2.5mm |
| PoE output | 12.5W |
| Data rates | 10/100Mbps |
| Power input | 40-57Vdc IEE802.3af/at |
| Power output | 5Vdc 2.0A @0 to 55℃, 5Vdc 2.5A(max) @0 to 40℃ |
| Regulatory Compliance | IEEE 802.3af RoHS Compliance WEEE Compliance |
| Working Environment | Operating Temperature: -0℃ to 40℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -20℃ to 70℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 2000meters |
| Mechanical Characteristics | Size: (82.3+124.81)mm X 34.7mm X 19mm Weight: 200g |
| Safety Approvals | CE, FCC |
