PT-PD208GBH-5/12/24 is a single port splitter with 4 Pair PoE up to 95 watts of power at 55 VDC .
It works as a converter separating power and data from PoE injector and delivering power and data to non-PoE devices.It supports 10/100/1000Mbps of data speed. It works for 95W non-PoE PDs, such as high power communication station, wireless APs, network cameras and other non-PoE terminals. It is an isolated design inside to avoid high current input damage. Innovative technology increase energy-efficient up to 93%.

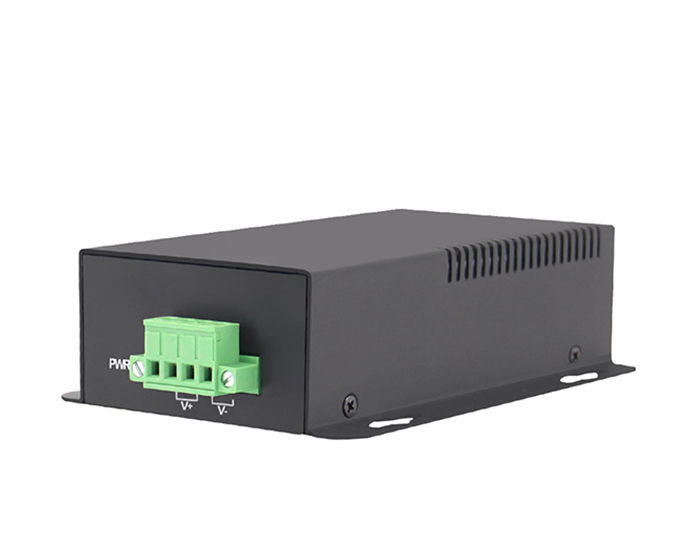

Enclosed in a high-impact metal shell, designed for indoor installation. It operates with input voltage of 40-57 VDC. The effective distance limitation of 100 meters over Cat5e/Cat6 cables. The model is easy to install with four mounting holes.
Specifications
| Parameter | Description |
| Key Features | Works for 95W non-PoE PDs Matel shell Isolated design |
| Part Number | PT-PD208GBH-5/12/24 |

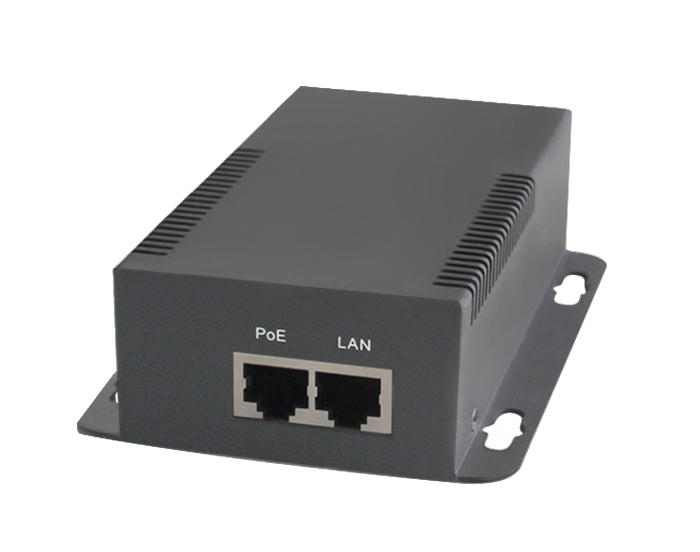

| Ports condition | PoE input Port*1, DC Output connector *1, LAN Output Port*1 |
| Regulatory Compliance | IEEE802.3 bt RoHS Compliance WEEE Compliance |
| Pass Through Data Rates | 10/100/1000 Mbps |
| Output | Pin Assignment and Polarity: 4/5 (+), 7/8 (–) and 3/6(+),1/2(-) Output Power Voltage:5Vdc or 12Vdc or 24Vdc User Port Power: 95W Guaranteen |
| Input | Operating Voltage: 40 to 57 Vdc Power Current: 1.0A |
| Working Environment | Operating Temperature: 0℃ to 40℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -20℃ to 70℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 2000meters |

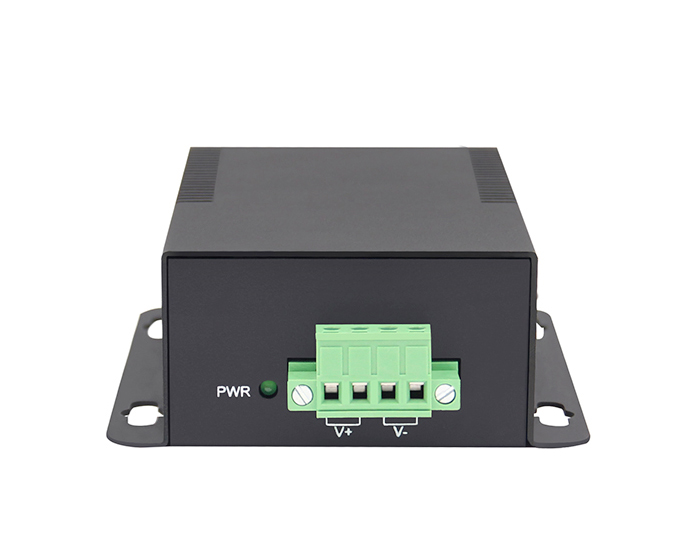

| Mechanical Characteristics | Case: Metal Color: Black Mounting: Wall-mounted IP Rated: IP20 Connectors: Shielded RJ-45*2, DC Output connector *1 Size: 128mmX 89mmX 36mm Weight: 350g |
| LED Indicator | Power output Indicator : Green |
Standing Stock
| Product Order Info.(Model) | PT-PD208GBH-5/12/24 |
| Stock Quantity | 100PCS |
| Warehouse Location | Dongguan China |
| Sample Delivery Time | Within 24H |
| Bulk Stock Delivery Time | Within 48H |
| Shipping Way | DHL,UPS,FedEx,TNT, By SEA/AIR Customer Nominated Forwarder |
| Packing Size | Qty: 20pcs/carton G.W.: 16Kgs Volume: 0.06 m³ Packing: Export Carton Pallet size: 110 x 110cm |
