PT-PD208GMO-5/12/24, IEEE802.3 at PoE splitter with isolated design. It works for 20/25.8/25.2W non-PoE PDs, such as network phone, wireless AP, network camera ONU (Optical Network Unit).
Its output power is 5Vdc 4A or 12Vdc 2.15A or 24Vdc 1.05A. It supports 10/100/1000Mbps of data speed. The power pin: 4/5(+), 7/8(-) .It is an isolated design inside to avoid high current input damage.
PT-PD208GMO-5/12/24 is designed for indoor use with matel shell. It works with input voltage of 40-57Vdc from PoE injector and operates under -40℃ to 65 ℃. The effective distance is 100 meters over Cat5e/Cat6 cables. The model is small in size and easy to install with four mounting holes.
Specifications
| Parameter | Description |
| Key Features | Matel shell Isolated design Pin 4/5(+), 7/8(-) |
| Part Number | PT-PD208GM-5/9/12/24 |

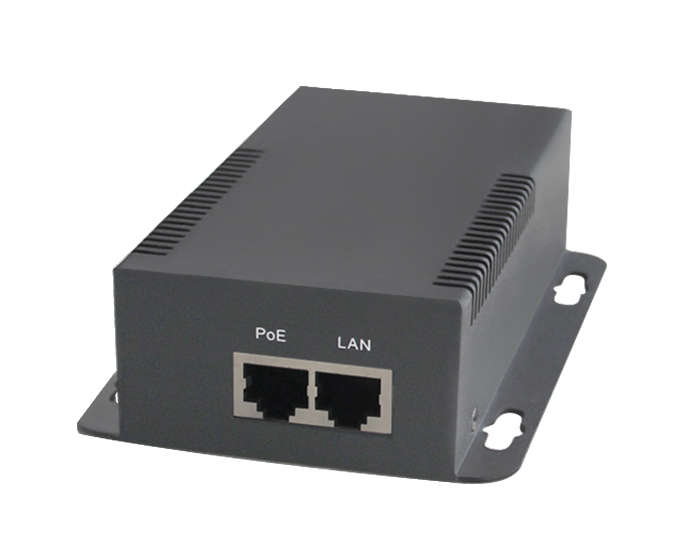

| Ports condition | LAN Port*1, Input PoE Port*1, DC Output Port*1 |
| Regulatory Compliance | IEEE802.3at RoHS Compliance WEEE Compliance |
| Pass Through Data Rates | 10/100/1000 Mbps |
| Output | Pin Assignment and Polarity: 4/5(+), 7/8(-) Power Voltage: 5Vdc or 12Vdc or 24Vdc Power Current: 4A or 2.15A or 1.05A User Port Power:20/25.8/25.2W Guaranteen |
| Input | Operating Voltage: 40-57Vdc (Typical 55V) Power Current: 1.0A |
| Working Environment | Operating Temperature: -40℃ to 65℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -40℃ to 85℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 2000meters |

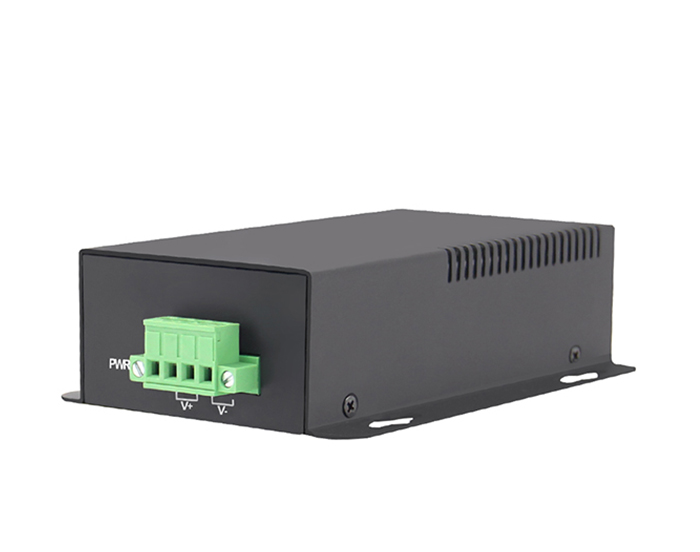

| Mechanical Characteristics | Case: Metal Color: Black Mounting: Wall-mounted IP Rated: IP20 Connectors: Shielded RJ-45*2, DC Terminal*1 Size: 128mm X 89mm X 36mm Weight: 350g |

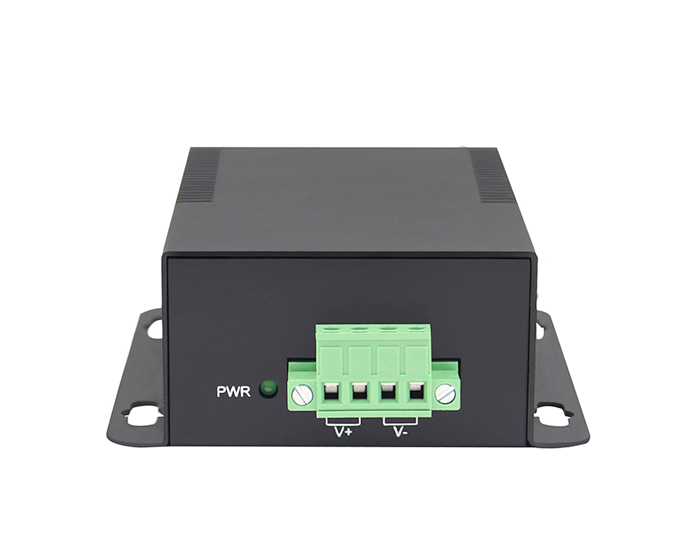

| LED Indicator | Power Indicator: Green |
| Safety Approvals | CE/FCC |
Standing Stock
| Product Order Info.(Model) | PT-PD208GMO-5 |
| Stock Quantity | 100PCS |
| Warehouse Location | Dongguan China |
| Sample Delivery Time | Within 24H |
| Bulk Stock Delivery Time | Within 48H |
| Shipping Way | DHL,UPS,FedEx,TNT, By SEA/AIR Customer Nominated Forwarder |
| Packing Size | Qty:20pcs/carton G.W.:16Kgs Volume:0.06 m³ Packing: Export Carton Pallet size:110 x 110cm |
