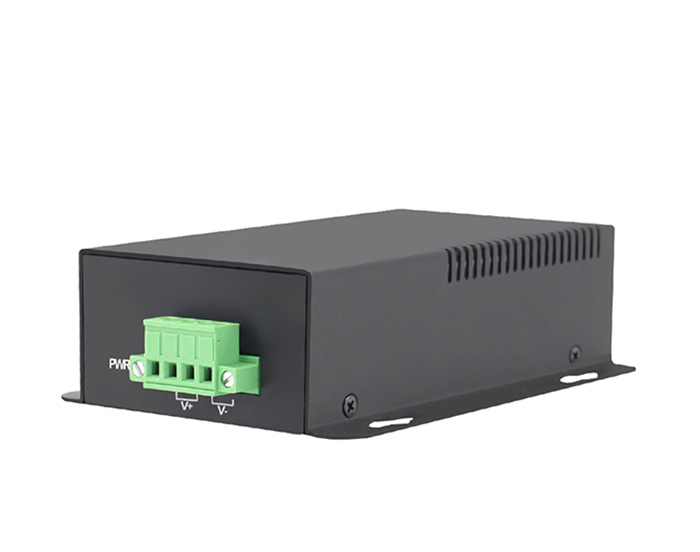

PT-PD208GM-5/9/12/24, IEEE802.3 at PoE splitter with isolated design. It works for 20/22.5/25.8/25.2W non-PoE PDs, such as network phone, wireless AP, network camera ONU (Optical Network Unit).
Its output power is 5Vdc 4A or 9Vdc 2.5A or 12Vdc 2.15A or 24Vdc 1.05A. It supports 10/100/1000Mbps of data speed. The power pin: 4/5(+), 7/8(-) .It is an isolated design inside to avoid high current input damage.
PT-PD208GM-5/9/12/24 is designed for indoor use with matel shell. It works with input voltage of 40-57Vdc from PoE injector. The effective distance is 100 meters over Cat5e/Cat6 cables. The model is small in size and easy to install with four mounting holes.
Specifications
| Parameter | Description |
| Key Features | Matel shell Isolated design Pin 4/5(+), 7/8(-) |
| Part Number | PT-PD208GM-5/9/12/24 |

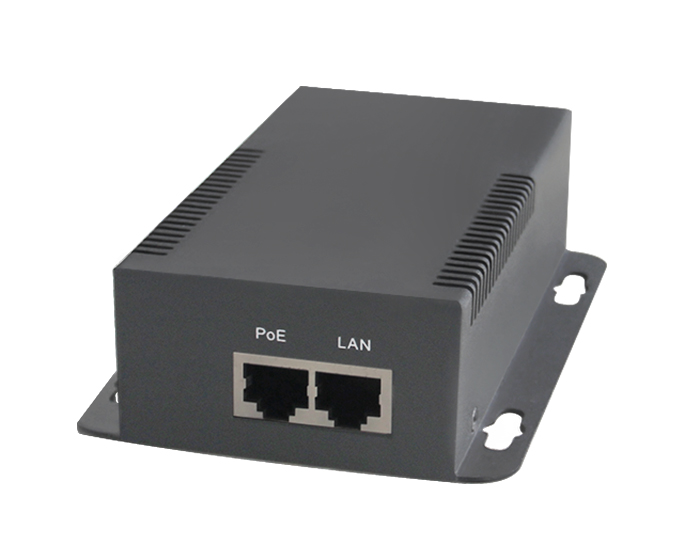

| Ports condition | LAN Port*1, Input PoE Port*1, DC Output Port*1 |
| Regulatory Compliance | IEEE802.3at RoHS Compliance WEEE Compliance |
| Pass Through Data Rates | 10/100/1000 Mbps |
| Output | Pin Assignment and Polarity: 4/5(+), 7/8(-) Power Voltage: 5Vdc or 9Vdc or 12Vdc or 24Vdc Power Current: 4A or 2.5A or 2.15A or 1.05A User Port Power:20/22.5/25.8/25.2W Guaranteed |
| Input | Operating Voltage: 40-57Vdc (Typical 55V) Power Current: 1.0A |
| Working Environment | Operating Temperature: -20°C to 65°C Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -20℃ to 85℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 2000meters |

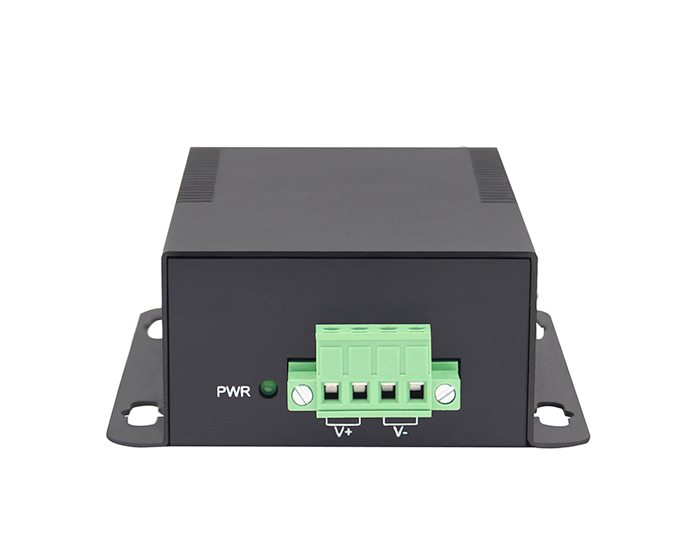

| Mechanical Characteristics | Case: Metal Color: Black Mounting: Wall-mounted IP Rated: IP20 Connectors: Shielded RJ-45*2, DC Terminal*1 Size: 128mm X 89mm X 36mm Weight: 350g |
| LED Indicator | Power Indicator: Green |
| Safety Approvals | CE/FCC |
Standing Stock
| Product Order Info.(Model) | PT-PD208GM-5/9/12/24 |
| Stock Quantity | 100PCS |
| Warehouse Location | Dongguan China |
| Sample Delivery Time | Within 24H |
| Bulk Stock Delivery Time | Within 48H |
| Shipping Way | DHL,UPS,FedEx,TNT, By SEA/AIR Customer Nominated Forwarder |
| Packing Size | Qty: 20pcs/carton G.W.: 16Kgs Volume: 0.06 m³ Packing: Export Carton Pallet size: 110 x 110cm |
