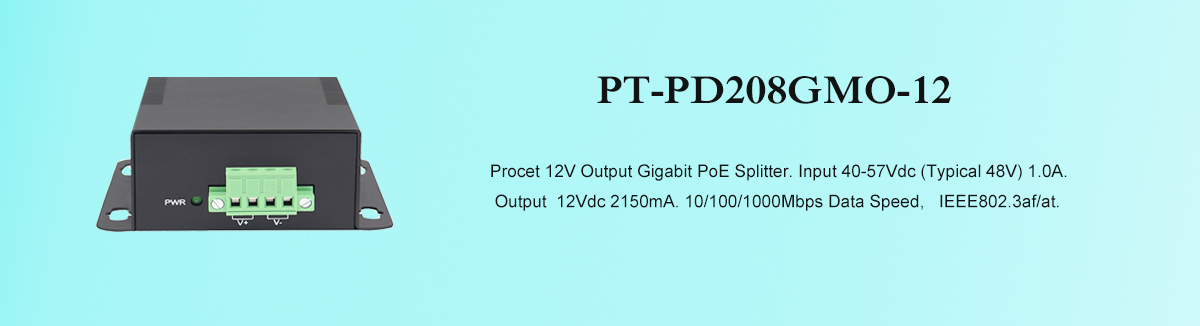

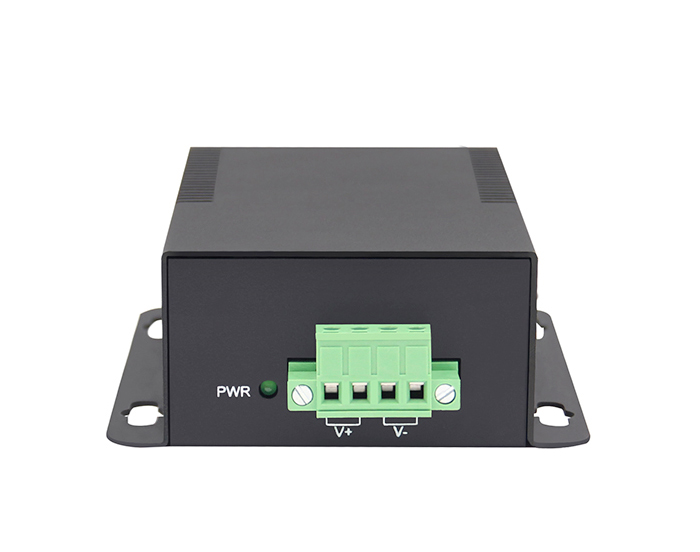

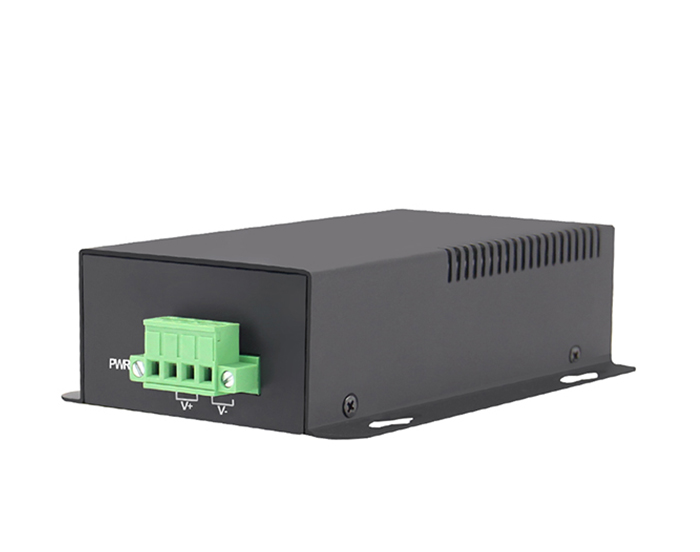

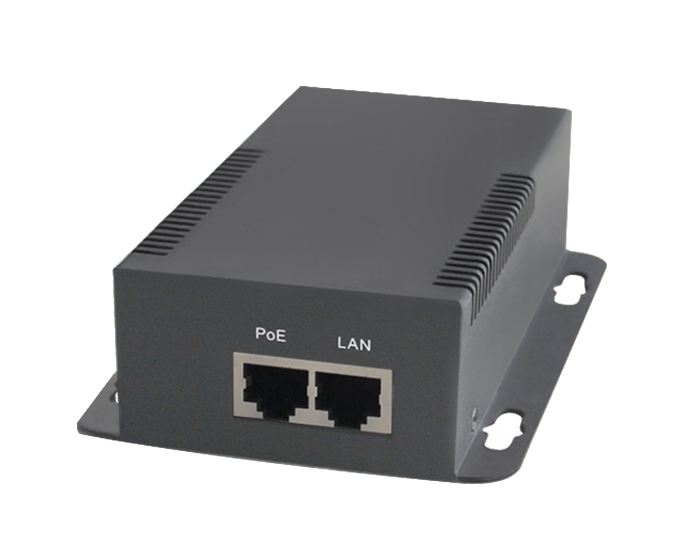

PT-PD208GMO-12, IEEE802.3at PoE splitter with isolated design. It works for 25.8 non-PoE PDs, such as network phone, wireless AP, network camera ONU (Optical Network Unit).
Its output power is 12Vdc 2.15A. It supports 10/100/1000Mbps of data speed. The power pin: 4/5(+), 7/8(-). It is an isolated design inside to avoid high current input damage.
PT-PD208GMO-12 is designed for indoor use with a metal shell. It works with input voltage of 40-57Vdc from PoE injector and operates from -40℃ to 65 ℃. The effective distance is 100 meters over Cat5e/Cat6 cables. The model is small in size and easy to install with four mounting holes.
Specifications
| Parameter | Description |
| Key Features | af standard 25.8W industrial PoE Splitter |
| Part Number | PT-PD208GMO-12 |
| Ports condition | LAN Port*1, Input PoE Port*1, DC Output Port*1 |
| PoE output | 25.8W |
| Data rates | 10/100/1000Mbps |
| Power input | PoE+ 802.3at |
| Power output | 12V/2.15A |
| Regulatory Compliance | IEEE 802.3at RoHS Compliance WEEE Compliance |
| Working Environment | Operating Temperature: -40℃ to 65℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -40℃ to 85℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 2000meters |
| AC Surge Protection | Line-Earth 1.2/50us (8/20us): 2KV Line-Line 1.2/50us (8/20us): 1KV |
| Mechanical Characteristics | Size: 128mm X 89mm X 36mm Weight: 350g |
| Safety Approvals | CE, FCC |
