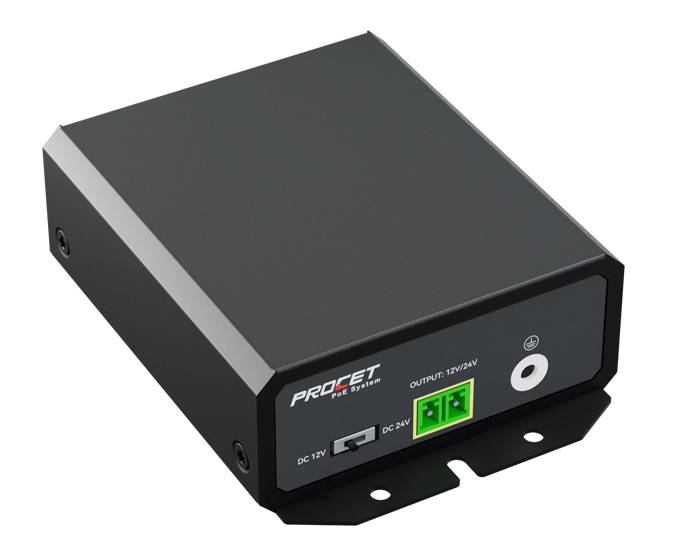

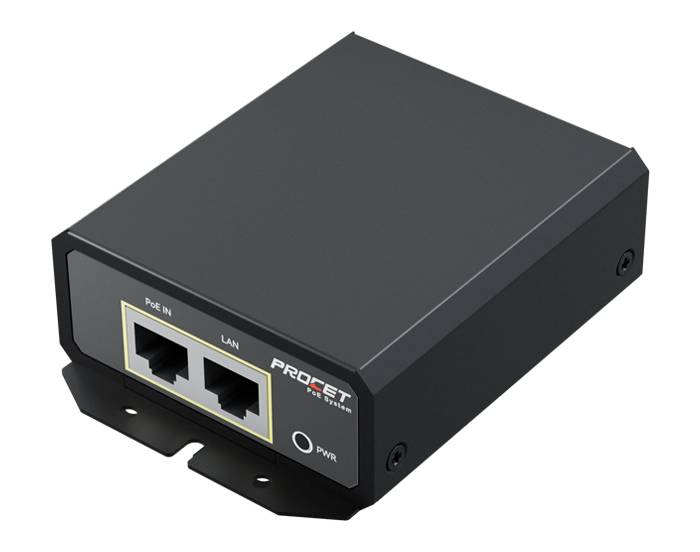

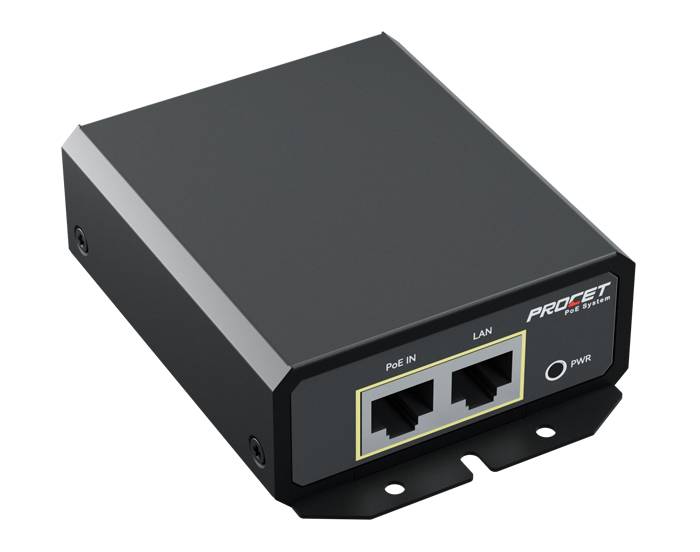

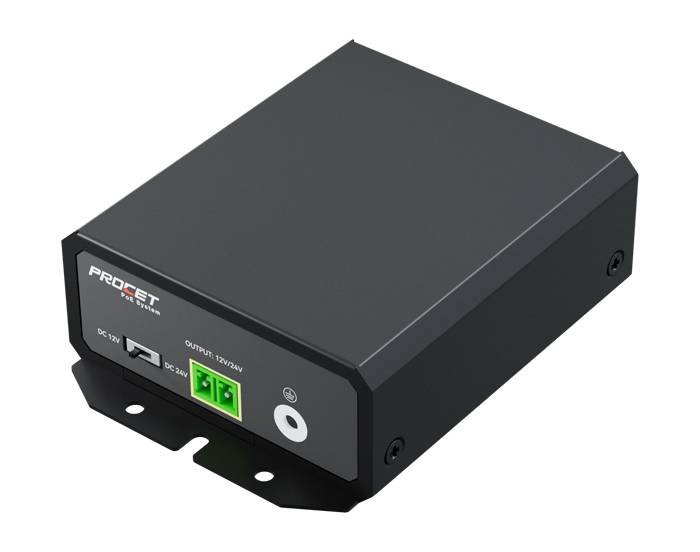

PT-PD208GT is a single-port PoE splitter with a high-impact metal shell. It works as a converter separating power and data from the PoE source and then delivering power and data to non-PoE devices. DIP switch for 12V and 24V adjustable output voltage. Working for 25W non-PoE PDs, such as power communication stations, wireless APs, network cameras, and other non-PoE terminals. Supporting 10/100/1000Mbps of data speed.It is powered by IEEE802.3at standard PSE or PoE+ Switch at 30W. The effective distance is 100 meters over Cat5e/Cat6 cables from data source to terminal device. Isolated design inside to avoid high current input damage. The model is easy to install with two mounting holes.
It is powered by IEEE802.3at standard PSE or PoE+ Switch at 30W. The effective distance is 100 meters over Cat5e/Cat6 cables from data source to terminal device. Isolated design inside to avoid high current input damage. The model is easy to install with two mounting holes.
Specifications
| Parameter | Description |
| Key Features | Industrial-rated PoE Splitter |
| 802.3af/at/PoE+ standard | |
| DlP switch for 12V and 24V adjustable output voltage | |
| Working Temperature：-40℃ to 65℃ | |
| Part Number | PT-PD208GT |
| Standard | IEEE802.3 10Base-T Ethernet |
| IEEE802.3u 100Base-Tx Fast Ethernet | |
| IEEE802.3ab 1000Base-T Gigabit | |
| Full compliant with IEEE802.3af/at/PoE+ | |
| RoHS & WEEE Compliance | |
| Ports condition | Interface：12/24 VDC*1 Grounding*1 PoE IN*1 LAN*1 |
| Regulatory Compliance | IEEE802.3bz |
| RoHS Compliance | |
| WEEE Compliance | |
| Interface | 50-56 VDC*2 Grounding*1 PoE*1 LAN*1 |
| Output | Pin Assignment and Polarity: |
| Output:12Vdc 2.15A Max 24Vdc 1.05A Max | |
| Data Speed:10/100 / 1000Mbps | |
| Input | Input:40-57Vdc 2.0A Max |
| PoE Standard: IEEE802.3af/at/PoE+ | |
| Power Pins:4/5(+),7/8(-) &3/6(+),1/2(-) | |
| Operating Environment | Working Temperature:12/24Vdc 25W @-25℃ to 40℃ 12/24Vdc 13W @-25℃ to 65℃ |
| Operating Humidity: 20% to 80%, non-condensation | |
| Operating Altitude: Up to 2000 meters | |
| Storage Humidity: 20%-80%，non-condensation | |
| Storage Temperature: -20℃ to 70℃ | |
| PoE Surge Protection | Protected line:1,2,3,4,5,6,7,8 |
| Common mode surge protection(10/700us): 6KV | |
| Differential mode surge protection (10/700us): 1.5KV | |
| Network Protocol | IEEE802.3/IEEE802.3u/IEEE802.3ab |
| Media Support | 10 / 100 / 1000BASE-TXCat5 or above UTP（≤328 feets） |
| Regulatory Compliance | CE FCC |
| IP Rated | IP40 |
| Dimension | Size: 145.51mm X 65.8mm X 33.5mm |
| Weight:189.3g（6.68oz） | |
| LED | PWR:Power indicator |
| EMC | FCC:FCC Part 15 Subpart B |
| CE:EN 55032:2015/A11:2020 | |
| CE:EN 55035:2017/A11:2020 | |
| Mechanical Characteristics | Case: Metal |
| Color: Black |
