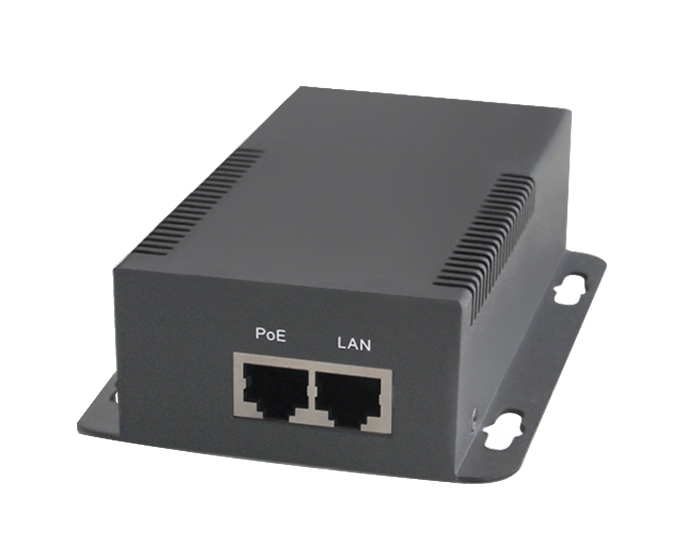

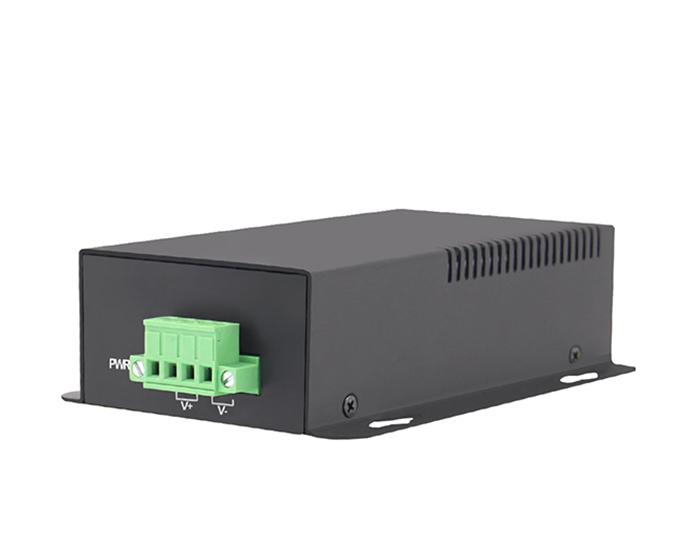

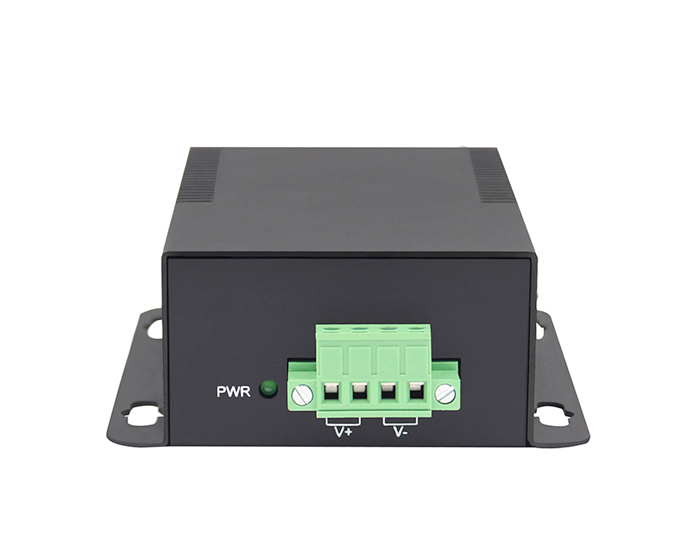

PT-PD208GBHO-12 is a single port splitter with 4 Pair PoE up to 60 watts of power at 55 VDC
It works as a converter separating power and data from PoE injector and delivering power and data to non-PoE devices. It supports 10/100/1000Mbps of data speed. It works for 60W non-PoE PDs, such as high power communication stations, wireless APs, network cameras and other non-PoE terminals. It is an isolated design inside to avoid high current input damage. Innovative technology increase energy-efficient up to 93%.
Enclosed in a high-impact metal shell, designed for indoor installation. It operates with input voltage of 40-57 VDC. The effective distance limitation of 100 meters over Cat5e/Cat6 cables. The model is easy to install with four mounting holes.
Specifications
| Parameter | Description |
| Key Features | bt standard 90W indoor PoE Splitter |
| Part Number | PT-PD208GBHO-12 |
| Ports condition | LAN Port*1, Input PoE Port*1, DC Output Port*1 |
| PoE output | 90W |
| Data rates | 10/100/1000Mbps |
| Power input | PoE++ OR BT 90W input |
| Power output | 12V/4.25A |
| Regulatory Compliance | IEEE 802.3bt RoHS Compliance WEEE Compliance |
| Working Environment | Operating Temperature: -40℃ to 65℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -40℃ to 85℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 2000meters |
| AC Surge Protection | Line-Earth 1.2/50us (8/20us): 2KV Line-Line 1.2/50us (8/20us): 1KV |
| Mechanical Characteristics | Size: 128mm X 89mm X 36mm Weight: 350g |
| Safety Approvals | CE, FCC |
