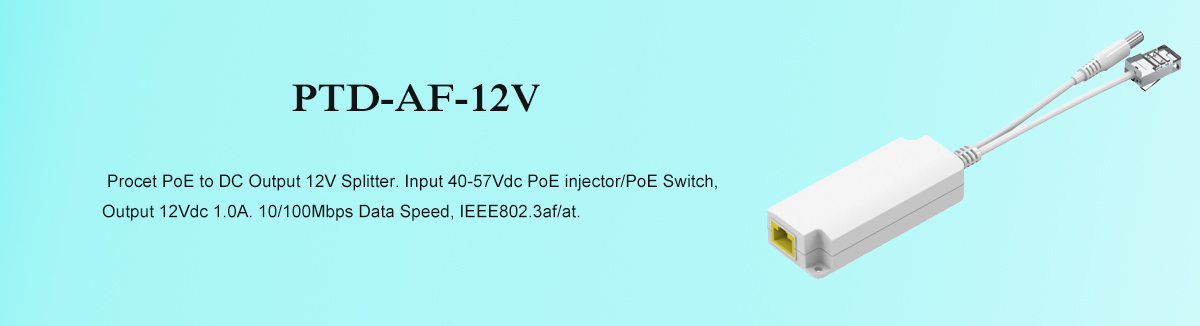

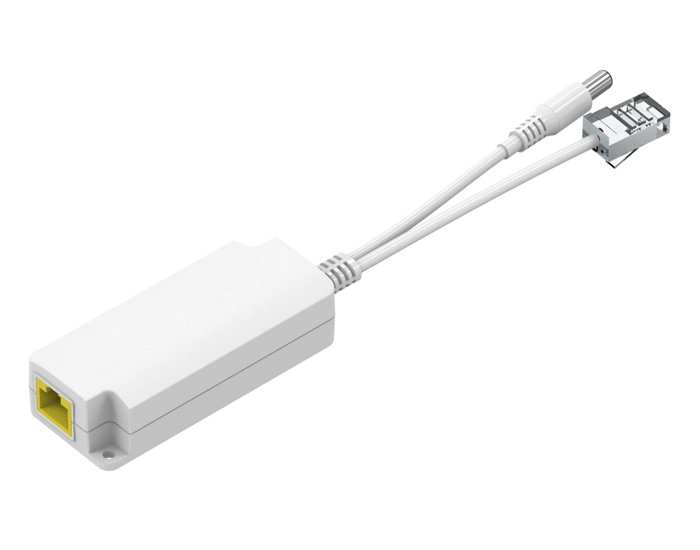

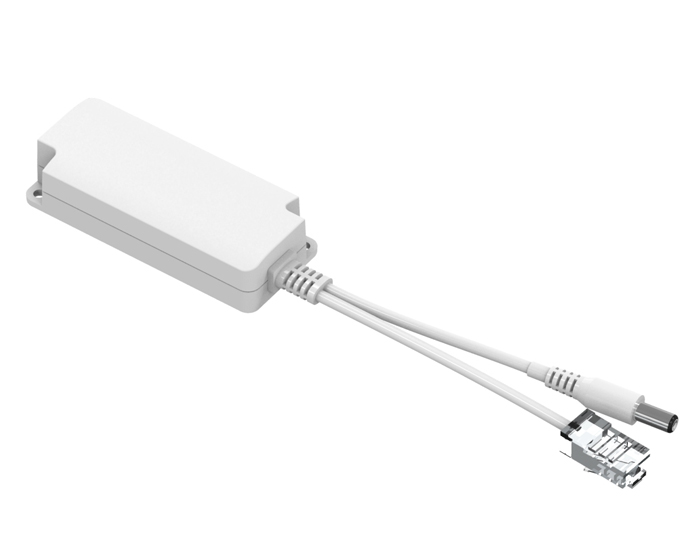

PTD-AF-12V PoE to DC 12V Splitter with 4 Pair PoE up to 12 watts of power at 12VDC
It works as a converter separating power and data from PoE injector and delivering power and data to non-PoE devices. It supports 10/100/1000Mbps of data speed. It works for 12W non-PoE PDs, such as high power communication station, wireless APs, network cameras and other non-PoE terminals. It is an isolated design inside to avoid high current input damage. Innovative technology increase energy-efficient up to 93%.
Enclosed in a high-impact metal shell, designed for indoor installation. It operates with input voltage of 40-57 VDC. The effective distance limitation of 100 meters over Cat5e/Cat6 cables. The model is easy to install with four mounting holes.
Specifications
| Parameter | Description |
| Key Features | 12W indoor PoE Splitter |
| Part Number | PTD-AF-12V |

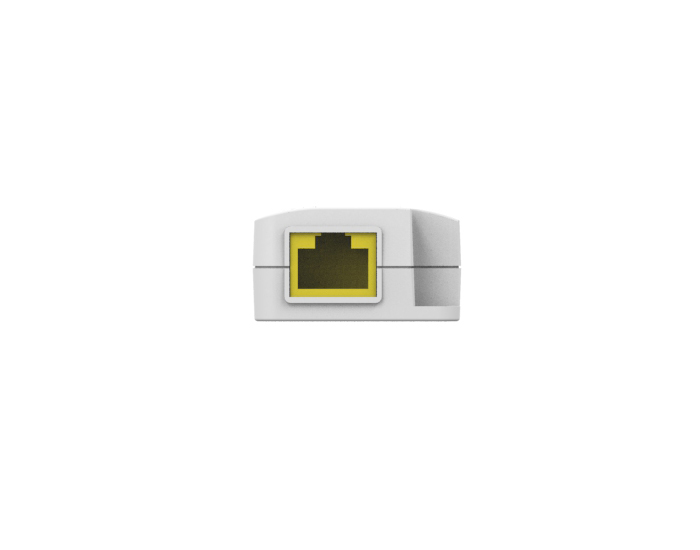

| Ports condition | RJ45 Female*1, RJ45 Male*1 |
DC Male Jack support 5.5*2.1mm&5.5*2.5mm | |
| PoE output | 12 W |
| Data rates | 10/100Mbps |
| Power input | 40-57Vdc IEEE802.3af/at |
| Power output | 12V/1.0A |
| Regulatory Compliance | IEEE 802.3af |
| RoHS Compliance | |
| WEEE Compliance | |
| Working Environment | Operating Temperature: 0℃ to 40℃ |
| Operating Humidity: 20% to 80%, non-condensation | |
| Storage Temperature: -20℃ to 70℃ | |
| Storage Humidity: 10% to 90%, non-condensation | |
| Operating Altitude: up to 2000 meters | |
| Mechanical Characteristics | Size: (82.3+124.81)mm X 34.7mm X 19mm |
| Weight: 200g | |
| Safety Approvals | CE, FCC |
