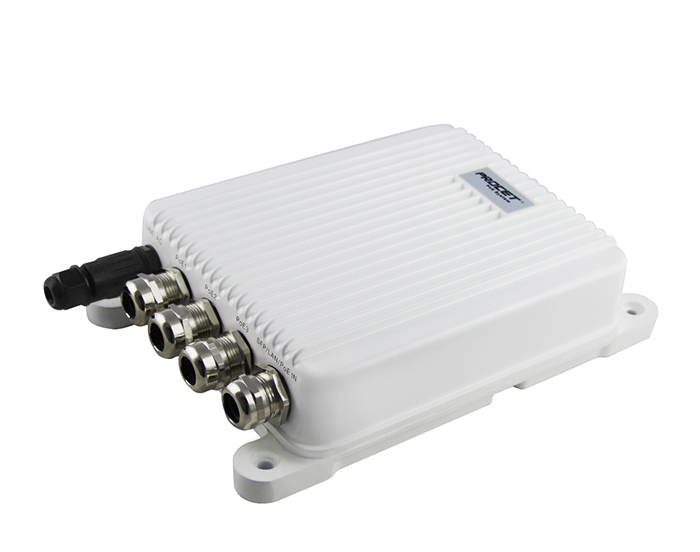

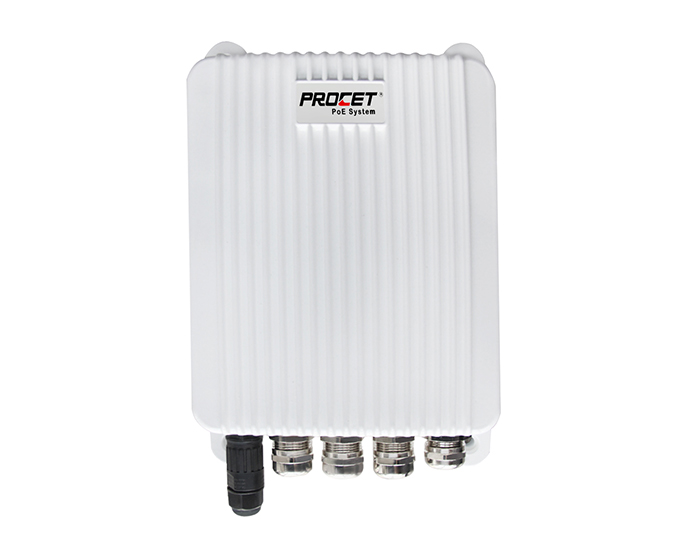

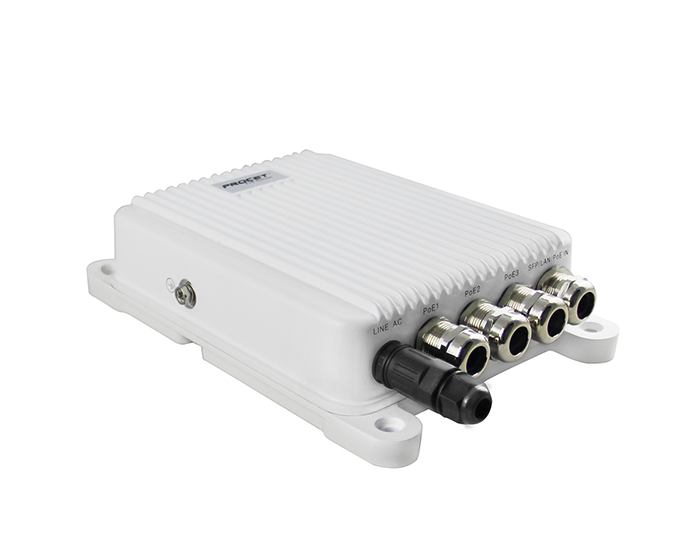

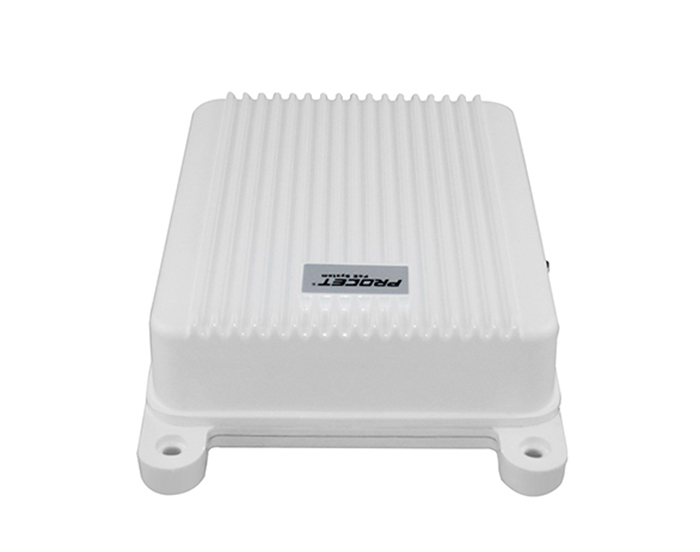

PT-POS401GR-OT 3x802.3at PoE Ports+1 LAN Port Waterproof Outdoor PoE+ Switch

PT-POS401GR-OT is an outdoor IP67 rated 4-port power PoE switch speciall designed for exterior, complex backhaul and networking applications. Enclosed in an waterproof Reflective Aluminum alloy case with a sealing that gasket passes tension, bearing, corrosion,and aging test. Pass salt spray resistance test.


It works with a wide input voltage of 100-240Vac and operates from -40℃ to 65℃. This model includes 1 Gigabit copper Ethernet data uplink, 1 AC input screw terminal connector and 3 PoE ports, providing 30W each port power for remote PDs over 2 pairs output at 10/100/1000Mbps of data speed. Each PoE port is compliant with 802.3at and backward compatible with 802.3af. Such as power for Pan Tilt Zoom cameras/IP cameras, VoIP video phones, building/access control equipment, WiFi access devices, POS terminals, thin clients, kiosks, and IP print servers.


Build-in detecting chip inside, which will Auto-negotiating IEEE802.3af/at PDs, no worry about powering a non-PoE device.The effective distance is 100 meters over Cat5e/Cat6 cables. Easily to install with installation kit (PT-POT-MBK Sold separately).The IP67 housing does not need to be pened and provides a quick,seamless installation.

  • Specifications
  • Support & Dowload
  • Gallery
  • Test Results
  • Standing Stock

Specifications

ParameterDescription
Key Features1 LAN+3 PoE ports PoE Switch
Wide temperature solutions

Lighting Protection

Waterproof Aluminum Alloy shell,IP67 rated

Part NumberPT-POS401GR-OT

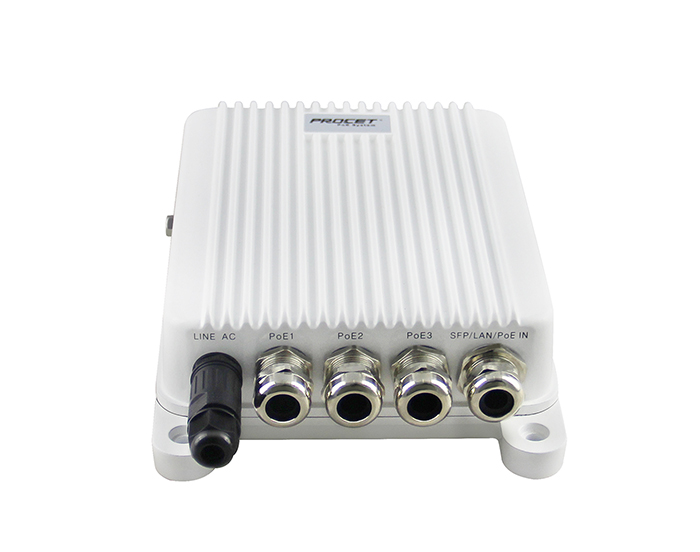

Ports conditionLAN Port*1, AC Input Port*1, PoE Output Port*3,Earth Terminal*1
Regulatory ComplianceIEEE802.3 af/at
RoHS Compliance
WEEE Compliance
Pass Through Data Rates10/100/1000 Mbps
OutputPin Assignment and Polarity:
3/6 (+), 1/2 (–)
Output Power Voltage: 55Vdc
Output Current: 550mA (Per Port)
User Port Power:
30W Guaranteen(Per Port),3 Ports,total power budget 90W
InputAC Input Voltage: 100 to 240 Vac
AC Input Current: 2A
Frequency: 47 to 63Hz (50/60Hz Typ.)
Working EnvironmentOperating Temperature: -40 to 65
Operating Humidity: 20% to 90%, non-condensation
Storage Temperature: -40
to 85
Storage Humidity: 10% to 95%, non-condensation
Operating Altitude: up to 5000meters
PoE Surge ProtectionProtected line: 1,2,3,4,5,6,7,8
Common mode surge protection(10/700us): 6KV
Differential mode surge protection (10/700us): 1.5KV
AC Surge ProtectionLine-Earth 1.2/50us (8/20us): 6KV
Line-Line 1.2/50us (8/20us): 4KV
Mechanical Characteristics

Case: Aluminum Alloy

Color: White

Mounting: Wall- mounted/ Pole-mounted
IP Rated: IP67
Connectors: Shielded RJ-45*4
Size: 176mmX 269mmX 65mm
Weight: 2.1kg4.63lb


None

Standing Stock

Product Order Info.(Model)PT-POS401GR-OT
Stock Quantity50PCS
Warehouse Location Dongguan China
Sample Delivery TimeWithin 24H
Bulk Stock Delivery TimeWithin 48H
Shipping WayDHL,UPS,FedEx,TNT,
By SEA/AIR
Customer Nominated Forwarder
Packing SizeQty: 20pcs/carton
G.W.: 10Kgs
Volume: 0.055 m³
Packing: Export Carton
Pallet size: 110 x 110cm
