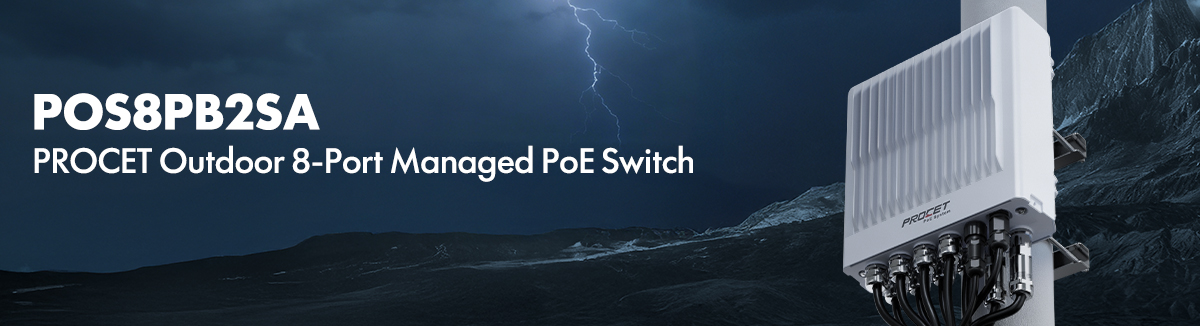

Engineered for rugged outdoor use, this outdoor PoE switch suits smart traffic cameras, streetlight gateways, and edge computing. It supports 802.1Q VLAN, MAC learning, and independent PoE power (90w/port, 330W total) with scheduled tasks to optimize networks and prevent overloads.
With IP67 dust/waterproof rating, it operates -40°C to +65°C, ensuring cold-star stability. Built-in 6kV surge and 6kV/8kV electrostatic protection withstand harsh conditions. The fanless cast aluminum housing with a cover enhances cable protection and heat dissipation.
Multiple mounting options (pole/wall/clamp) adapt to outdoor setups. RoHS-compliant, it suits large networks and industrial IoT for reliability and sustainability.
Specifications
| Parameter | Description |
| Key Features | 8-Port high power 90W PoE Switch, Total 350W AC to DC,2 SFP Outdoor IP67 protect rated waterproof 1000/2500Base-FX to 10/100/1000Base-TXSFP slot for Multi mode or Single mode SFP transceiver 6KV PoE Surge protection, 6KV AC surge protection Pole mounted IP67 Die-Casting Aluminum shell Extend temperature from -40℃ to 65℃ IP67 waterproof metal cable glands |
| Part Number | POS8PB2SA |
| Ports condition | SFP Fiber Port*2, PoE Output Port*8, AC Input Screw Terminal Connector *1 |
| Regulatory Compliance | IEEE802.3af/at/bt RoHS Compliance WEEE Compliance |
| Pass Through Data Rates | 10/100/1000BASE-T RJ45 Interfaces 1000/2500BASE-X SFP Interfaces |
| Output | Pin Assignment and Polarity: 3/6(+), 1/2(-)，4/5(+), 7/8(-) Output Power Voltage: 55Vdc/1.64A User Port Power: 90W Guaranteen per port *8, Total power budget 350W |
| Input | AC Input Voltage:110 to 240Vac Frequency: 47 to 63Hz (50/60Hz Typ.) |
| Working Environment | Operating Temperature: -40℃ to 65℃ Operating Humidity: 20% to 90%, non-condensation Storage Temperature: -40℃ to 85℃ Storage Humidity: 10% to 95%, non-condensation Operating Altitude: up to 5000meters |
| PoE Surge Protection | Protected line: 1,2,3,4,5,6,7,8 Common mode surge protection(10/700us): 6KV Differential mode surge protection (10/700us): 1.5KV |
| AC Surge Protection | Line-Earth 1.2/50us (8/20us): 6KV Line-Line 1.2/50us (8/20us): 4KV |
| Mechanical Characteristics | Case: Aluminum Alloy Color: White Mounting: Pole Mounted/Wall Mounted IP Rated: IP67 Connectors: Shielded RJ-45*8, SFP Slot*2 Size: 337mmX 235mmX 93mm |
| Exchange Mode | Store-and-Forward |
| Backplane Bandwidth | 26Gbps |
| MAC Address Capacity | 16K |
