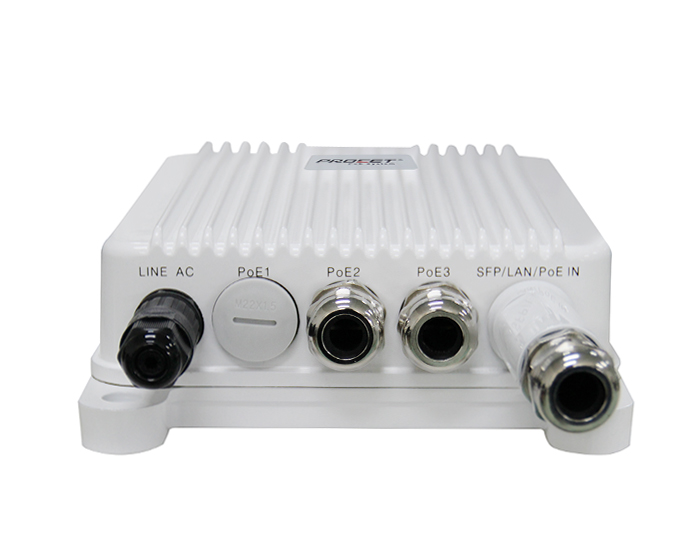

PT-POS301GWRF-OT is an outdoor rated switch speciall designed for exterior, complex backhaul and networking applications, special scenarios, like highway side, exurb, etc.
After negotiating PoE++ standard PD, the two PoE output ports delivers 55Vdc, 1.1A up to 60W power with 6KV surge protection for remote PDs over 4 Pair at 1000Mbps data rates. It works with a wide input voltage of 100-240Vac with 6KV surge protection and operates under -40℃ to +65℃. It fully complies with PoE++ and remains compatible with any IEEE802.3af/at compliant devices, such as IP Cameras, wireless APs, Microwave radio, IoT application and other high power PoE devices.
For planning purposes, the effective distance is 100 meters over Cat5e/Cat6 cables. Easily to install with installation kit PT-POT-MBK(Sold separately), no need to open the equipment.
Specifications
| Parameter | Description |
| Key Features | Outdoor Fiber PoE Switch with 2 PoE output ports Surge protection both at PoE port and AC port 1000Base-FX to 10/100Mbps and 1000Base-TX SFP slot for Multi mode or Single mode SFP transceiver Gigabit data rates Pass UL test, waterproof Aluminum Alloy shell, IP67 Extend temperature from -40℃ to 65℃ Diagnostic LEDs |
| Part Number | PT-POS301GWRF-OT |
| Ports condition | SFP Port*1, AC Input Port*1, PoE Output Port*2 |
| Regulatory Compliance | IEEE802.3af/at/PoE++ RoHS Compliance WEEE Compliance |
| Pass Through Data Rates | 10/100/1000BASE-T RJ45 Interfaces 1000BASE-X SFP Interfaces |
| Output | Pin Assignment and Polarity: 4/5(+), 7/8(-) and 3/6(+),1/2(-) Output Power Voltage: 55Vdc User Port Power: 60W Guaranteen,2 Ports,total power budget 120W |
| Input | AC Input Voltage:90 to 264Vac(100 to 240Vac Rated) AC Input Current: 2.0A Frequency: 47 to 63Hz (50/60Hz Typ.) |
| Working Environment | Operating Temperature: -40℃ to 65℃ Operating Humidity: 20% to 90%, non-condensation Storage Temperature: -40℃ to 85℃ Storage Humidity: 10% to 95%, non-condensation Operating Altitude: up to 5000meters |
| PoE Surge Protection | Protected line: 1,2,3,4,5,6,7,8 Common mode surge protection(10/700us): 6KV Differential mode surge protection (10/700us): 1.5KV |
| AC Surge Protection | Line-Earth 1.2/50us (8/20us): 6KV Line-Line 1.2/50us (8/20us): 4KV |
| Mechanical Characteristics | Case: Aluminum Alloy Color: White Mounting:Wall-mounted/Pole-mounted IP Rated: IP67 Connectors: Shielded RJ-45*2, SFP slot*1 Size: 176 X 269 X 65mm Weight: 1.8KG（3.97lb） |
| Safety Approvals | cUL/UL,CB |
Standing Stock
| Product Order Info.(Model) | PT-POS301GWRF-OT |
| Stock Quantity | 50PCS |
| Warehouse Location | Dongguan China |
| Sample Delivery Time | Within 24H |
| Bulk Stock Delivery Time | Within 48H |
| Shipping Way | DHL,UPS,FedEx,TNT, By SEA/AIR Customer Nominated Forwarder |
| Packing Size | Qty: 5pcs/carton G.W.: 10Kgs Volume: 0.055 m³ Packing: Export Carton Pallet size: 110 x 110cm |
