PT-POS201GWRF-OT-10 Waterproof Outdoor Single-Port Fiber 10G 95W PoE Switch

PT-POS201GWRF-OT-10 is an outdoor IP67 rated fiber high power PoE switch speciall designed for exterior, complex backhaul and networking applications. Enclosed in an waterproof Reflective Aluminum alloy case with a sealing that gasket passes tension, bearing, corrosion, and aging test. Pass salt spray resistance test.


It works with a wide input voltage of 100-240Vac and operates from -40℃ to 65℃. This model includes 1 SFP+ 10G fiber data uplink, 1 AC input screw terminal connector and 1 PoE port, providing 60W power for remote PDs over 4 pairs output at 10/100/1000Mbps/2.5G/5G/10G of data speed. It is compliant with PoE++ standard and backward compatible with 802.3af/at. Power for Pan Tilt Zoom cameras/IP cameras, VoIP video phones, building/access control equipment, WiFi access devices, POS terminals, thin clients, kiosks, and IP print servers.


Build-in detecting chip inside, which will Auto-negotiating IEEE802.3af/at/PoE++ PDs, no worry about powering a non-PoE device.The effective distance is 100 meters over Cat5e/Cat6 cables. Easily to install with installation kit (PT-POT-MBK Sold separately).The IP67 housing does not need to be opened and provides a quick,seamless installation.

  • Specifications
  • Support & Dowload
  • Gallery
  • Test Results
  • Standing Stock

Specifications

ParameterDescription
Key FeaturesHigh power 60W PoE
AC to DC
Outdoor IP67 protect rated waterproof
SFP+ 10G Base-FX to 1G/2.5G/5G/10G Base-TX
SFP slot for Multi mode or Single mode SFP transceiver
6KV PoE Surge protection, 6KV AC surge protection
Pole mounted
IP67 Die-Casting Aluminum shell
Extend temperature from -40℃ to 65℃
IP67 waterproof metal cable glands
Pass salt spray test
Part NumberPT-POS201GWRF-OT-10

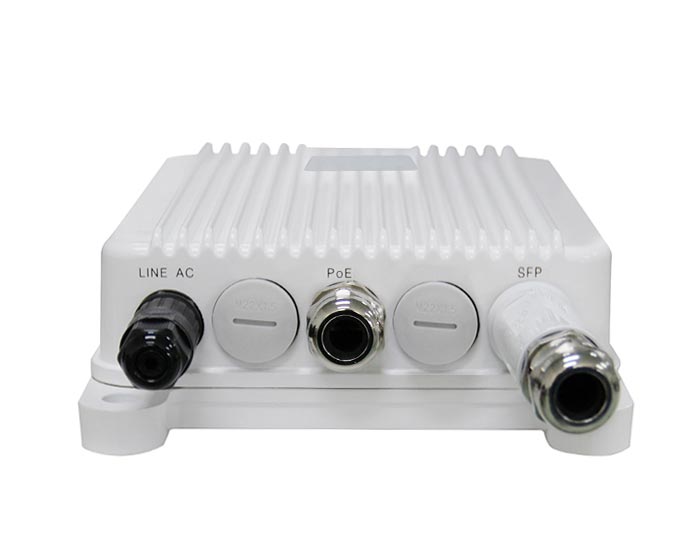

Ports conditionSFP Fiber Port*1, PoE Output Port*1, AC Input screw terminal connector *1
Regulatory ComplianceIEEE802.3af/at/PoE++
RoHS Compliance
WEEE Compliance
Pass Through Data Rates10G/5G/2.5G/1G BASE-T auto-negotiation RJ45 Interfaces
10GBASE-X SFP+ slot
OutputPin Assignment and Polarity:
3/6(+), 1/2(-),4/5(+), 7/8(-)
Output Power Voltage: 55Vdc/1.1A
User Port Power: 60W Guaranteen
InputAC Input Voltage:90 to 264Vac(100 to 240Vac Rated)
AC Input Current: 2.0A
Frequency: 47 to 63Hz (50/60Hz Typ.)
Working EnvironmentOperating Temperature: -40℃ to 65℃
Operating Humidity: 20% to 90%, non-condensation
Storage Temperature: -40℃ to 85℃
Storage Humidity: 10% to 95%, non-condensation
Operating Altitude: up to 5000meters
PoE Surge ProtectionProtected line: 1,2,3,4,5,6,7,8
Common mode surge protection(10/700us): 6KV
Differential mode surge protection (10/700us): 1.5KV
AC Surge ProtectionLine-Earth 1.2/50us (8/20us): 6KV
Line-Line 1.2/50us (8/20us): 4KV
Mechanical CharacteristicsCase: Aluminum Alloy
Color: White
Mounting: Pole Mounted/Wall Mounted
IP Rated: IP67
Connectors: Shielded RJ-45*1, SFP Slot*1
Size: 176mmX 269mmX  65mm
Weight: 1800 g(3.97 lb)
