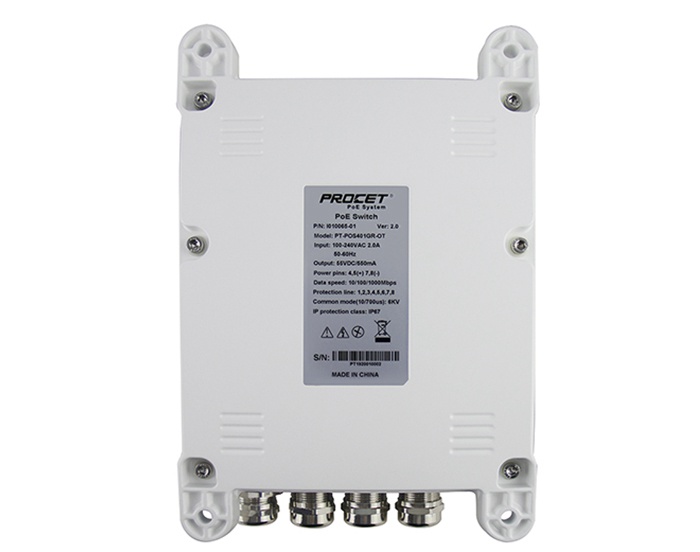

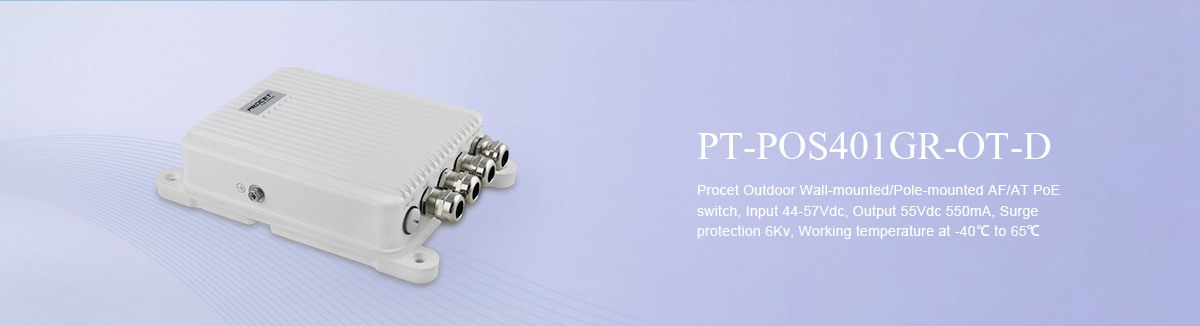

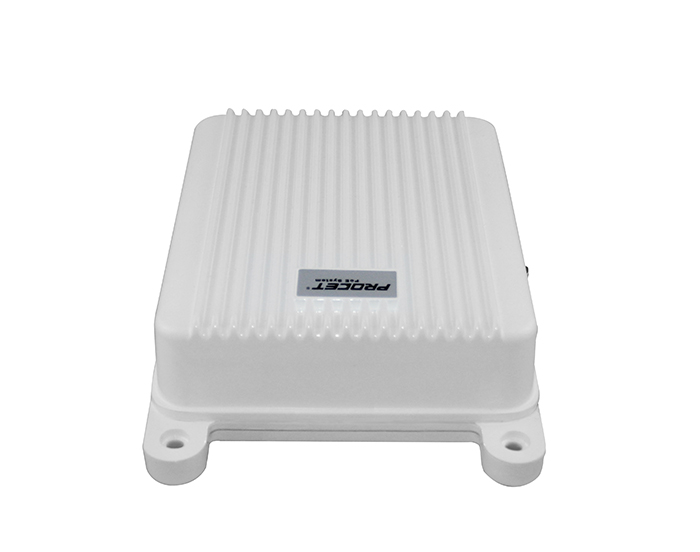

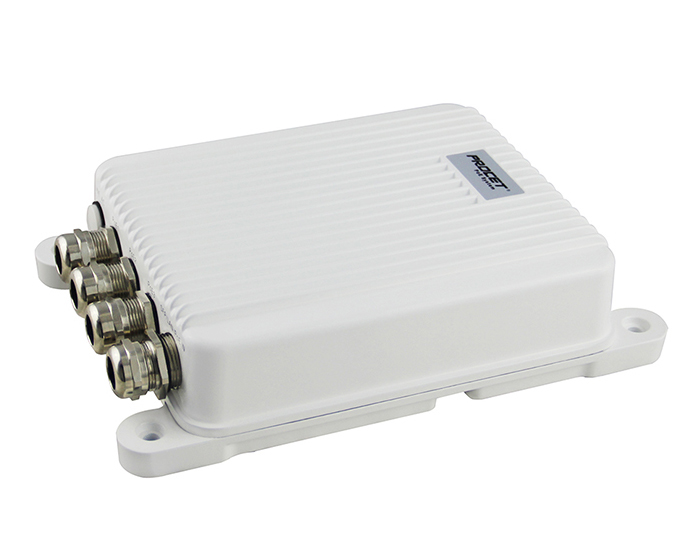

PT-POS401GR-OT-D Waterproof Outdoor PoE Switch 44-57Vdc/95-120W/PoE++ Input,3x802.3at PoE Ports Output

PT-POS401GR-OT-D is an outdoor IP67 rated 4-port PoE switch speciall designed for exterior, complex backhaul and networking applications. Enclosed in an waterproof Reflective Aluminum alloy case with a sealing that gasket passes tension, bearing, orrosion,and aging test. Pass salt spray resistance test.


The 4-port 10/100/1000Mbps PoE switch includes: 1 x PoE powered input port with PoE++ 95-120W and 3 x PoE output ports with 6KV (10/700us) surge protection. Each PoE output port delivers 55Vdc, 0.55A power for remote PDs, the total power budget is up to 95W(max). They are compliant with 802.3at and backward compatible with 802.3af, can power for Pan Tilt Zoom cameras/IP cameras, VoIP video phones, building/access control equipment, WiFi access devices, POS terminals, thin clients, kiosks, and IP print servers.


Build-in detecting chip inside, which will Auto-negotiating IEEE802.3af/at PDs, no worry about powering a non-PoE device.The effective distance is 100 meters over Cat5e/Cat6 cables. Easily to install with installation kit (PT-POT-MBK Sold separately).The IP67 housing does not need to be opened and provides a quick,seamless installation.

  • Specifications
  • Support & Dowload
  • Gallery
  • Test Results
  • Standing Stock

Specifications

ParameterDescription
Key Features

4-Port 30W PoE+ Switch, Total 950W

PoE Source Input supports 44-57Vdc, 95-120W PoE++

Outdoor IP67 protect rated waterproof

6KV PoE Surge protection

Pole mounted

IP67 Die-Casting Aluminum shell

Extend temperature from -40℃ to 65℃

IP67 waterproof metal cable glands

Pass salt spray test

Part NumberPT-POS401GR-OT-D

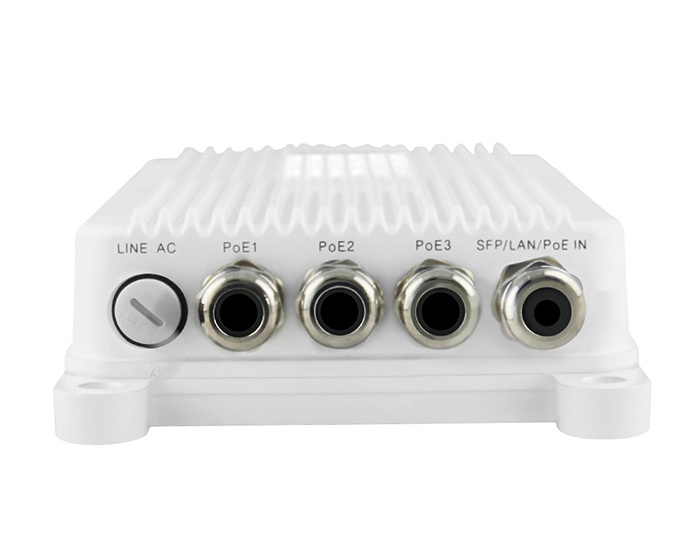

Ports conditionPoE In Port*1,  PoE Output Port*3
Regulatory ComplianceIEEE802.3at
RoHS Compliance
WEEE Compliance
Pass Through Data Rates10/100/1000 Mbps
OutputPin Assignment and Polarity:
3/6 (+), 1/2 (–)
Output Power Voltage: 55Vdc
User Port Power: 30W (per port) Guaranteen,3 Ports,total power budget 95W
Input44 to 57 Vdc, PoE++ 95-120W
Working EnvironmentOperating Temperature: -40 to 65
Operating Humidity: 20% to 90%, non-condensation
Storage Temperature: -40
to 85
Storage Humidity: 10% to 95%, non-condensation
Operating Altitude: up to 5000meters
PoE Surge ProtectionProtected line: 1,2,3,4,5,6,7,8
Common mode surge protection(10/700us): 6KV
Differential mode surge protection (10/700us): 1.5KV

Mechanical Characteristics

Case: Aluminum Alloy

Color: White

Mounting: Wall-mounted/Pole-mounted
IP Rated: IP67
Connectors: Shielded RJ-45*4
Size: 176mmX 269mmX 65mm
Weight: 1800g3lb 15oz
LED Indicator

Data Indicator: Yellow

PoE Load Indicator: Green


None

Standing Stock

Product Order Info.(Model)PT-POS401GR-OT-D
Stock Quantity50PCS
Warehouse Location Dongguan China
Sample Delivery TimeWithin 24H
Bulk Stock Delivery TimeWithin 48H
Shipping WayDHL,UPS,FedEx,TNT,
By SEA/AIR
Customer Nominated Forwarder
Packing SizeQty: 20pcs/carton
G.W.: 10Kgs
Volume: 0.055 m³
Packing: Export Carton
Pallet size: 110 x 110cm
