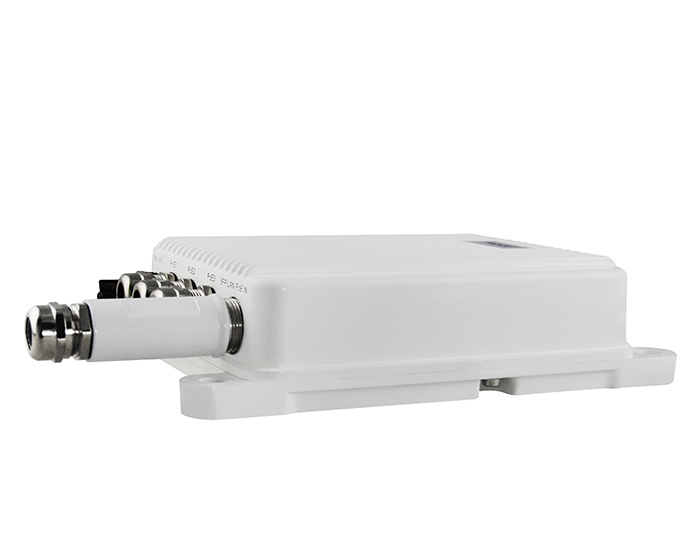

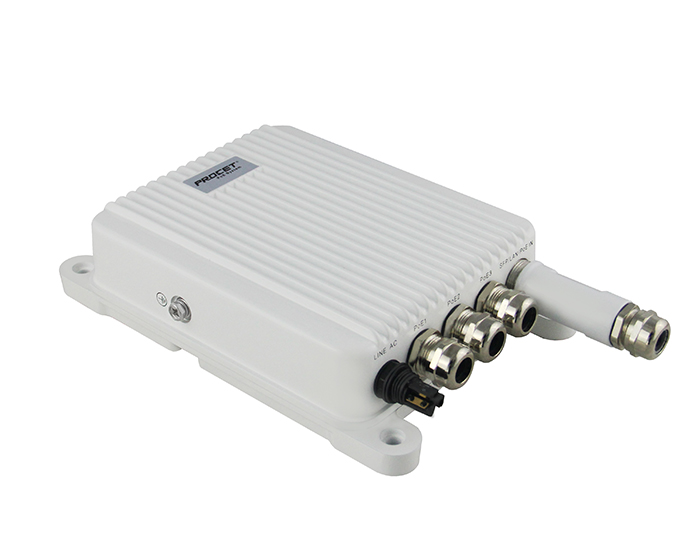

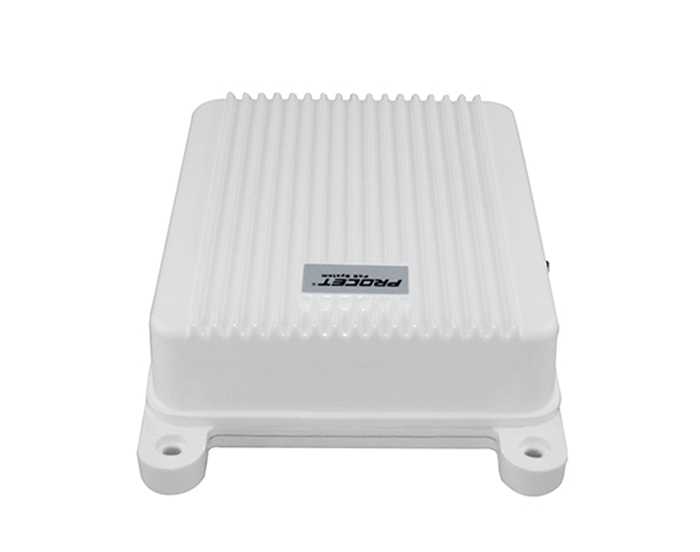

PT-POS401GRF-OT is an outdoor rated switch speciall designed for exterior, complex backhaul and networking applications, special scenarios, like highway side, exurb, etc.
After negotiating IEEE802.3at standard PD, the three PoE output ports delivers 55Vdc, 0.55A up to 30W power with 6KV surge protection for remote PDs over 2 Pair at 1000Mbps data rates. It works with a wide input voltage of 100-240Vac with 6KV surge protection and operates under -40℃ to +65℃. It fully complies with 802.3at and remains compatible with any IEEE802.3af compliant devices, such as IP Cameras, wireless APs, Microwave radio, IoT application and other high power PoE devices.
For planning purposes, the effective distance is 100 meters over Cat5e/Cat6 cables. Easily to install with installation kit PT-POT-MBK(Sold separately), no need to open the equipment.
Specifications
| Parameter | Description |
| Key Features | Outdoor Fiber PoE Switch with 3 PoE output ports Surge protection both at PoE port and AC port 1000Base-FX to 1000Base-TX SFP slot for Multi mode or Single mode SFP transceiver Gigabit data rates Waterproof Aluminum Alloy shell,IP67 rated Extend temperature from -40℃ to 65℃ |
| Part Number | PT-POS401GRF-OT |

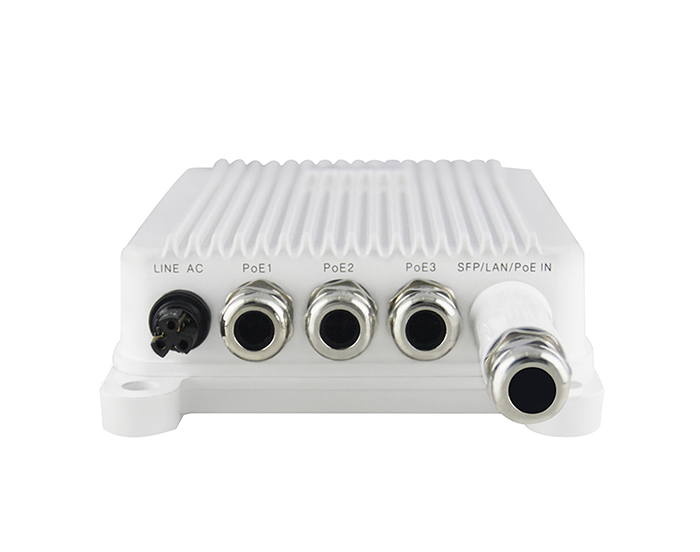

| Ports condition | SFP Port*1, AC Input Port*1, PoE Output Port*3 |
| Regulatory Compliance | IEEE802.3at RoHS Compliance WEEE Compliance |
| Pass Through Data Rates | 10/100/1000BASE-T RJ45 Interfaces 1000BASE-X SFP Interfaces |
| Output | Pin Assignment and Polarity: 3/6(+),1/2(-) Output Power Voltage: 55Vdc User Port Power: 30W Guaranteen,3 Ports,total power budget 90W |
| Input | AC Input Voltage:90 to 264Vac(100 to 240Vac Rated) AC Input Current: 2.0A Frequency: 47 to 63Hz (50/60Hz Typ.) |
| Working Environment | Operating Temperature: -40℃ to 65℃ Operating Humidity: 20% to 90%, non-condensation Storage Temperature: -40℃ to 85℃ Storage Humidity: 10% to 95%, non-condensation Operating Altitude: up to 5000meters |
| PoE Surge Protection | Protected line: 1,2,3,4,5,6,7,8 Common mode surge protection(10/700us): 6KV Differential mode surge protection (10/700us): 1.5KV |
| AC Surge Protection | Line-Earth 1.2/50us (8/20us): 6KV Line-Line 1.2/50us (8/20us): 4KV |
| Mechanical Characteristics | Case: Aluminum Alloy Color: White Mounting:Wall-mounted/Pole-mounted IP Rated: IP67 Connectors: Shielded RJ-45*3, SFP slot*1 Size: 176 X 269 X 65mm Weight: 1.8KG（3.97lb） |
| Safety Approvals | CE |
Install Video
Standing Stock
| Product Order Info.(Model) | PT-POS401GRF-OT |
| Stock Quantity | 50PCS |
| Warehouse Location | Dongguan China |
| Sample Delivery Time | Within 24H |
| Bulk Stock Delivery Time | Within 48H |
| Shipping Way | DHL,UPS,FedEx,TNT, By SEA/AIR Customer Nominated Forwarder |
| Packing Size | Qty: 5pcs/carton G.W.: 12Kgs Volume: 0.055 m³ Packing: Export Carton Pallet size: 110 x 110cm |
