PT-POS8PB2SM-RS-OT Outdoor Waterproof 8-Port PoE Switch Easy Smart Managed

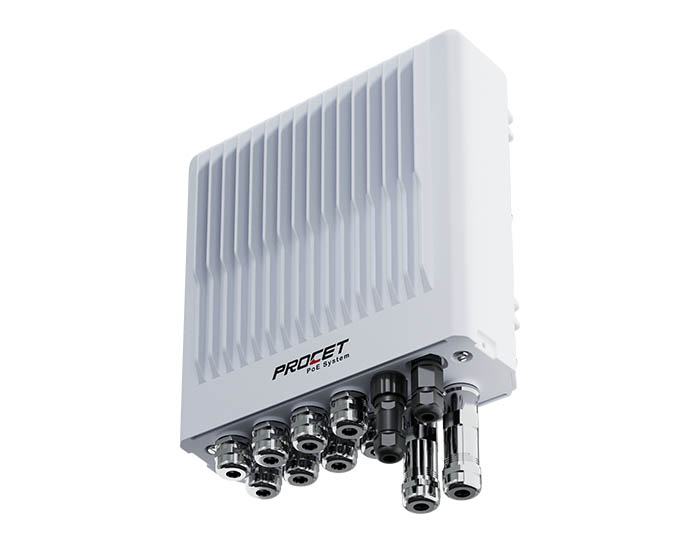

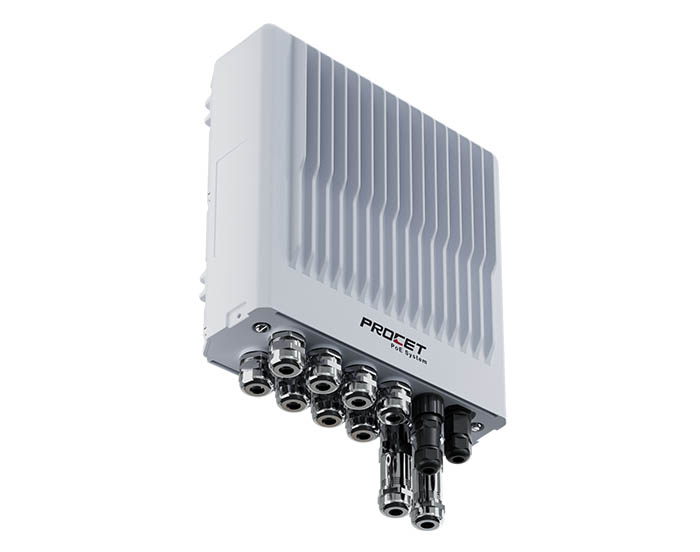

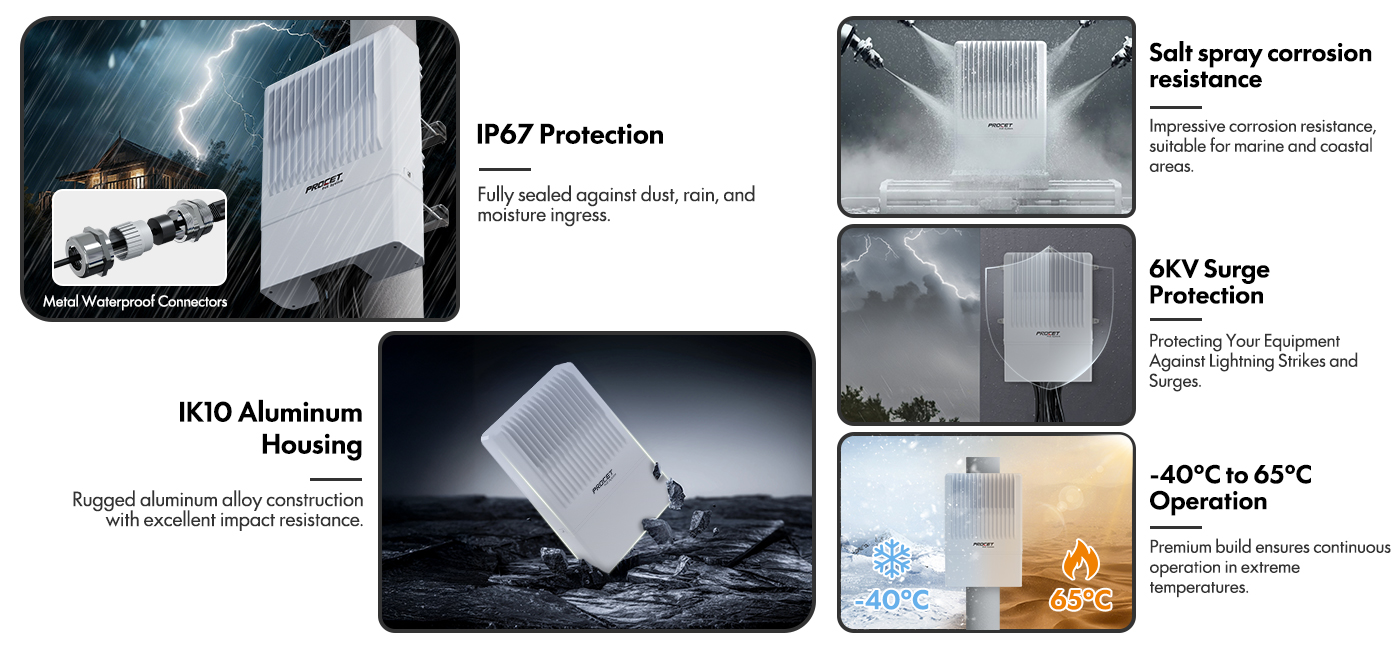

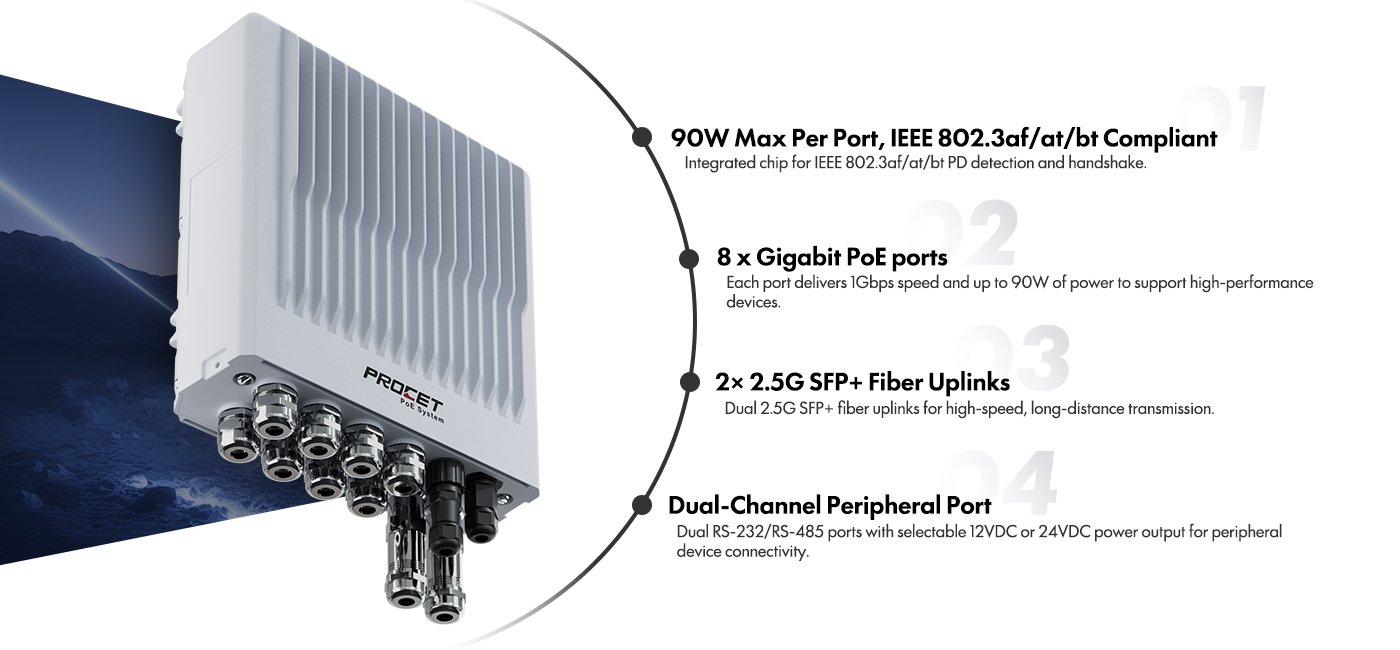

PT-POS8PB2SM-RS-OT is an outdoor-rated PoE switch. Enclosed in an IP67 Reflective metal case with a sealing gasket that passes tension, bearing, corrosion, and aging tests for IP67 applications. Pass the salt spray resistance test. Including 1 AC input port, 2 SFP 1G/2.5G fiber slot, 1 multi-function interface, and 8 PoE output port with 6KV (10/700us) surge protection, provides 55Vdc, 1.64A power for remote PDs over 4 pairs at 10/100/1000Mbps. The total output power budget is 350W.

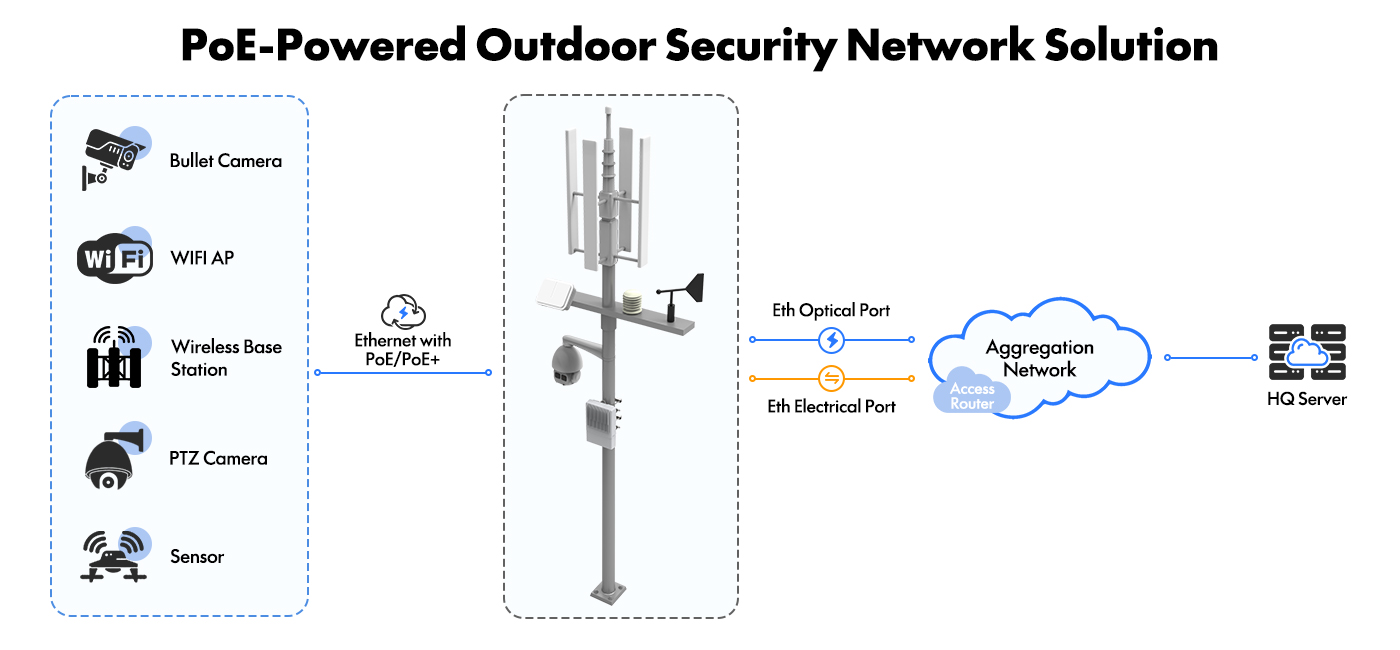

It works with a wide input voltage of 100-240Vac with 6KV surge protection and operates from -40℃ to +65℃. Equipped with a detecting chip inside which makes the PoE identification handshake with IEEE802.3af/at/bt PDs,  can power PTZ cameras, wireless APs, base stations, and other PoE-powered devices. Protect non-PoE standard devices. The effective distance is 100 meters over Cat5e/Cat6 cables. Easily to install with installation kit (Sold separately), no need to open the equipment.


The PoE switch can power external devices with selectable 24V/12V output, and its RS485 interface supports communication with external devices.

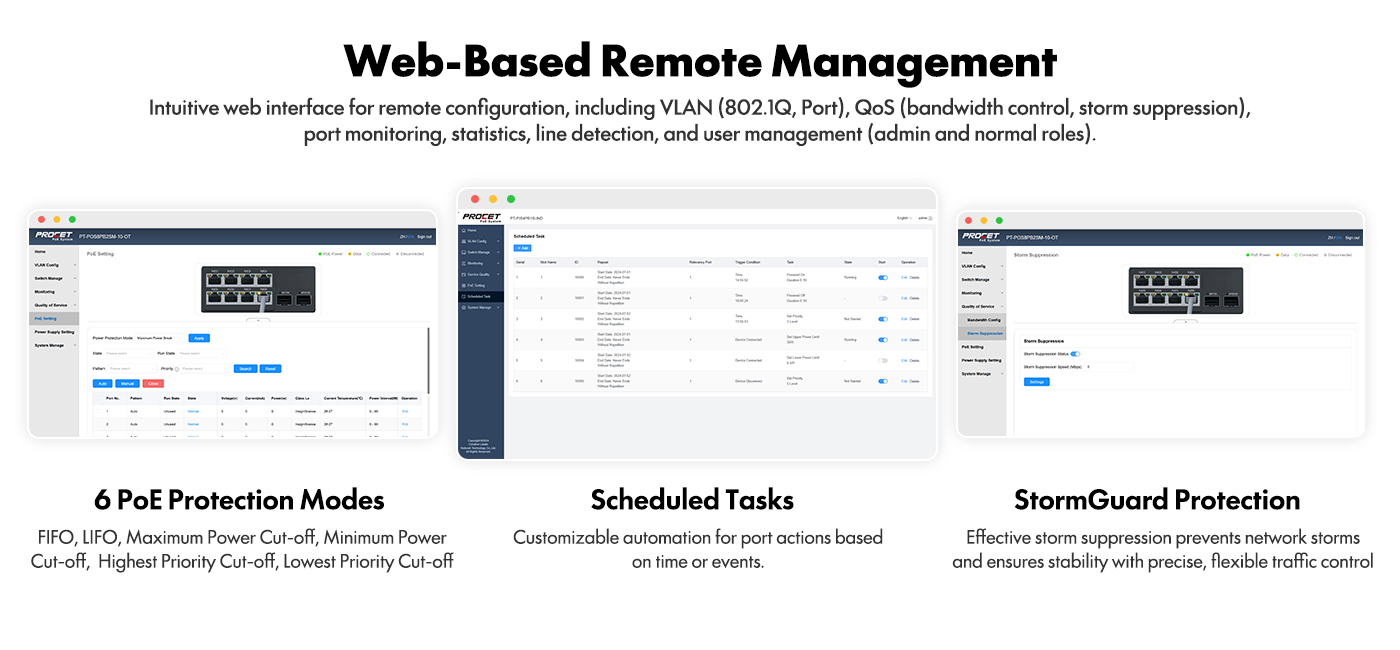

Models with an “M” in the P/N include Ethernet and PoE management functionalities. It can be accessed and managed via a web browser, supporting configurations such as IP settings, port settings, VLAN settings, PoE settings, and factory reset. Users can also view device information, including switch status, port status, and PoE status. Additionally, the PoE ports allow for scheduling timed power on/off operations.

  • Specifications
  • Support & Dowload
  • Gallery
  • Test Results
  • Standing Stock

Specifications

ItemPT-POS8PB2SM-RS-OT
PortsAC*1 SFP*2 PoE*8 DC&485 port*1 Grounding*1
PoE StandardIEEE802.3af/at/bt Power over Ethernet
Input Voltage110~240Vac
Input PowerMax 350W
Output PowerTotal power 330W Max(indudng DC&485 port)
IPC<20W
ESD Protection6kV contact discharge; 8KV air discharge, Standard:IEC61000-4-2
Surge ProtectionProtected Lines:1,2,3,4,5,6,7,8
Common Mode Protection(10/700us):6KV
Differential Mode Protection(10/700us):1.5KV
Switching ModeStore-and-forward
Network ProtocolsIEEE802.3 Ethernet
IEEE802.3u Fast Ethernet
IEEE802.3ab Gigabit Ethernet
IEEE802.3/IEEE802.3u/IEEE802.3ab/IEEE802.3z
IEEE802.3bz
QosSupport high-speed, non-blocking four -traffic- class QoS structure
Op Temp-40℃-65℃
Op Humid5%-95%,non-condensing
Op AltUp to 5000m
Stor Temp-40℃-85℃
Stor Humid10%-90%, non-condensing
EndosureMaterial:Aluminum alloy(metalsealing+waterproof rubber plugs)

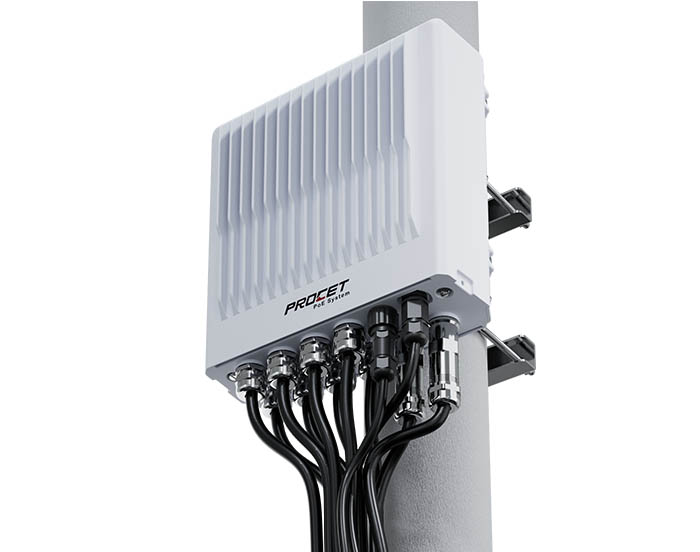

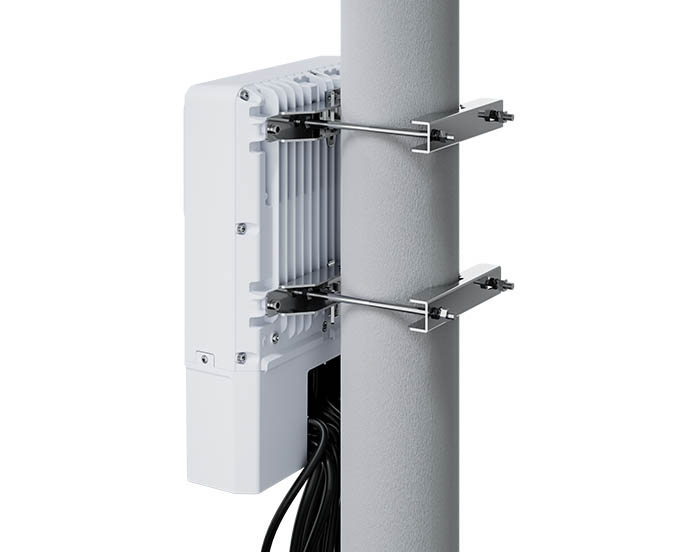

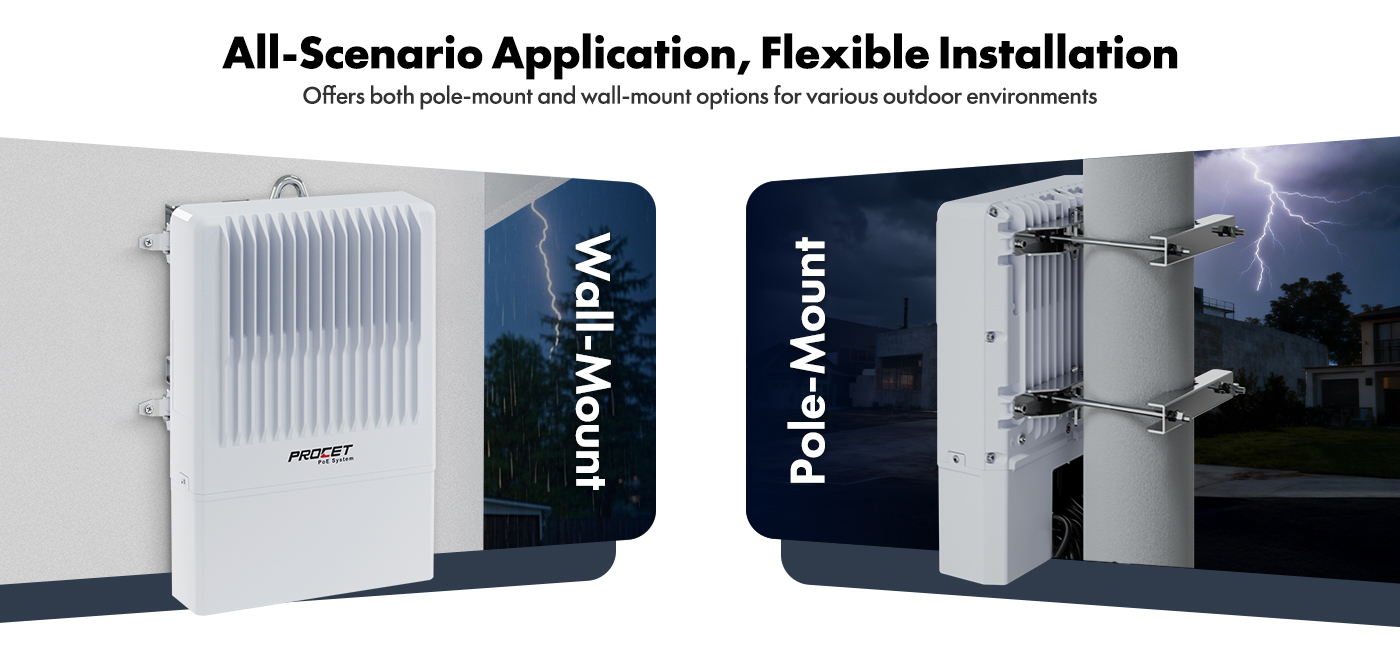

InstallationPole-mount(φ70~110mm)/Wall-mount(expansion screws)
ProtectionIP67(dust-proof &waterproof)

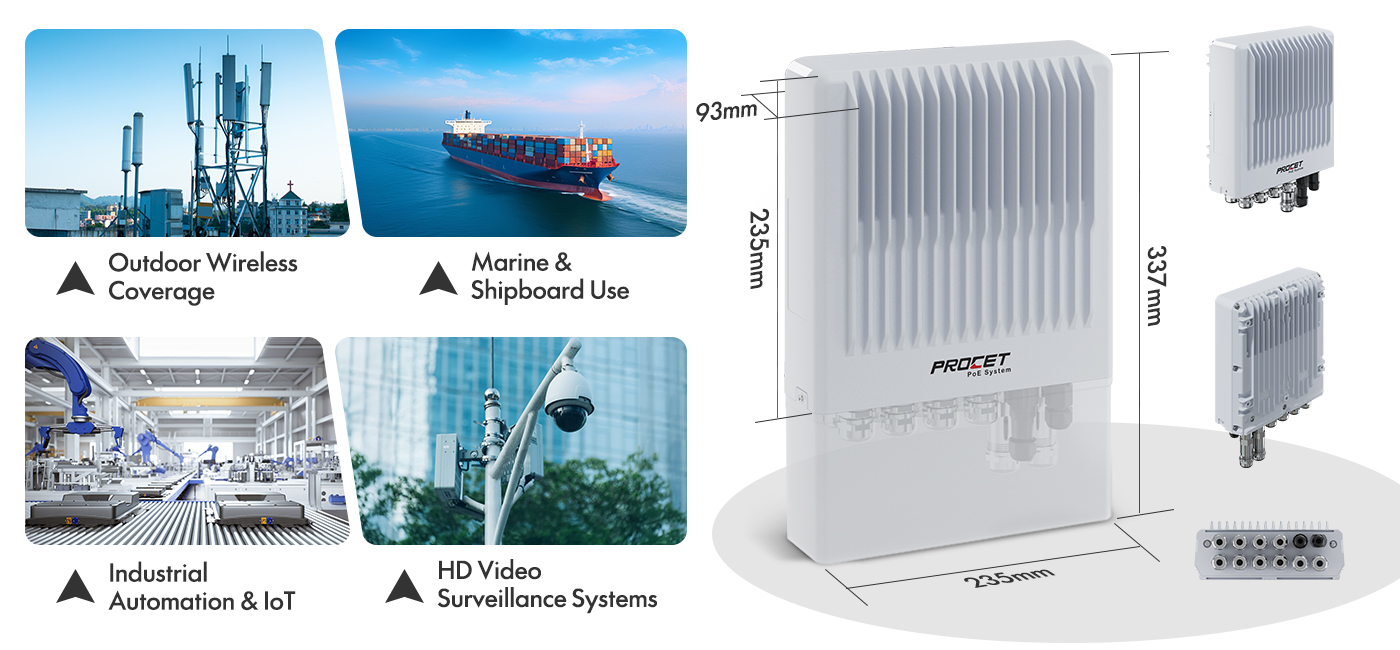

Size &Weight309mm(including 337mm with protective cover)×235mm×93mm(4650g)
CertificationCE   FCC
