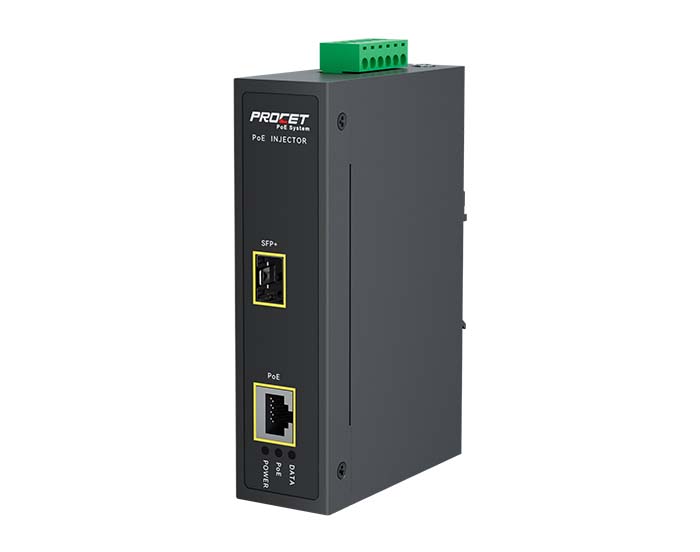

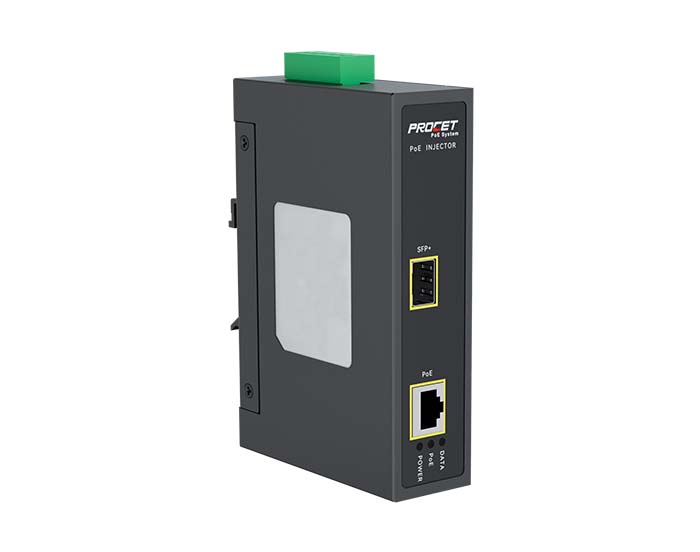

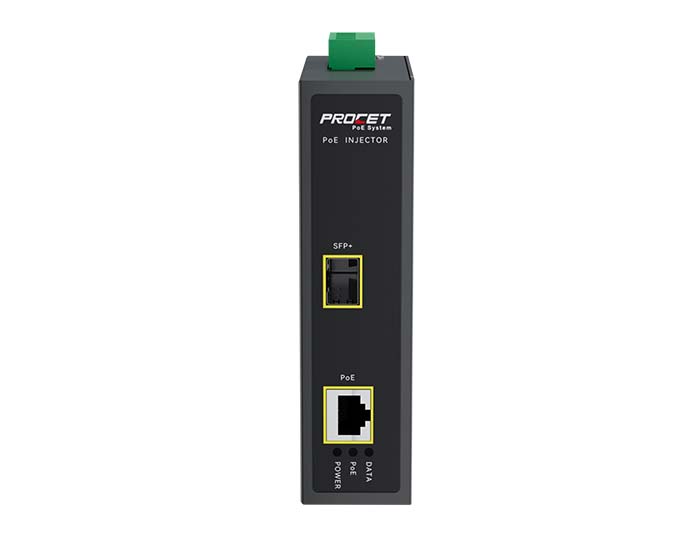

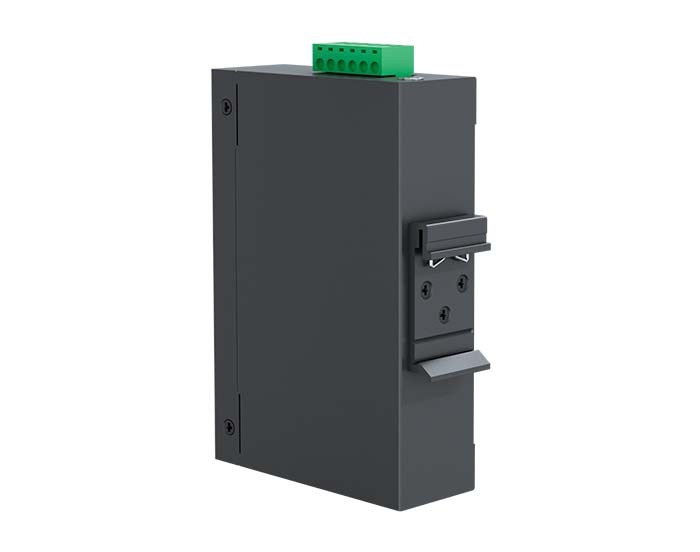

PT-PSE105GBSN-D-10 is a passive fiber to PoE converter.
It works with an input voltage of 50-57Vdc and operates under -40°C to +65°C.
It has a 10G SFP Interfaces and and the PoE output port delivers 48-55V/1.75A power up to 95W with 2.5G data rates.
Specifications
| Items | Description |
| Model | PT-PSE105GBSN-D-10 |
| Standard | IEEE802.3u 100Base-Tx Fast Ethernet |
| IEEE802.3ab 1000Base-T Gigabit Ethernet | |
| IEEE802.3an 10GBase-T 10Gigabit Ethernet | IEEE802.3ae 10G SFP+ Fiber 10Gigabit Ethernet | |
| CE FCC | |
| Passive | |
| Input & Output | Interface : PoE OUT*1 , SFP IN*1, DC IN*1, GND*1 |
| Input : 50-57Vdc 2.0A | |
| Output : 48-55Vdc 1750mA | |
| Power Pins : 4/5(+), 7/8(-) & 3/6(+), 1/2(-) | |
| Data speed : 100M/1000M/2.5G, 10G SFP+ | |
| Operating Altitude | Up to 5000 Meters |
| Operating Environment | Work Temp.: -40℃ to 65°℃ |
| Operating Humidity: 20% to 80%, non-condensation | |
| Mechanical Characteristics | Case:Metal |
| Color: Black | |
| IP rated : IP40 | |
| Dimensions : 144.5mm× 95mm× 35.4mm | |
| Net Weight : 485g | |
| EMC | EN 55032:2015/A11:2020 EN 55035:2017/A11:2020 |
| Network Protocol | IEEE802.3u/ab/bz/an IEEE802.3ae |
| Data Speed | RJ45:100M/1000M/2.5G SFP+: 10G |
| Dimensions & NW | 144.5mm ×95mm × 35.4mm 485g |
