PT-PSE105GBS-AC is an PoE Fiber Media Converter with PoE functionality that can be used as a PoE Injector offers a unique solution to powering long-range installations, where the data input comes over fiber, such as special scenarios, like highway side, exurb applications.Enclosed in an IP40 high-impact metal case but can work outdoor by being covered with a waterproof case.
After negotiating IEEE802.3bt standard PoE, the single PoE output port delivers 55Vdc, 1.1A up to 60W power with 6KV surge protection for remote PDs over 4 Pair at 10/100/1000Mbps data rates. It works with a wide input voltage of 100-240VAC, 50 or 60 Hz or 44-57Vdc and operates under -40℃ to 65℃. It fully complies with IEEE802.3bt and remains compatible with any IEEE802.3af/at compliant devices, such as IP Cameras, wireless APs, Microwave radios, IoT applications, door locks, displays, POS, and information kiosks.

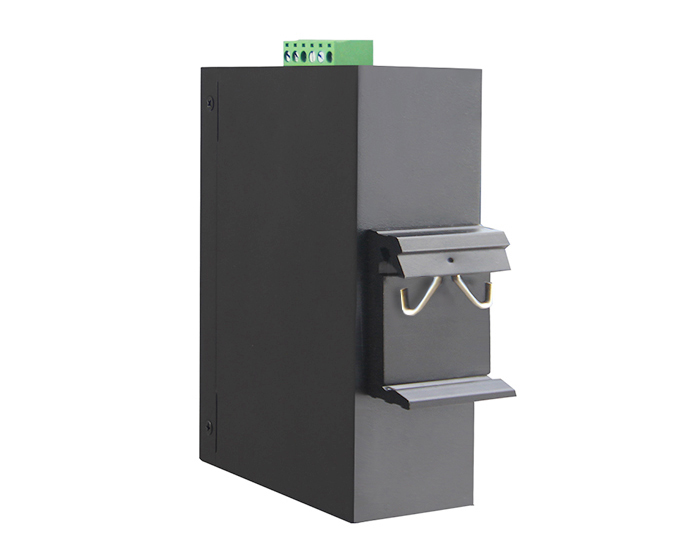

For planning purposes, the effective distance is 100 meters over Cat5e/Cat6 cables. This model is equipped with a standard DIN rail mounting bracket, which can easily jam into the guide rail.
Specifications
| Parameter | Description |
| Key Features | Industrial Fiber PoE can be outdoor use by covered with waterproof case Extend temperature from -40℃ to 65℃ Lighting Protection at PoE port SFP fiber Optical Slot, 1000Base-FX to 10/100/1000Base-TX, support single-mode or multi-mode transceivers RJ45 Port: 10/100/1000Mbps(Gigabit), supports Full/Half Duplex auto-negotiation and MDI/MDIX auto-crossover IP40 high-impact metal enclosure Diagnostic LEDs |
| Part Number | PT-PSE105GBS-AC |

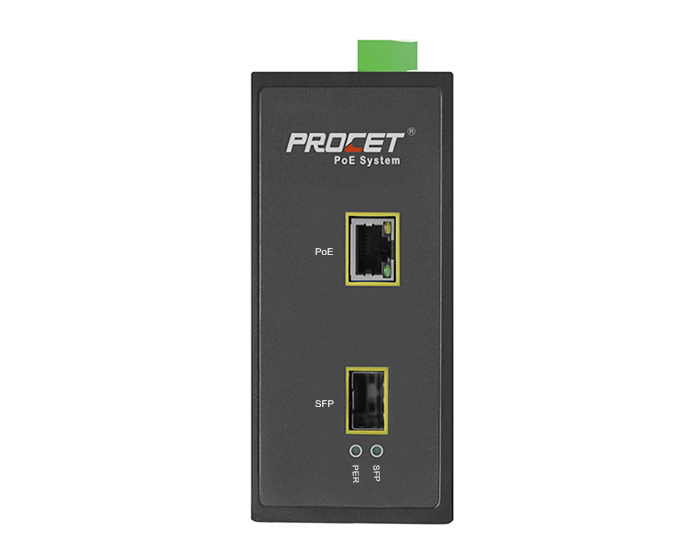

| Ports condition | AC Input Port*1, DC Input Port*1, SFP Port*1, PoE Output Port*1 |
| Regulatory Compliance | IEEE802.3bt RoHS Compliance WEEE Compliance |
| Pass Through Data Rates | 10/100/1000BASE-T RJ45 Interfaces 1000BASE-X SFP Interfaces |
| Output | Pin Assignment and Polarity: 4/5 (+), 7/8 (–) & 3/6(+),1/2(-) Output Power Voltage: 55Vdc @AC input 42-55Vdc @DC input User Port Power: 60W Guaranteen |
| Input | AC Input Voltage:90 to 264Vac(100 to 240Vac Rated) AC Input Current: 1.5A Frequency: 47 to 63Hz (50/60Hz Typ.) DC Input Voltage: 44 to 57 Vdc 1.5A |
| Working Environment | Operating Temperature: -40℃ to 65℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -40℃ to 85℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 5000meters |
| PoE Surge Protection | Protected line: 1,2,3,4,5,6,7,8 Common mode surge protection(10/700us): 6KV Differential mode surge protection (10/700us): 1.5KV |

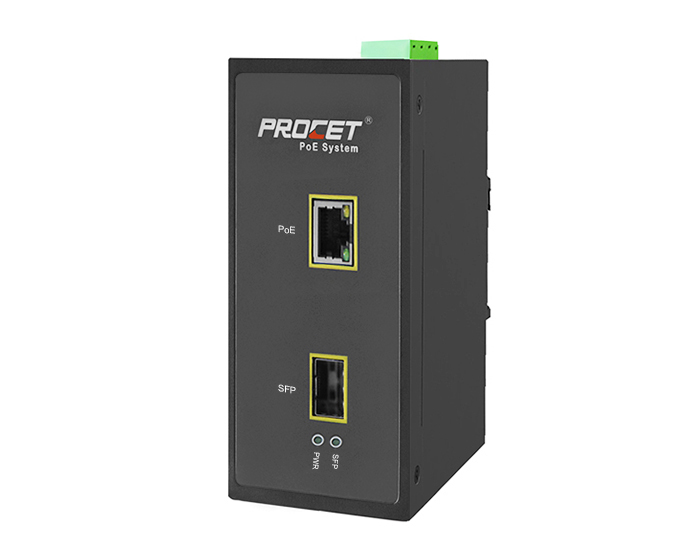

| Mechanical Characteristics | Case: Metal Color: Black Mounting: DIN Rail IP Rated: IP40 Connectors: Shielded RJ-45*1, SFP Slot*1, AC/DC Terminal Block Size: 144.5mmX 104.2mmX 60mm Weight: 819g（l.8lb） |
| LED Indicator | Power indicator: Green Load active Indicator: Green SFP fiber indicator: Green LAN data indicator: Yellow |
| Safety Approvals | CE,FCC,IEC62368 |
