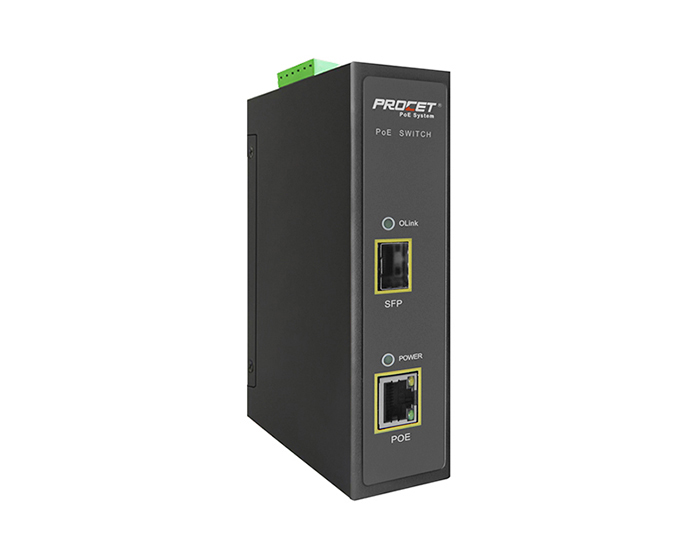

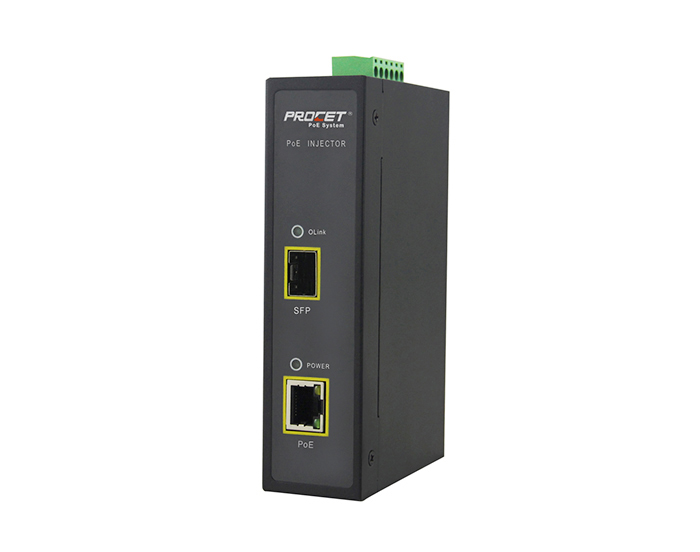

PT-PSE105GS-D is a single port fiber PoE Media converter with 2 Pair PoE up to 30 watts of power with 6Kv surge protection
Designed for the PoE+ powered 30W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks. It supports 1000Mbps of data rates. Fully comply with IEEE802.3at and remains compatible with any IEEE802.3af compliant devices. Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non PoE device.

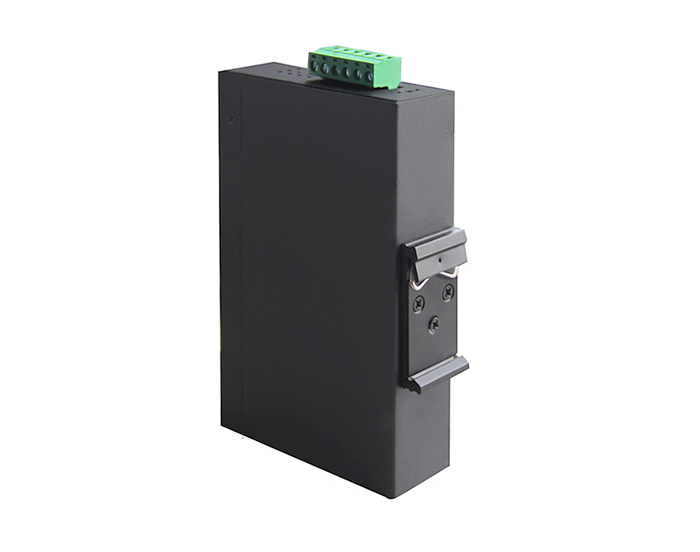

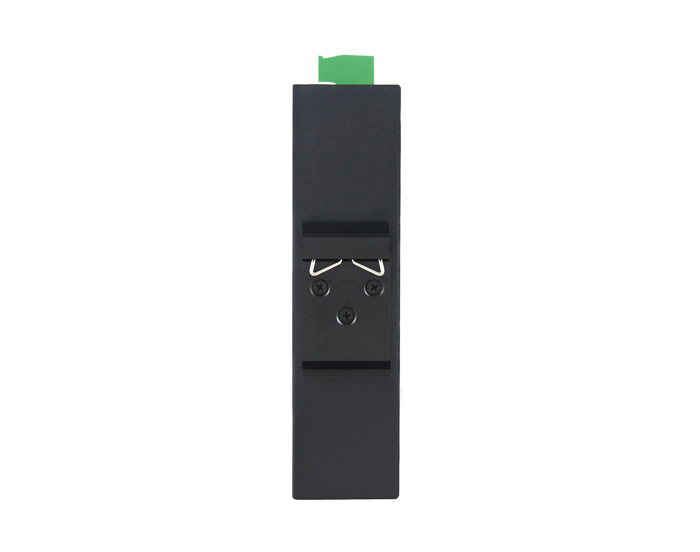

Enclosed in an IP40 high-impact metal case with DIN Rail mount bracket, designed for indoor use but can work outdoor by covered with waterproof case. It works with a wide input voltage of 44-55Vdc, the output voltage follows input and operates under -40℃ to +65℃, For planning purposes, the effective distance is 100 meters over Cat5e/Cat6 cables. It is suitable for special scenarios, like highway side, exurb, etc.
Specifications
| Parameter | Description |
| Key Features | Industrial Fiber PoE can be outdoor use by covered with waterproof case Surge protection at PoE port 1000Base-FX to 1000Base-TX SFP slot for Multi mode or Single mode SFP transceiver Gigabit data rates DIN Rail mount IP40 high-impact metal enclosure Extend temperature from -40℃ to 65℃ Diagnostic LEDs |
| Part Number | PT-PSE105GS-D |
| Ports condition | SFP Port*1, PoE Output Port*1, DC input Terminal Block *1 |
| Regulatory Compliance | IEEE802.3at RoHS Compliance WEEE Compliance |
| Pass Through Data Rates | 1000 Mbps |
| Output | Pin Assignment and Polarity: 4/5 (+), 7/8 (–) Output Power Voltage: 44-55Vdc User Port Power: 30W Guaranteen |
| Input | DC Input Voltage: 44 to 57Vdc |
| Working Environment | Operating Temperature: -40℃ to 65℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -40℃ to 85℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 5000meters |
| PoE Surge Protection | Protected line: 1,2,3,4,5,6,7,8 Common mode surge protection(10/700us): 6KV Differential mode surge protection (10/700us): 1.5KV |
| Mechanical Characteristics | Case: Metal Color: Black Mounting: DIN-rail IP Rated: IP40 Connectors: Shielded RJ-45*1, SFP slot *1 Size: 144.5mmX 96mmX 35.4mm Weight: 400g（0.88lb） |
| LED Indicator | Power Indicator: Green PoE Load Indicator: Yellow SFP fiber indicator: Green Lan data indicator: Yellow |
| Safety Approvals | CE |
