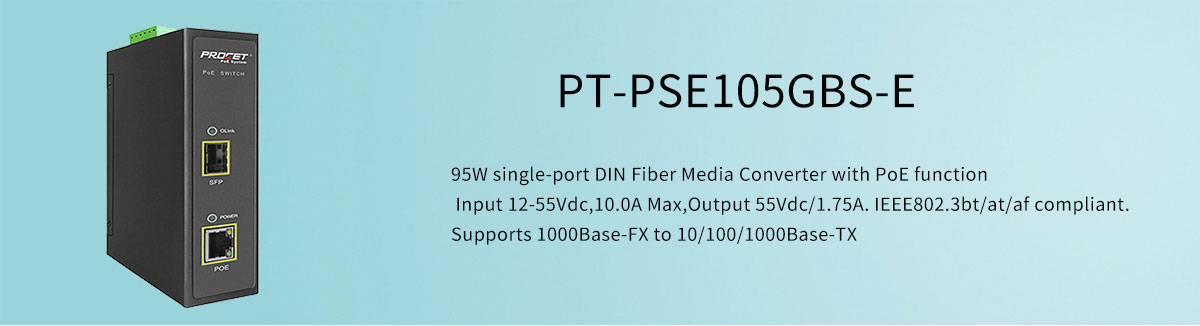

PT-PSE105GBS-E is an industrial-rated media converter with PoE functionality that can be used as a PoE Injector offers a unique solution to powering long-range installations, where the data input comes over fiber, such as special scenarios, like highway side, exurb applications,Designed for the IEEE802.3bt powered 95W PoE Powered Devices(PDs)，such as ip cameras,wireless APs,Microwave radio,loT application,door locks,displays,POS,and information kiosks.SFP fiber Optical Slot supports 1000Base-FX.
Fully comply with IEEE802.3bt and remains compatible with any IEEE802.3bt/at/af compliant devices. Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non-PoE device.
Enclosed in an IP40 high-impact metal case with DIN-Rail mount bracket,designed for indoor use but can work outdoor by covered with waterproof case.It works with a wide input vottage of 12-55vdc make it possible for solar application and operates from -40℃ to +65℃, For planning purposes, the effective distance is 100 meters over Cat5e/Cat6 cables.
Specifications
| Parameter | Description |
| Key Features | Industrial Fiber PoE can be outdoor use by covered with waterproof case Extend temperature from -40℃ to 65℃ Lighting Protection at PoE port SFP fiber Optical Slot, 1000Base-FX to 10/100/1000Base-TX, support single-mode or multi-mode transceivers RJ45 Port: 10/100/1000Mbps(Gigabit), supports Full/Half Duplex auto-negotiation and MDI/MDIX auto-crossover IP40 high-impact metal enclosure Diagnostic LEDs |
| Part Number | PT-PSE105GBS-E |
| Ports condition | DC Input Port*1, SFP Port*1, PoE Output Port*1 |
| Regulatory Compliance | IEEE802.3bt RoHS Compliance WEEE Compliance |
| Pass Through Data Rates | 10/100/1000BASE-T RJ45 Interfaces 1000BASE-X SFP Interfaces |
| Output | Pin Assignment and Polarity: 4/5 (+), 7/8 (–) & 3/6(+),1/2(-) Output Power Voltage: 55Vdc User Port Power: 95W Guaranteen |
| Input | DC Input Voltage: 12 to 55 Vdc DC Input Current: 10.0A |
| Working Environment | Operating Temperature: -40℃ to 65℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -40℃ to 85℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 5000meters |
| PoE Surge Protection | Protected line: 1,2,3,4,5,6,7,8 Common mode surge protection(10/700us): 6KV Differential mode surge protection (10/700us): 1.5KV |
| Mechanical Characteristics | Case: Metal Color: Black Mounting: DIN-rail IP Rated: IP40 Connectors: Shielded RJ-45*1, SFP slot*1 Size: 144.5mmX 95mmX 35.4mm Weight: 485g（1.1lb） |
| LED Indicator | Power indicator: Green Load active Indicator: Green SFP fiber indicator: Green LAN data indicator: Yellow |
| Safety Approvals | CE |
