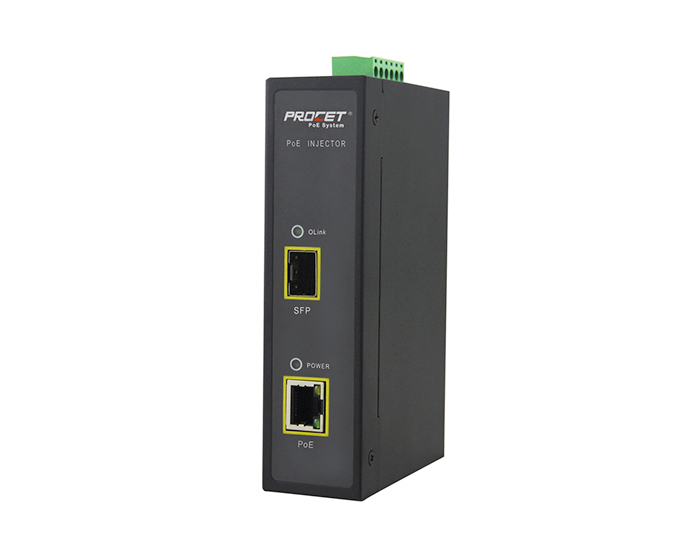

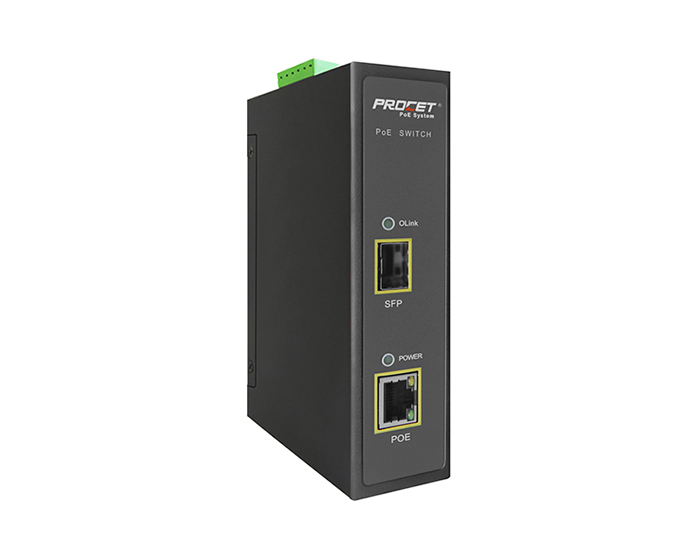

PT-PSE105GWS-E SFP 60W BT PoE Media Converter

PT-PSE105GWS-E Fiber PoE Media converter specially designed for complex industrial backhaul and networking applications, special scenarios, like highway side, exurb, etc. Enclosed in an IP40 high-impact metal case with DIN Rail mount bracket, but can work outdoor by covered with waterproof case.


After negotiating IEEE802.3bt standard PoE, the single PoE output port delivers 55Vdc, 1.1A up to 60W power with 6KV surge protection for remote PDs over 4 Pair at 10/100/1000Mbps data rates.  It works with a wide input voltage of 12-55Vdc make it possible for solar application and operates under -40℃ to +65℃. It fully complies with IEEE802.3bt and remains compatible with any IEEE802.3af/at compliant devices, such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks.


For planning purposes, the effective distance is 100 meters over Cat5e/Cat6 cables.

  • Specifications
  • Support & Dowload
  • Gallery
  • Test Results
  • Standing Stock

Specifications


ParameterDescription
Key FeaturesIndustrial Fiber PoE can be outdoor use by covered with waterproof case
Surge protection at PoE port
1000Base-FX to 1000Base-TX
SFP slot for Multi mode or Single mode SFP transceiver
Gigabit data rates
12-55VDC input make it possible for solar application

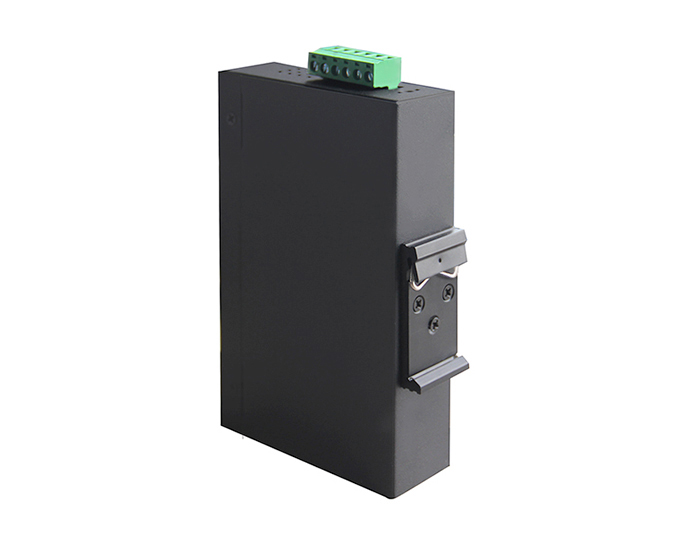

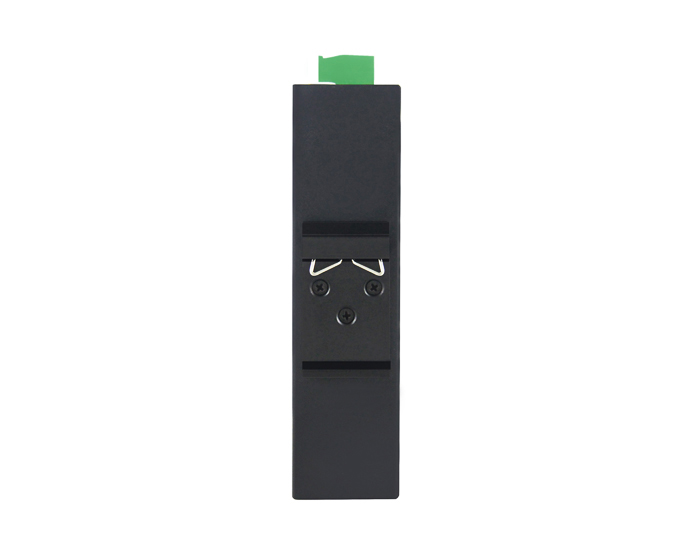

DIN Rail mount
IP40 high-impact metal enclosure
Extend temperature from -40 to 65
Diagnostic LEDs
Part NumberPT-PSE105GWS-E
Ports conditionSFP Port*1, PoE Output Port*1, DC input Terminal Block   *1
Regulatory ComplianceIEEE802.3bt
RoHS Compliance
WEEE Compliance
Pass Through Data Rates

10/100/1000BASE-T RJ45 Interfaces

1000BASE-X SFP Interfaces

OutputPin Assignment and Polarity:
4/5(+), 7/8(-) & 3/6(+),1/2(-)
Output Power Voltage:
55Vdc
User Port Power: 60W Guaranteen
InputDC Input Voltage: 12 to 55 Vdc
DC Input Current: 10.0A
Working EnvironmentOperating Temperature: -40 to 65
Operating Humidity: 20% to 80%, non-condensation
Storage Temperature: -40
to 85

Storage Humidity: 10% to 90%, non-condensation

Operating Altitude: up to 5000meters

PoE Surge ProtectionProtected line: 1,2,3,4,5,6,7,8
Common mode surge protection(10/700us):
6KV
Differential mode surge protection (10/700us): 1.5KV
Mechanical CharacteristicsCase: Metal
Color: Black
Mounting: DIN-rail

IP Rated: IP40
Connectors:
Shielded RJ-45*1, SFP slot*1
Size: 144.5mmX 95mmX 35.4mm
Weight: 485g
1.1lb
LED IndicatorPower Indicator: Green
PoE Load Indicator: Green
SFP fiber indicator: Green
PoE data indicator: Yellow
Safety ApprovalsCE
