PT-PSE105GWS-AC is an indoor rated fiber PoE Media converter specially designed for complex industrial backhaul and networking applications, special scenarios, like highway side, exurb, etc. Enclosed in an IP40 high-impact metal case with DIN Rail mount bracket, but can work outdoor by covered with waterproof case.
After negotiating IEEE802.3bt standard PoE, the single PoE output port delivers 55Vdc, 1.1A up to 60W power with 6KV surge protection for remote PDs over 4 Pair at 10/100/1000Mbps data rates. It works with a wide input voltage of 100-240Vac or 44-57Vdc and operates under -40℃ to +65℃. It fully complies with IEEE802.3bt and remains compatible with any IEEE802.3af/at compliant devices, such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks.
For planning purposes, the effective distance is 100 meters over Cat5e/Cat6 cables.
Specifications
| Parameter | Description |
| Key Features | Industrial Fiber PoE can be outdoor use by covered with waterproof case Surge protection at PoE port 1000Base-FX to 1000Base-TX SFP slot for Multi mode or Single mode SFP transceiver Gigabit data rates DIN Rail mount IP40 high-impact metal enclosure Extend temperature from -40℃ to 65℃ Diagnostic LEDs Equipped with AC and DC input port |
| Part Number | PT-PSE105GWS-AC |

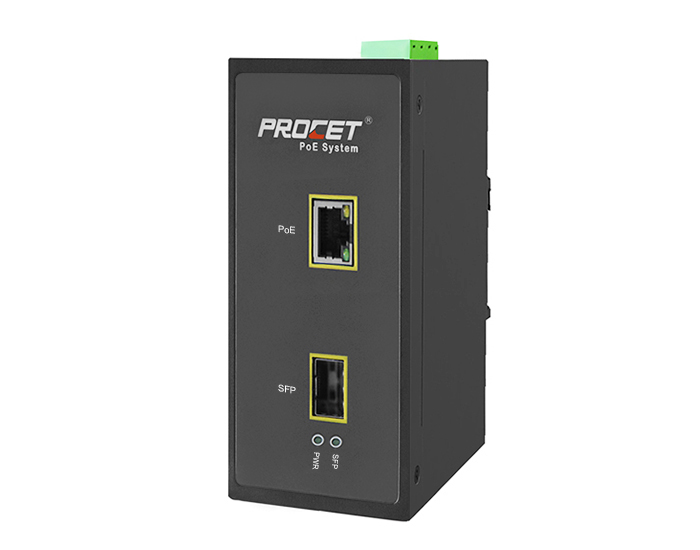

| Ports condition | SFP Port*1, PoE Output Port*1, AC input Port*1, DC input Terminal Block *1 |
| Regulatory Compliance | IEEE802.3af/at/PoE++ RoHS Compliance WEEE Compliance |
| Pass Through Data Rates | 10/100/1000BASE-T RJ45 Interfaces 1000BASE-X SFP Interfaces |
| Output | Pin Assignment and Polarity: 4/5 (+), 7/8 (–) & 3/6(+),1/2(-) Output Power Voltage: 55Vdc @AC input 44-57Vdc @DC input User Port Power: 60W Guaranteen |
| Input | AC Input Voltage:90 to 264Vac(100 to 240Vac Rated) Frequency: 47 to 63Hz (50/60Hz Typ.) DC Input Voltage: 44 to 57 Vdc |
| Working Environment | Operating Temperature: -40℃ to 65℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -40℃ to 85℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 5000meters |
| PoE Surge Protection | Protected line: 1,2,3,4,5,6,7,8 Common mode surge protection(10/700us): 6KV Differential mode surge protection (10/700us): 1.5KV |

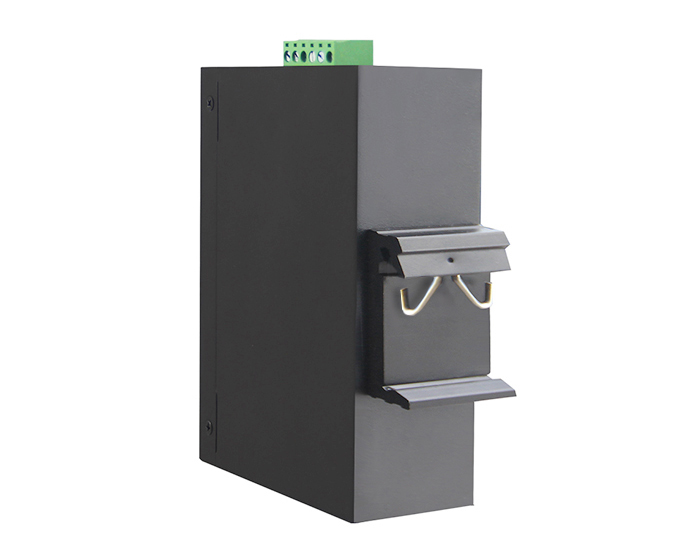

| Mechanical Characteristics | Case: Metal Color: Black Mounting: DIN-rail IP Rated: IP40 Connectors: Shielded RJ-45*1, SFP slot *1 Size: 144.5mmX 104.2mmX 60mm Weight: 819g（l.8lb） |

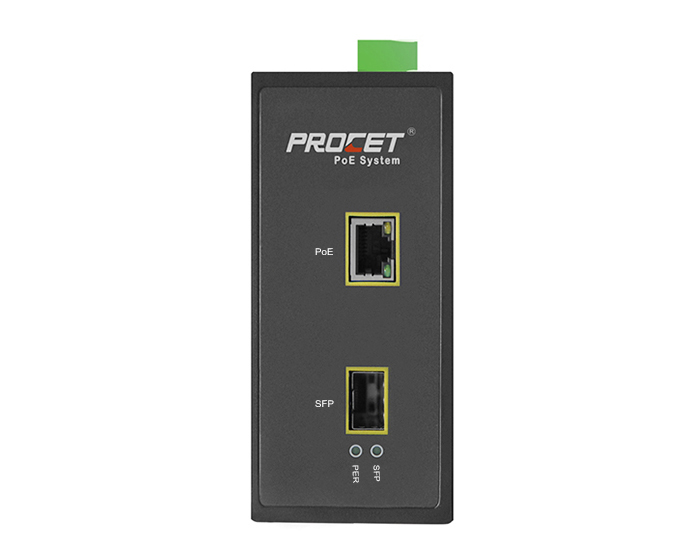

| LED Indicator | Power Indicator: Green PoE Load Indicator: Yellow SFP fiber indicator:Green Lan data indicator: Yellow |
