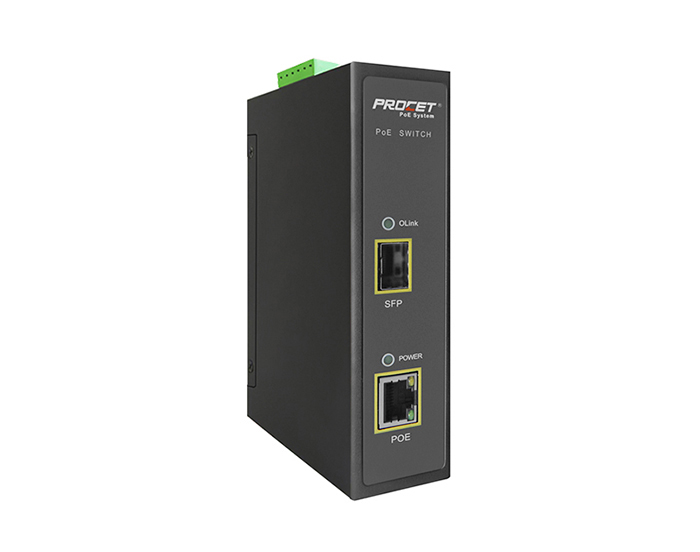

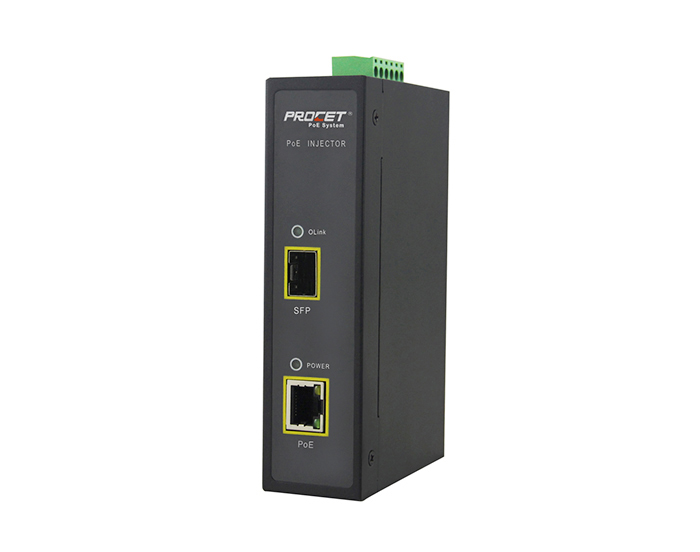

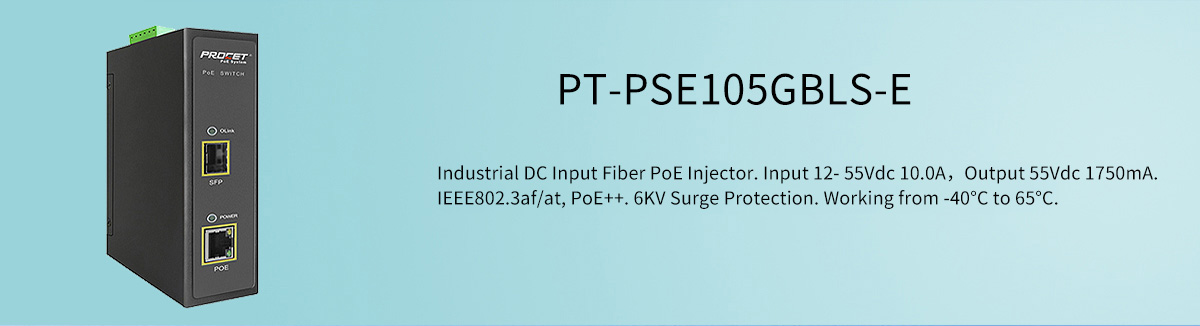

PT-PSE105GBLS-E is an industrial-rated media converter with PoE functionality that can be used as a PoE Injector offers a unique solution to powering long-range installations, where the data input comes over fiber, such as special scenarios, like highway side, exurb applications. Designed for PoE++ powered 95W PoE Powered Devices(PDs), such as IP Cameras, wireless APs,Microwave radio, loT application, door locks, displays, POS, and information kiosks SFP fiber Optical Slot supports 1000Base-FX.
Fully comply with PoE++ and remains compatible with any IEEE802.3bt/at/af compliant devices. Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non-PoE device.

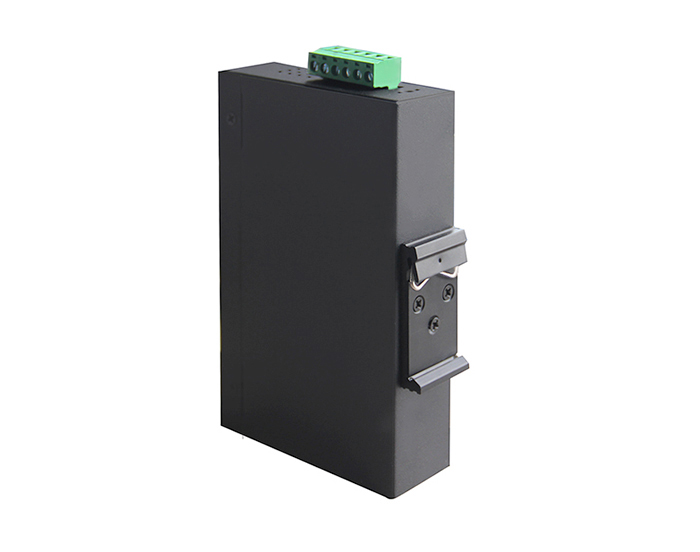

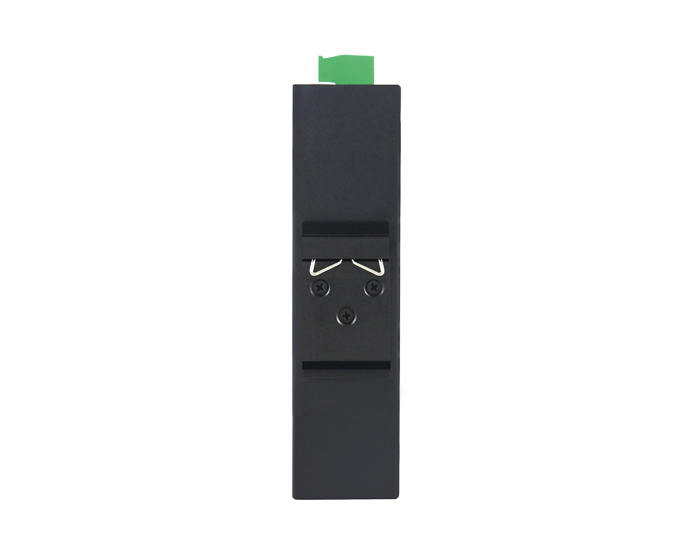

Enclosed in an IP40 high-impact metal case with DIN-Rail mount bracket, designed for indoor use but can work outdoor by covered with waterproof case. It works with a wide input vottage of 12-55Vdc makes it possible for solar application and operates from -40°C to +65%C, For planning purposes, the effective distance is 100 meters over Cat5e/Cat6 cables.
Specifications
| Parameter | Description |
| Key Features | Industrial Fiber PoE can be outdoor use by covered with waterproof case Extend temperature from -40℃ to 65℃ Lighting Protection at PoE port SFP fiber Optical Slot, 1000Base-FX to 10/100/1000Base-TX, support single-mode or multi-mode transceivers RJ45 Port: 10/100/1000Mbps(Gigabit), supports Full/Half Duplex auto-negotiation and MDI/MDIX auto-crossover IP40 high-impact metal enclosure Diagnostic LEDs |
| Part Number | PT-PSE105GBLS-E |
| Ports condition | DC Input Port*1, SFP Port*1, PoE Output Port*1 |
| Regulatory Compliance | IEEE802.3af/at/PoE++ RoHS Compliance WEEE Compliance |
| Pass Through Data Rates | 10/100/1000BASE-T RJ45 Interfaces 1000BASE-X SFP Interfaces |
| Output | Pin Assignment and Polarity: 4/5 (+), 7/8 (–) & 3/6(+),1/2(-) Output Power Voltage: 55Vdc User Port Power: 95W Guaranteen |
| Input | DC Input Voltage: 12 to 55 Vdc DC Input Current: 10.0A |
| Working Environment | Operating Temperature: -40℃ to 65℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -40℃ to 85℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 5000meters |
| PoE Surge Protection | Protected line: 1,2,3,4,5,6,7,8 Common mode surge protection(10/700us): 6KV Differential mode surge protection (10/700us): 1.5KV |
| Mechanical Characteristics | Case: Metal Color: Black Mounting: DIN-rail IP Rated: IP40 Connectors: Shielded RJ-45*1, SFP slot*1 Size: 144.5mmX 95mmX 35.4mm Weight: 485g（1.1lb） |
| LED Indicator | Power indicator: Green Load active Indicator: Green SFP fiber indicator: Green LAN data indicator: Yellow |
| Safety Approvals | CE |
