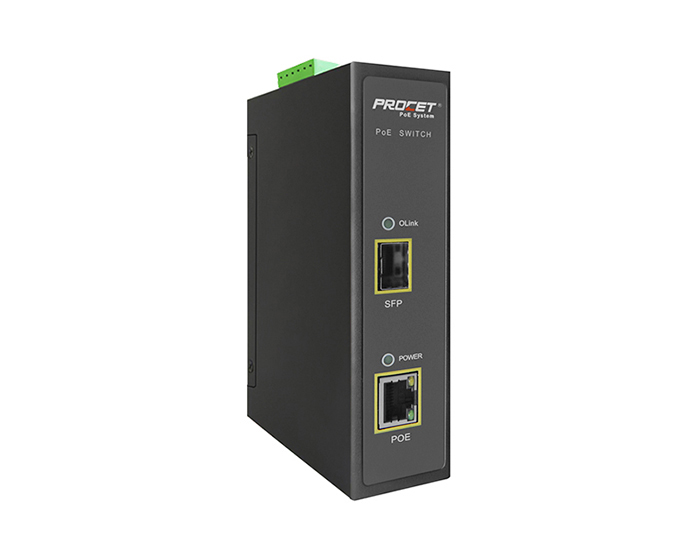

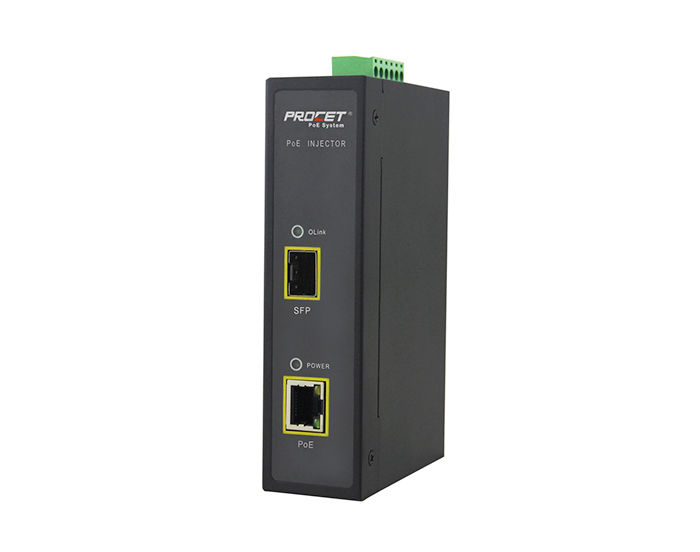

PT-PSE105GWS-D DIN Rail SFP 60W PoE Media Converter

PT-PSE105GWS-D is a DIN Rail SFP PoE Media Converter with 4 Pair power up to 60 watts  44-57 VDC


Designed for the BT powered 60W PoE Powered Devices (PDs), such as wireless access points, network cameras, VoIp phones, Base station, Microwave radio and other high power Ethernet terminals. It supports 1000Mbps of data rates. It is also compatible and safe to use with any IEEE802.3af/at compliant terminals. Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non PoE device.


Enclosed in an IP40 metal case, designed for indoor use but can work outdoor by covered with waterproof case with a Din-rail mount bracket. It operates with the input voltage of 44-57 VDC.

  • Specifications
  • Support & Dowload
  • Gallery
  • Test Results
  • Standing Stock

Specifications

ParameterDescription
Key FeaturesIndustrial Fiber PoE can be outdoor use by covered with waterproof case
Surge protection at PoE port
1000Base-FX to 1000Base-TX
SFP slot for Multi mode or Single mode SFP transceiver
Gigabit data rates
DIN Rail mount
IP40 high-impact metal enclosure
Extend temperature from -40 to 65
Diagnostic LEDs
Part NumberPT-PSE105GWS-D
Ports conditionSFP Port*1, PoE Output Port*1, DC input Terminal Block *1
Regulatory ComplianceIEEE802.3bt
RoHS Compliance
WEEE Compliance
Pass Through Data Rates

10/100/1000BASE-T RJ45 Interfaces

1000BASE-X SFP Interface

OutputPin Assignment and Polarity:
4/5 (+), 7/8 (–) & 3/6(+),1/2(-)
Output Power Voltage:
42-55Vdc(Typical 48-55Vdc)
User Port Power:
60W Guaranteen
Input

DC Input Voltage: 44-57Vdc(Typical 50-57Vdc)

Power: 60W

Working EnvironmentOperating Temperature: -40 to 65
Operating Humidity: 20% to 80%, non-condensation
Storage Temperature: -40
to 85
Storage Humidity: 10% to 90%, non-condensation
Operating Altitude: up to 5000meters
PoE Surge ProtectionProtected line: 1,2,3,4,5,6,7,8
Common mode surge protection(10/700us):
6KV
Differential mode surge protection (10/700us): 1.5KV
Mechanical CharacteristicsCase: Metal
Color: Black

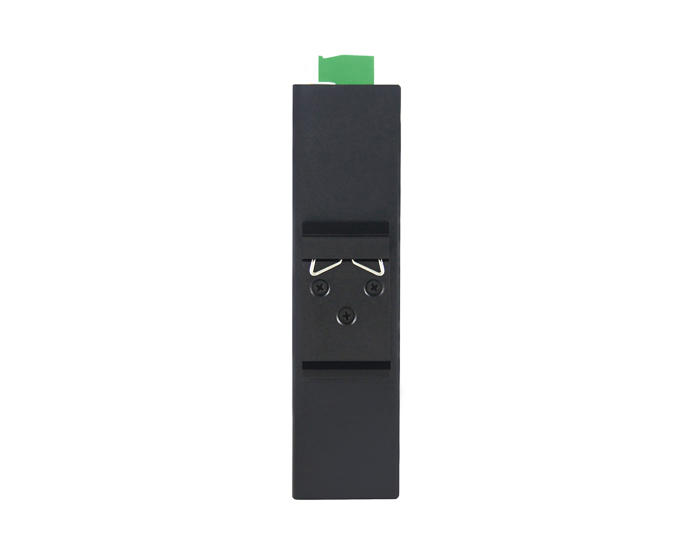

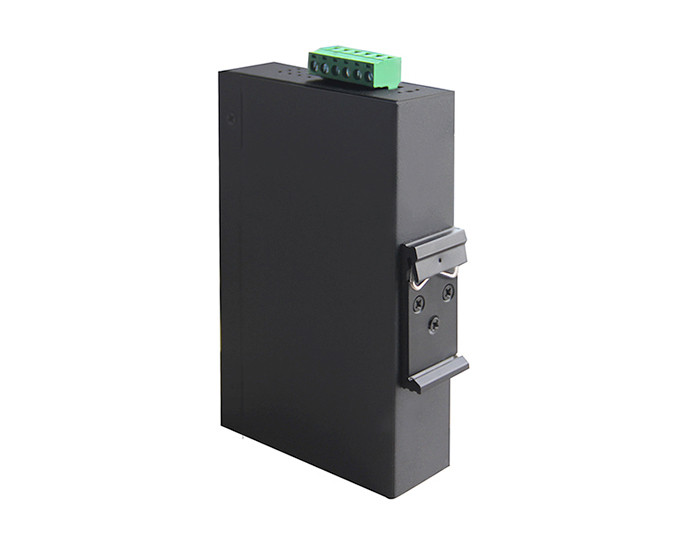

Mounting: DIN-rail
IP Rated: IP40
Connectors: Shielded RJ-45*1, SFP
slot *1
Size: 144.5mmX
96mmX   35.4mm
Weight: 485g
lb
LED IndicatorPower Indicator: Green
PoE Load Indicator: Yellow
SFP fiber indicator:Green
Lan data indicator: Yellow
Safety ApprovalsCE
