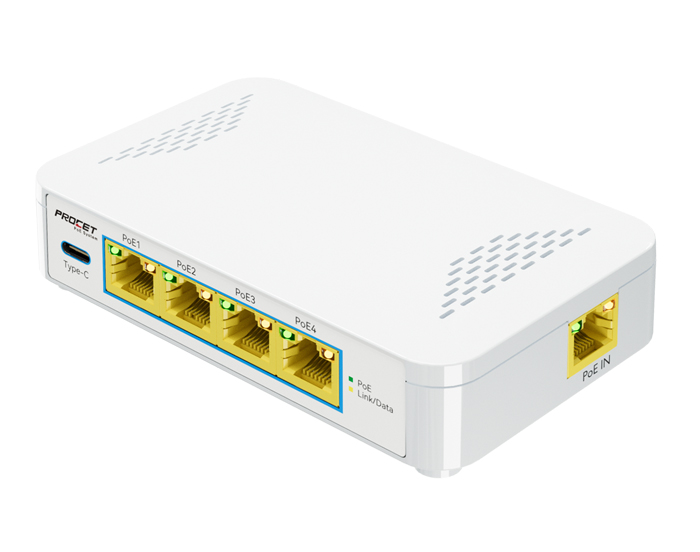

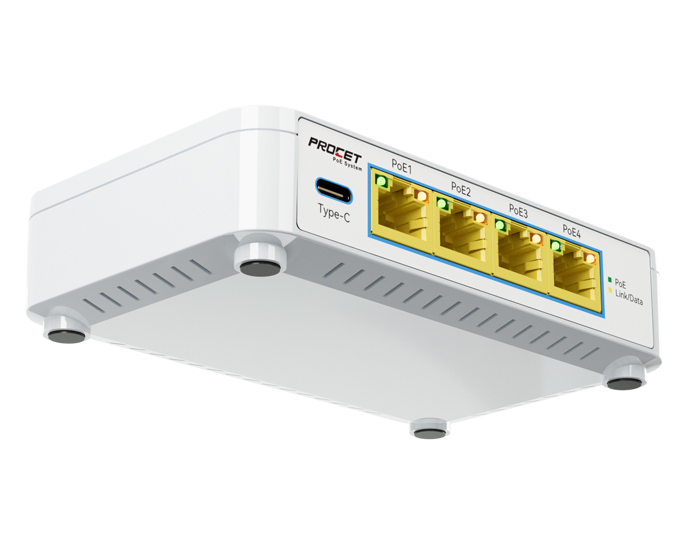

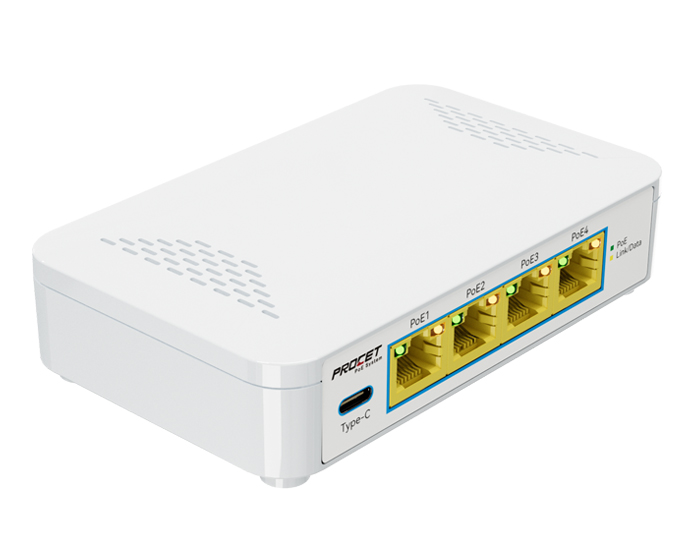

EN-PEX04GBC is a 4-port Gigabit PoE extender, can deliver power and transmit data to 4 802.3af/at PDs simultaneously, total power budget is 65W. It is powered by an ultra 802.3bt/PoE++ switch or PSE, does not need an external power adapter. The maximum power input is 90W. The total effective distance from data source to PD is 200 meters over CAT5e/CAT6 cables. Daisy-chain 2 units reaching 300m from end to end or by star topology can power up 7 PDs.
Equipped a USB-C port, which can deliver power to mobile phone，tablet or USB-C devices. Designed with OVP, OCP, SCP function.
Specifications
| Parameter | Description |
| Model | EN-PEX04GBC |
| PoE Standard | IEEE802.3i 10Base-T Ethernet |
| IEEE802.3u 100Base-Tx Fast Ethernet | |
| IEEE802.3ab 1000Base-T Gigabit Ethernet | |
| CE | |
| IEEE802.3 af / at / bt | |
| Class Level | Class8 |
| PoE Out Power Pins | 3/6(+)，1/2(-) |

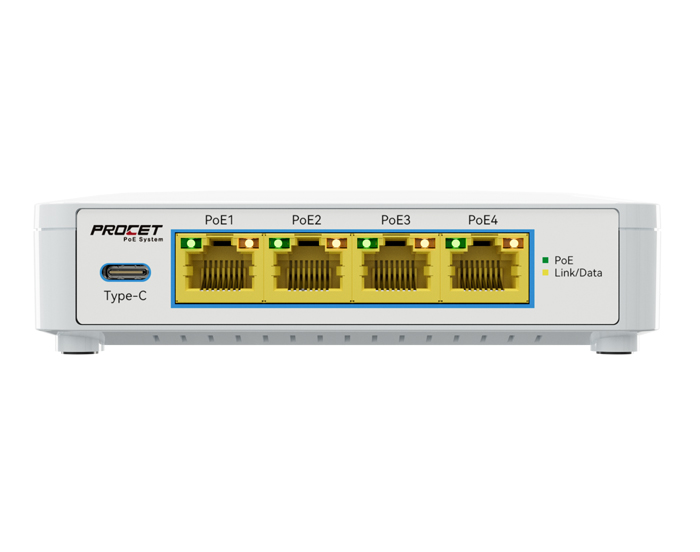

| Input&Output | Interface：PoE IN*1，PoE Out*4，USB-C*1 |
| PoE++/802.3bt/Passive, 44-57Vdc, Typical: 90W | |
| PoE Input：90W / IEEE802.3 bt/PoE++ | |
| PoE Output：802.3af/at, 30W(max)*4 Ports, total 65W | |
| Type-C Output：5V 2.0A /Maxium 10W | |
| Data Speed：10 / 100 / 1000Mbps | |
| Operating Environment | Work Temp.：0℃ to 40℃ |
| Operating Humidity：20% to 80%, non-condensation | |
| Storage Humidity：10%-90%，non-condensation | |
| Operating Altitude：Up to 2000 meters | |
| Mechanical Characteristics | Case：Plastic |
| Color：White | |
| IP Rated：IP20 | |
| Dimensions： 116.4mm X 71.3mm X 30.5mm | |
| Weight：151.3g | |
| EMC | EN 55032:2015/A11:2020 EN 55035:2017/A11:2020 |
| Network Protocol | IEEE802.3i |
| IEEE802.3u | |
| IEEE802.3ab | |
| Regulatory Compliance | CE |
| PoE Load Indicator Green | Solid Light：PD is powered(Default/Normal) |
| Light Off：No connection to PD | |
| Data Indicator Yellow | Flashing Light：Data available(Normal) |
| Light Off：No Data transmission | |
| Light Off | PoE Switch is powered off/defective. |
