PT-PEX02GB-2-OT is an industrial-grade 2.5G PoE network extender designed for harsh outdoor environments. With two PoE output ports, it supports flexible deployment for security monitoring, high-speed outdoor wireless access, and smart city projects, delivering stable long-distance power and data to two devices without additional power sources.
Constructed with a rugged aluminum-alloy housing, electromagnetic shielding, and white electrostatic coating, it meets IP67 and IEC 60950-22 standards and operates reliably from -40°℃ to +65°℃, ensuring strong resistance to dust, rain, and severe weather.
Supporting up to 2.5G outdoor wireless devices, it offers high-speed data transmission over CAT5e/CAT6, with 200m single-stage and up to 500m four-stage cascade capability. The device also integrates 6kV surge, 6kV contact / 8kV air ESD, and overcurrent protection for safe and reliable network operation.
Specifications
| ltem | PT-PEX02GB-2-OT |
| PoE Output Interface | 2*100/1000/2500MBase-T RJ45(with waterproof connector) |
| PoE Standard | IEEE802.3af/at/bt Power over Ethemet |
| Input | 44~57Vdc Max 90W |
| Data Rate | 100/1000/2500Mbps |
| Output | 55Vdc0.82A(Max)Single port Max 50W,total 88W |
| IPC | <2W |
| ESD Protection | 6kV contact discharge;8kV air discharge,Standard:IEC61000-4-2 |
| Surge Protection | Protected Lines: 1,2,3,4,5,6,7,8 Common Mode Protection(10/700us):6KV Differential Mode Protection(10/700us):1.5KV Clamping Voltage(Line-to-Ground):300V Clamping Voltage(Line-to-Line):10V Insertion Loss(10MHz/100MHz):-1db Return Loss(10MHz/100MHz):-20db Response Time: 5ns |
| Switching Mode | Store and forward |
| Network Protocols | IEEE802.3 Ethemet IEEE802.3u Fast Ethernet IEEE802.3ab Gigabit Ethernet IEEE802.3i/IEEE802.3u/IEEE802.3ab/IEEE802.3z IEEE802.3bz |
| Trans. Distance | Extends 100m per extender Up to 4 cascaded levels, max distance 500m |
| Op Temp | -40℃-65℃ |
| Op Humid | 10%-95%,non-condensing |
| Op Alt | Up to 5000m |
| Stor Temp | -40℃-85℃ |
| Stor Humid | 10%-90%,non-condensing |
| Enclosure | Material: Aluminum alloy(metal sealing + waterproof) |

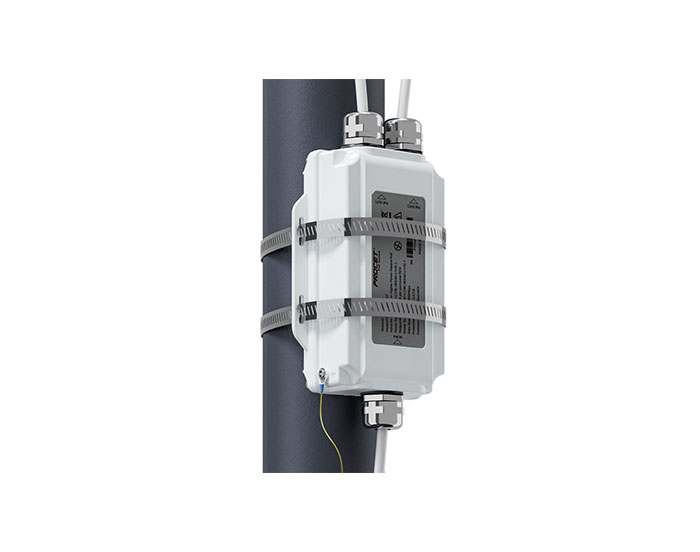

| Installation | Pole-mount (φ70~110mm) /Wall-mount (expansion screws) |
| Protection | IP67 (dust-proof & waterproof) |
| Size & Weight | 194mmx101mmx41mm(532g) |
| Certification | CE FCC |
