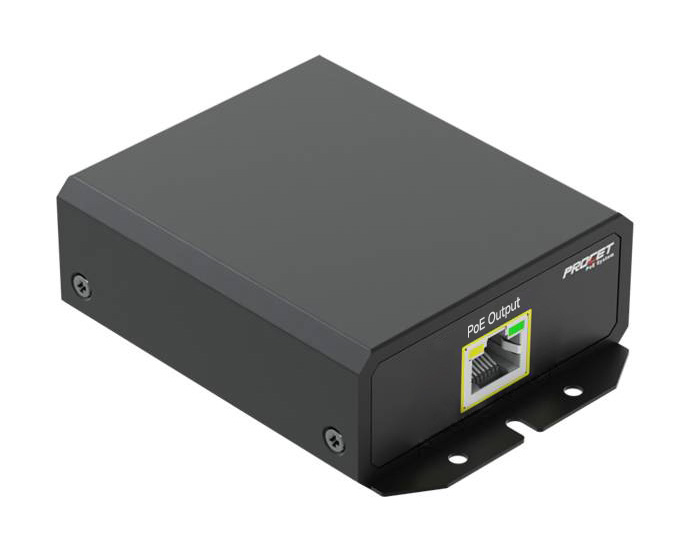

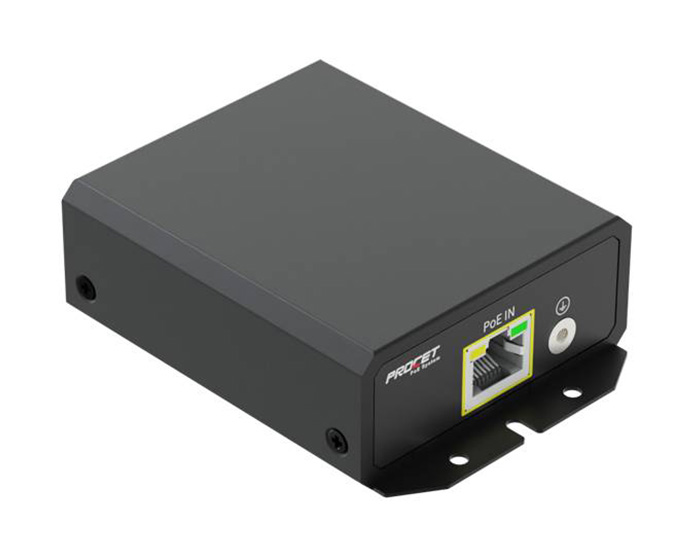

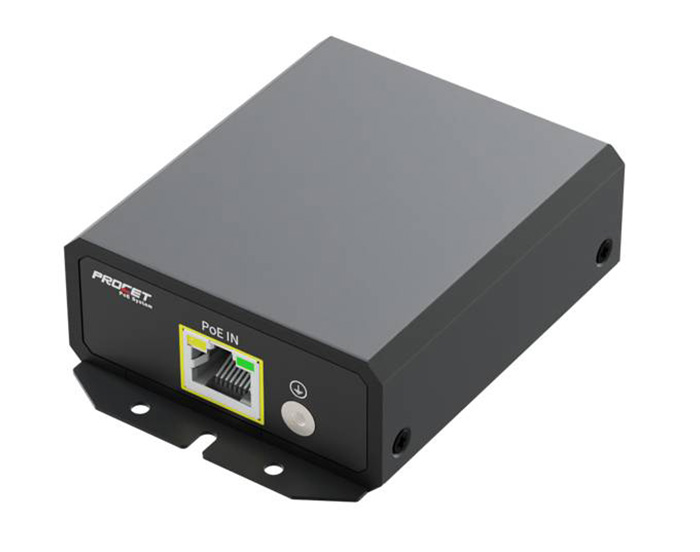

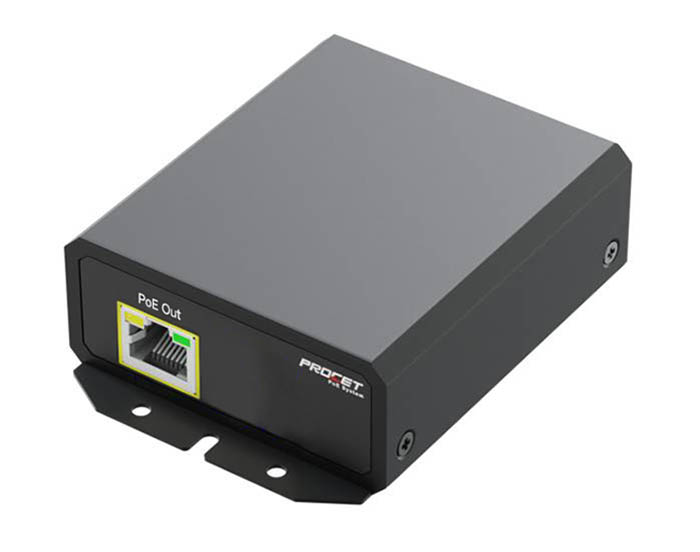

PT-PEX01GB Network Extender is designed based on IEEE802.3af/at/bt standard for extending network distance of double or more. One standard RJ45 input port supports 802.3bt injector and PoE switch to be fed.
One standard RJ45 output port provides 55V/0.55A power and 1000Mbps signal to standard PD. Can't power up non-802.3af/at/bt standard PDs.
The total effective distance from the PoE injector or PoE switch to the PD is 200 meters via Cat5e/- Cat6 cables.
Specifications
| Part Number | PT-PEX01GB |
| Standard | IEEE802.3 10Base-T Ethernet |
| IEEE802.3u 100Base-Tx Fast Ethernet | |
| lEEE802.3ab 1000Base-T Gigabit Ethernet | |
| Support PoE injector with IEEE802.3bt | |
| RoHS Compliance, WEEE Compliance | |
| Input &Output | Input :44 57Vac 1.5A Max IEEE802.3 bt |
| Output Pins: 4/5+,7/8- & 3/6+,1/2- | |
| Output: 44-57Vdc 1.1A (Max 60W) | |
| Data Speed: 10/100/1000 Mbps | |
| Working Environment | Operating Temperature: -40°C to 65°C |
| Operating Humidity: 20% to 80%, non-condensation | |
| Safety Approvals | CE,FCC |
| EMI | FCC Part 15 Subpart B, EN55032, EN55035 |
| Surge Protection | Common-mode: 6KV, differential-mode: 1.5KV |
| Mechanical Characteristics | Case: Metal |
| Color: Black | |
| IP Rated: IP40 | |
| Size: 98.5mm X 70.27mm X 29.7mm | |
| Weight: 184g | |
| Connectors：RJ45*2 Eathing terminal*1 |
