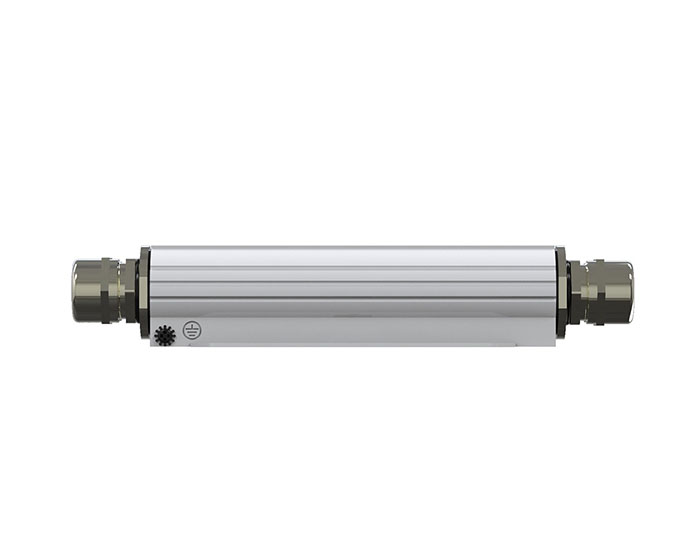

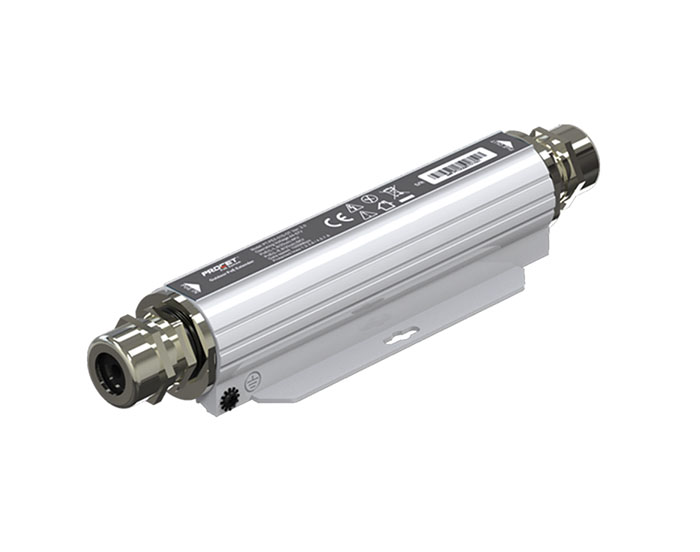

The PT-PEX25GB-OT is an industrial-grade 2.5G PoE network extender tailored for harsh outdoor environments. Ideal for security surveillance and outdoor network deployments, it utilizes advanced 2.5G tech for long-range PoE power delivery and ultra-fast, stable data transmission, meeting
high-traffic application needs.
Featuring an aluminum alloy shell with electromagnetic shielding and corrosion resistance, its IP67-rated, white electrostatic-sprayed surface withstands dust, water, and extreme weather. Compliant with IEC 60950-22, it operates stably from -40℃ to +65℃.
With CAT5e/CAT6 cables, it achieves 2.5Gbps speeds, boosting efficiency over traditional models. A single unit enables 200-meter transmission, extendable to 500 meters via four-stage cascading. Integrated 6kV surge and ESD protection, along with overcurrent safeguards, ensure end-to-end equipment and link security, making it a reliable choice for outdoor networking.
Specifications
| Item | PT-PEX25GB-OT |
| PoE Output Interface | 1*100/1000/2500MBase-T RJ45(with waterproof connector) |
| PoE Standard | IEEE802.3af/at/bt Power over Ethernet |
| Input Voltage | 44~57Vdc |
| Input Power | Max 95W |
| Output Power | 55Vdc 1.30A, 72W(Max) |
| IPC | <2.5W |
| ESD Protection | 6kV contact discharge; 8kV air discharge, Standard: IEC61000-4-2 |
| Surge Protection | Protected Lines: 1,2,3,4.5,6,7,8 Common Mode Protection(10/700us): 6KV Differential Mode Protection(10/700us): 1.5KV Clamping Voltage (Line-to-Ground) : 300V Clamping Voltage (Line-to-Line) : 10V Insertion Loss ( 10MHz/100MHz) : -1db Return Loss (10MHz/1 00MHz) : -20db Response Time: 5ns |
| Switching Mode | Store and forward |
| Network Protocols | IEEE802.3 Ethernet IEEE802.3u Fast Ethernet IEEE802.3ab Gigabit Ethermet IEE E802.3i/IEEE802.3u/IEEE802.3ab/IEEE802.3z IEEE802.3bz |
| Trans. Distance | Extends 100m per extender Up to 4 cascaded levels, max distance 500m |
| Op Temp | -40°C- 65C |
| Op Humid | 5%-95%，non-condensing |
| Op Alt | Up to 5000m |
| Stor Temp | -40°C- 85C |
| Stor Humid | 10%-90%，non-condensing |
| Enclosure | Material: Aluminum alloy(metal sealing + waterproof) |
| Installation | Pole-mount (φ70~110mm) / Wall-mount (expansion screws) |
| Protection | IP67 (dust-proof & waterproof) |
| Size & Weight | 209mm X 53mm X 37.5mm(410g) |
| Certification | CE FCC |
