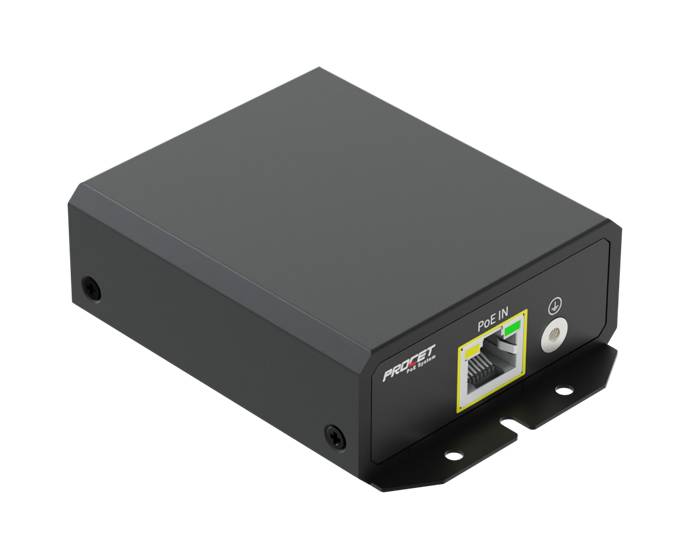

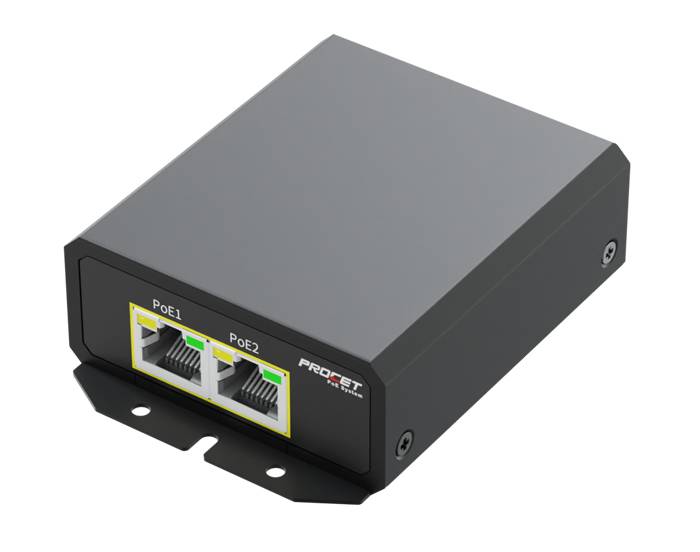

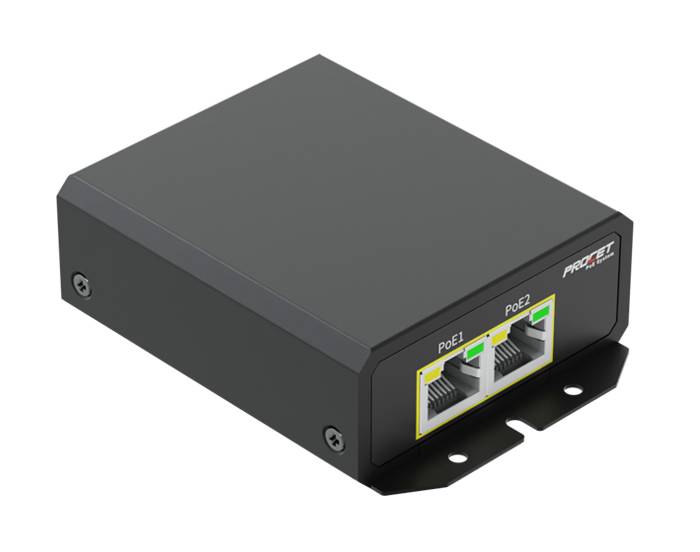

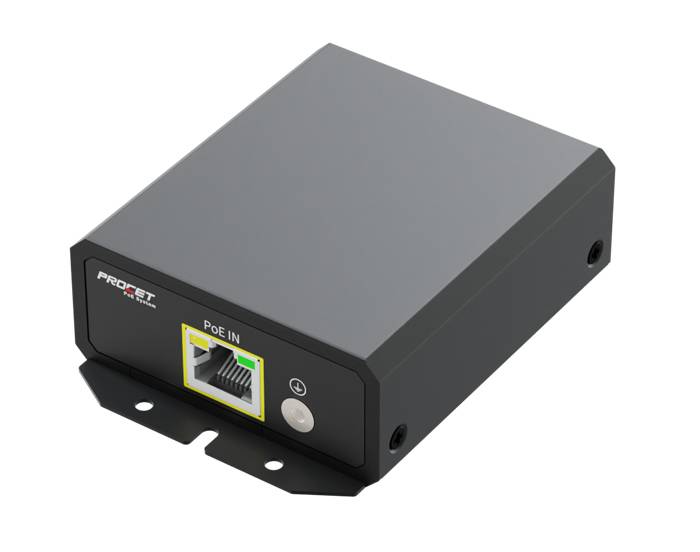

PT-PEX02GB is an industrial-rated PoE Extender with two PoE output ports, specially designed for complex backhaul and networking applications. Enclosed in a high-impact metal shell. The 3 ports 10/100/1000Mbps includes: 1 x PoE-powered input port with 802.3bt/PoE++ at 60W or higher of 95W(Max) and 2 x PoE output ports with 6KV (10/700us) surge protection. Each output port delivers 30W(Max) power for remote two PDs, totaling up to 60W.
PoE Input port requiring more power which is powered by ultra 802.3bt PoE++ works with an input voltage of 44- 57Vdc and operates under -40℃ to +65℃. Equipped detecting chip inside which will make the PoE identification handshake with IEEE802.3af/at/PoE+ PDs, such as wireless APs, IP cameras, base stations, Microwave radio, and other PoE power Ethernet backhaul devices. For planning purposes, the total effective distance from Ultra PoE to PDs is 200 meters over CAT5e/CAT6 cables without local power.
Specifications
| Parameter | Description | |
| Key Features | Industrial-rated Dual-Port PoE Extender | |
| 802.3af/at/bt standard | ||
| Daisy-chain 2 units reaching 300m from end to end or reaching 500m bystar topology | ||
| Working Temperature -40°C to 65℃ | ||
| Part Number | PT-PEX02GB | |
| Standard | IEEE802.3 10Base-T Ethernet | |
| IEEE802.3u 100Base-Tx Fast Ethernet | ||
| IEEE802.3ab 1000Base-T Gigabit | ||
| Full compliant with IEEE802.3af/at/PoE+ | ||
| RoHS & WEEE Compliance | ||
| Ports condition | Interface：PoE*3 Grounding*1 | |
| Output | Pin Assignment and Polarity: | |
| Output:55V /0.55A * 2 Ports (Total 60W) | ||
| Data Speed:10/100 / 1000Mbps | ||
| Input | Input:44-57Vdc 1.5A Max | |
| PoE Standard: IEEE802.3bt/PoE+ | ||
| Input Power Pins:4/5(+),7/8(-) &3/6(+),1/2(-) | ||
| Operating Environment | Working Temperature:-40℃to 65℃ | |
| Operating Humidity: 20% to 80%, non-condensation | ||
| Operating Altitude: Up to 2000 meters | ||
| Storage Humidity: 10%-90%，non-condensation | ||
| Storage Temperature: -20℃ to 70℃ | ||
| PoE Surge Protection | Protected line:1,2,3,4,5,6,7,8 | |
| Common mode surge protection(10/700us): 6KV | ||
| Differential mode surge protection (10/700us): 1.5KV | ||
| Network Protocol | IEEE802.3/IEEE802.3u/IEEE802.3ab | |
| Media Support | 10 / 100 / 1000BASE-TXCat5 or above UTP（≤328 feets） | |
| Regulatory Compliance | CE FCC | |
| IP Rated | IP40 | |
| Dimensions | Size: 98.5mm X 70.27mm X 29.7mm | |
| Weight:207.8g（7.33oz） | ||
| LED | Yellow Light | Solid light：Connected |
| Light off： Not connected or connection failed | ||
| Flashinglight: Data transmitting | ||
| Green Light | Light off：Not powered or no connection to device | |
| Solid light：Power on | ||
| EMC | FCC | FCC Part 15 Subpart B |
| CE | EN 55032:2015/A11:2020 | |
| EN 55035:2017/A11:2020 | ||
| Mechanical Characteristics | Case | Metal |
| Color | Black | |
