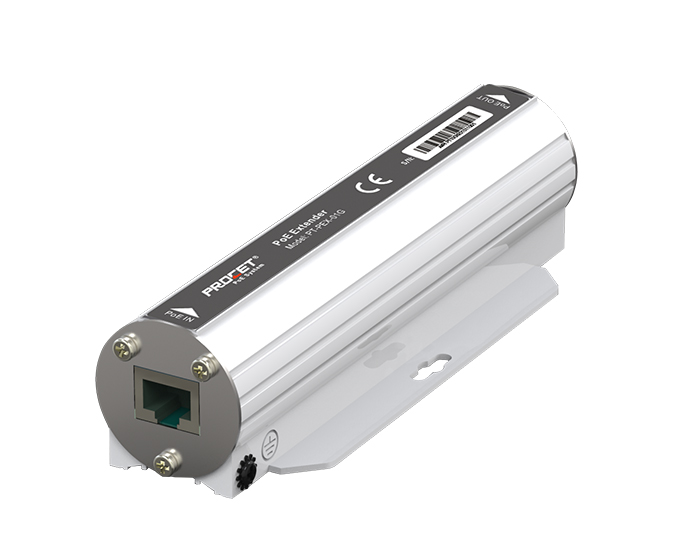

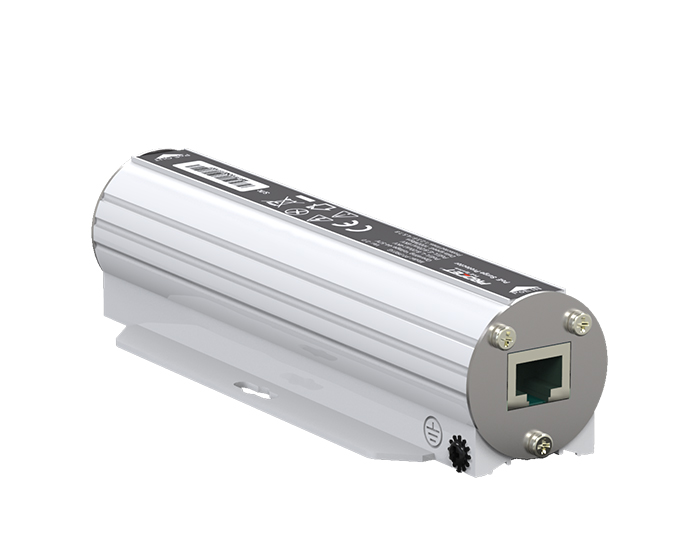

PT-PEX01G is a single-port PoE extender designed for networking applications with an IP 40 rated Aluminum alloy shell.It delivers 55Vdc(typical), 1.1A power from PoE Injector/switch to remote PDs over full 4 pairs with 6KV (10/700us) surge protection. It supports 10/100/1000Mbps of date speed. It works with 60W(Max) PoE PDs，such as wireless APs, base stations, network cameras and other high power Ethernet terminals.
It works with input voltage of 44-57Vdc from PoE injector/switch and operates under -40℃ to +65℃. On the input side, it connects to PoE injector or PoE switch, on the output side, it connects to PDs. The total effective distance from PoE injector to PD is 200 meters over CAT5e/CAT6 cables without local power. It can work longer to 500 meters with adding 4 PoE extenders. It is easy to install with 2 mounting holes and is specially suitable for working in complex power situations.
It supports terminal equipments with IEEE802.3af/at,PoE++ standard. There will be power loss after adding two or more extenders, but the output power can be up to 60W for your PD with one extender
Specifications
| Parameter | Description |
| Key Features | Expand 100M with one PoE extender Lighting Protection Wide temperature at -40℃ to 65℃ even up to 85℃ No local power is needed Gigabit data rates |
| Part Number | PT-PEX01G |
| Ports condition | PoE In Port*1, PoE Out Port*1 |
| Regulatory Compliance | IEEE802.3bt RoHS Compliance WEEE Compliance |
| Pass Through Data Rates | 10/100/1000 Mbps |
| Input & Output | Pin Assignment and Polarity: 4/5 (+), 7/8 (–) and 3/6(+),1/2(-) Operating Voltage :44-57Vdc, (Max 60Vdc) Maximum Operating DC Current :1.1A for 4 pairs, Maximum 60W |
| Working Environment | Operating Temperature: -40℃ to 65℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -40℃ to 85℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 5000meters |
| PoE Surge Protection | Protected Line: 1,2,3,4,5,6,7,8 Common Mode Protection Level(10/700us): 6KV Differential Mode Protection Level(10/700us): 1.5KV Clamping Voltage(Line to GND): 300V Clamping Voltage(Line to Line): 10V Insertion Loss @10MHz/100MHz：-1db Return Loss @10MHz/100MHz: -20db Response Time: 5ns |
| Mechanical Characteristics | Case: Aluminium alloy Color: White Mounting: Wall-mounted IP Rated: IP67 Connectors: Shielded RJ-45 Size: 209mm X 53mm X 37.5mm Weight: 250g（0.55lb） |
Standing Stock
| Product Order Info.(Model) | PT-PEX01G |
| Stock Quantity | 100PCS |
| Warehouse Location | Dongguan China |
| Sample Delivery Time | Within 24H |
| Bulk Stock Delivery Time | Within 48H |
| Shipping Way | DHL,UPS,FedEx,TNT, By SEA/AIR Customer Nominated Forwarder |
| Packing Size | Qty: 20pcs/carton Volume: 0.031 m³ Packing: Export Carton Pallet size: 110 x 110cm |
