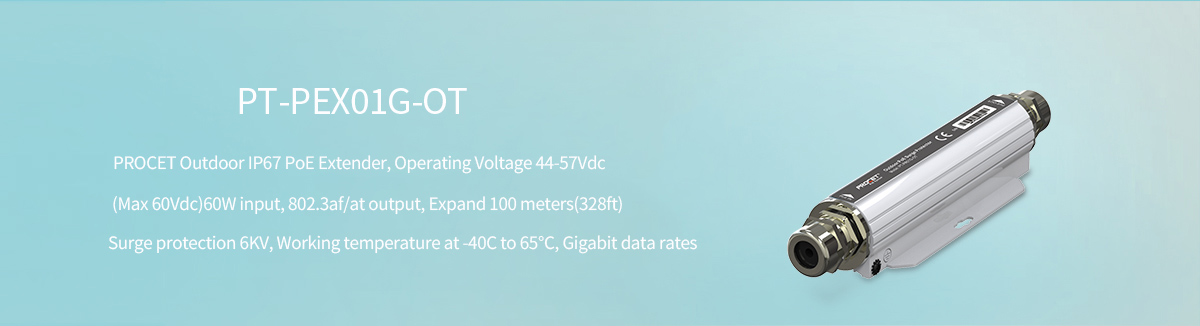

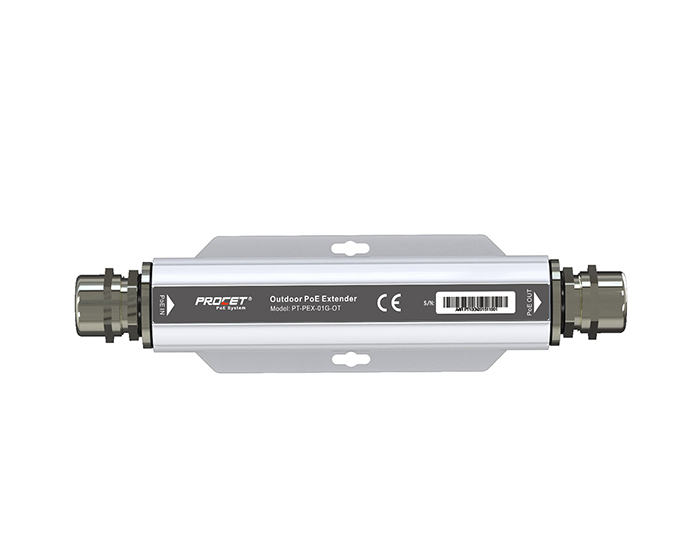

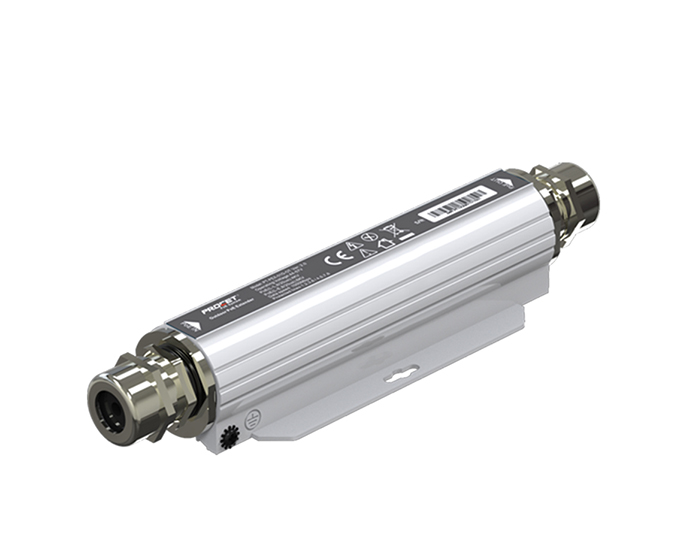

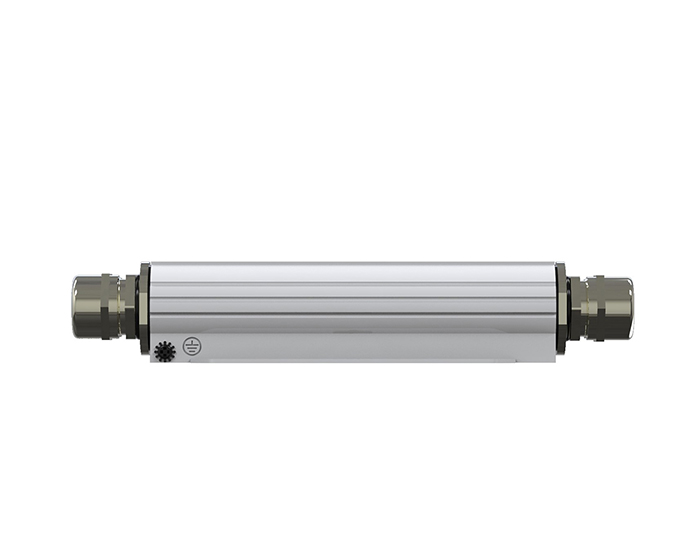

PT-PEX01G-OT is a single-port PoE extender designed for exterior complex backhaul and networking applications with an IP 67 rated Aluminum alloy shell.It gets 55Vdc(typical), 1.1A power from PoE Injector/switch to remote PDs over full 4 pairs with 6KV (10/700us) surge protection. It supports 10/100/1000Mbps of date speed.60W input, 60W input, 802.3af/at output，such as wireless APs, base stations, network cameras and other high power Ethernet terminals.
It works with input voltage of 44-57Vdc from PoE injector/switch and operates under -40℃ to +65℃. On the input side, it connects to PoE injector or PoE switch, on the output side, it connects to PDs. The total effective distance from PoE injector to PD is 200 meters over CAT5e/CAT6 cables without local power. It can work longer to 500 meters with adding 4 PoE extenders. It is easy to install with 2 mounting holes and is specially suitable for working in complex power situations.
It supports terminal equipments with IEEE802.3af/at,PoE++ standard. There will be power loss after adding two or more extenders.
Specifications
| Parameter | Description |
| Key Features | Expand 100M with one PoE extender |
| Lighting Protection | |
| IP67 outdoor use | |
| Wide temperature at -40℃ to 65℃ even up to 85℃ | |
| No local power is needed | |
| Gigabit data rates | |
| Part Number | PT-PEX01G-OT |
| Ports condition | PoE In Port*1, PoE Out Port*1 |
| Regulatory Compliance | RoHS Compliance |
| WEEE Compliance | |
| Pass Through Data Rates | 10/100/1000 Mbps |
| Input & Output | Pin Assignment and Polarity: |
| 4/5 (+), 7/8 (–) and 3/6(+),1/2(-) | |
| Operating Voltage :44-57Vdc, (Max 60Vdc) | |
| Maximum Operating DC Current :1.1A for 4 pairs, | |
| Maximum 60W | |
| Working Environment | Operating Temperature: -40℃ to 65℃ |
| Operating Humidity: 20% to 80%, non-condensation | |
| Storage Temperature: -40℃ to 85℃ | |
| Storage Humidity: 10% to 95%, non-condensation | |
| Operating Altitude: up to 5000meters | |
| PoE Surge Protection | Protected Line: 1,2,3,4,5,6,7,8 |
| Common Mode Protection Level(10/700us): 6KV | |
| Differential Mode Protection Level(10/700us): 1.5KV | |
| Clamping Voltage(Line to GND): 300V | |
| Clamping Voltage(Line to Line): 10V | |
| Insertion Loss @10MHz/100MHz: -1db | |
| Return Loss @10MHz/100MHz: -20db | |
| Response Time: 5ns | |
| Mechanical Characteristics | Case: Aluminium alloy |
| Color: White | |
| Mounting: Wall-mounted | |
| IP Rated: IP67 | |
| Connectors: Shielded RJ-45 | |
| Size: 209mm X 53mm X 37.5mm | |
| Weight: 410g（0.9lb） | |
| Safety Approvals | CE, FCC |
Install Video
Standing Stock
| Product Order Info.(Model) | PT-PEX01G-OT |
| Stock Quantity | 100PCS |
| Warehouse Location | Dongguan China |
| Sample Delivery Time | Within 24H |
| Bulk Stock Delivery Time | Within 48H |
| Shipping Way | DHL,UPS,FedEx,TNT, By SEA/AIR Customer Nominated Forwarder |
| Packing Size | Qty: 20pcs/carton G.W.: 16Kgs Volume: 0.06 m³ Packing: Export Carton Pallet size: 110 x 110cm |
